WonderTrack- Sensor Light Camera

Product catalog summary

Overview: The DCL-400 is a multifunctional security sensor light camera designed for both security and amenity applications. It features adjustable sensor and light sections, weatherproof construction, and the ability to link with external sensors for enhanced functionality.

Specifications: The DCL-400 operates on a 220~240V AC power supply with a maximum current draw of 90W. It supports a video signal format of PAL with a resolution of 330 TV lines. The camera uses a 1/4" Colour CCD image sensor with a focal length of 3.0 mm and an angle of view of 65° x 48°. The unit is IP54 rated for outdoor use and can operate in temperatures ranging from -10°C to +50°C.

Features:

Adjustable Angles: The sensor camera section can be adjusted Right-Left ±85° and Up-Down 0°~-55°, while the light section can be adjusted Right-Left ±85° and Up-Down 10°~-60°.
Detection and Camera Alignment: The detection area and camera view are preset for perfect alignment, facilitating easy installation.
Configuration and Control: Front configuration switches allow for easy settings adjustments. The light can be controlled separately via an external switch.
External Sensor Integration: The unit can be linked with an external sensor to expand the detection area or reduce false alarms.
Weatherproof Design: The IP54 rating ensures the unit is suitable for outdoor use.

Installation and Operation: The DCL-400 is designed for outdoor installation with dimensions of 300 x 100 x 300 mm and a weight of approximately 1400 g. It includes a mini-halogen bulb with a power rating of 75W or less. The unit supports passive infrared detection with a maximum coverage area of 5m long and 60° wide.

Environmental Considerations: The document emphasizes the use of recycled paper for the catalogue, highlighting the company's commitment to environmental care.

Catalog excerpts

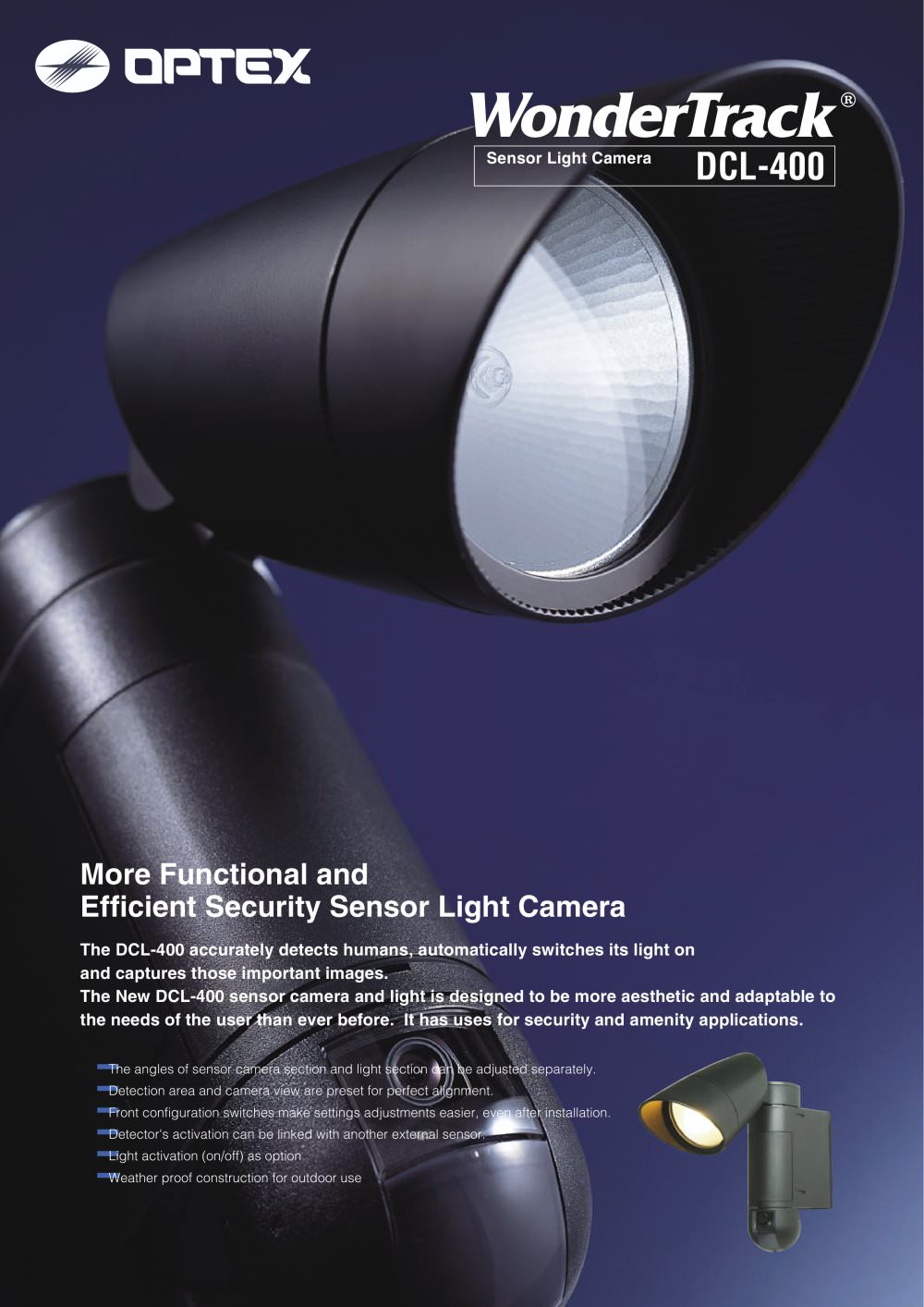

The angles of sensor camera section and light section can be adjusted separately.Detection area and camera view are preset for perfect alignment.Front configuration switches make settings adjustments easier, even after installation. Detector's activation can be linked with another external sensor.Light activation (on/off) as optionWeather proof construction for outdoor use >

Open the catalog to page 1

Model * In conjunction with an external sensor, [AND] or [OR] operation can be selected. DCL-400CP-W220~240V AC Power SupplyCurrent DrawFrequency External Sensor Input External Sensor OutputAlarm OutputOperating Temperature Range Environment Humidity IP RatingInstallation SiteDimensions (H x W x D)WeightImage Sensor Video SignalScanning MethodResolution Focal Length Angle of ViewEffective PixelsSensitivity Video Signal Format Synchronization MethodDetection MethodCoverage Detection Area Detection Speed Sensitivity AdjustmentWarm-up PeriodAdjustment Range Photocell Adjustment Lighting Period,...

Open the catalog to page 2
