OPTEX Redwatch Mulit

OPTEX Redwatch Mulit
1 / 4Pages

Catalog excerpts

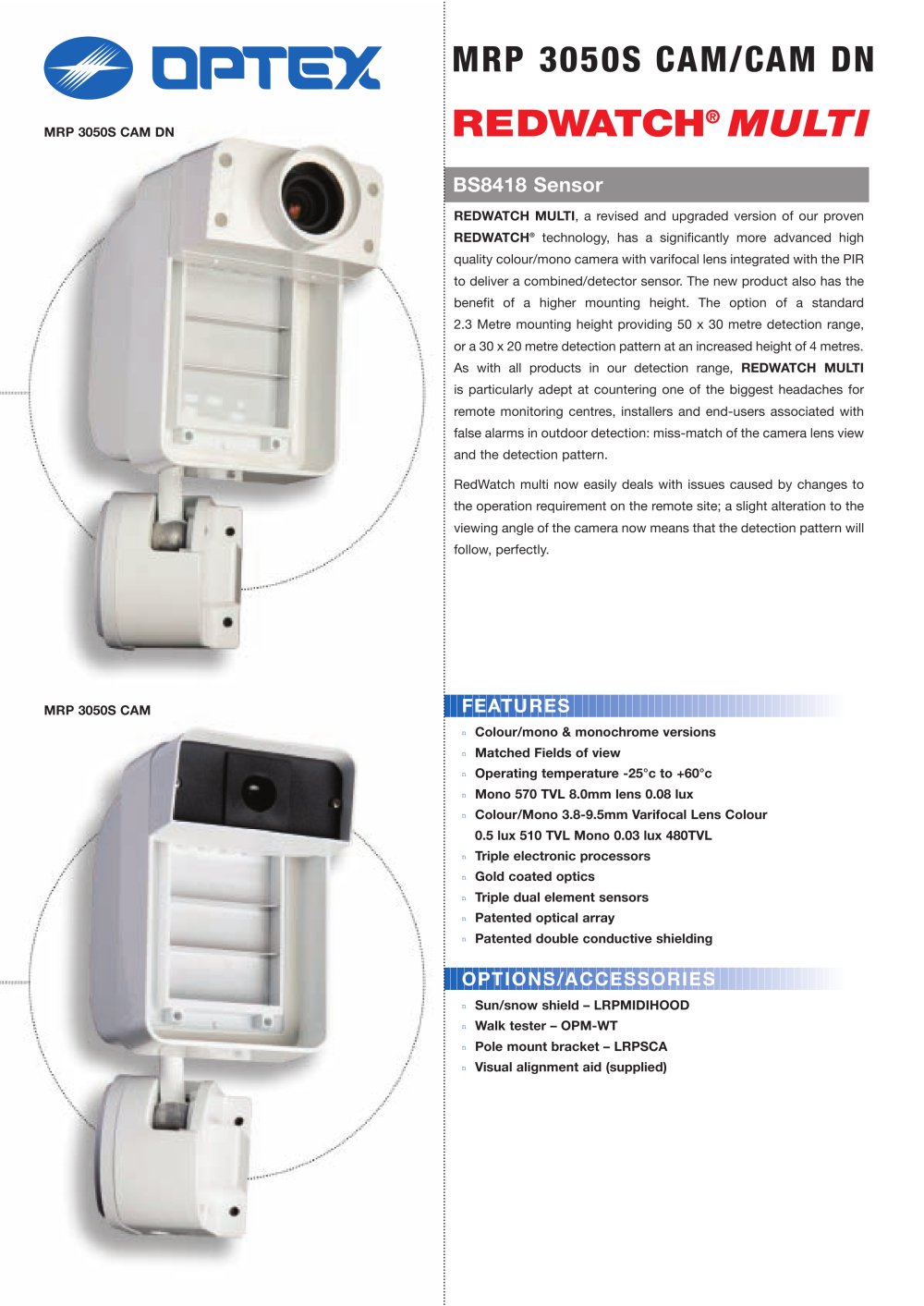

REDWATCH MULTI ,arevised and upgraded version of our proven REDWATCH > ή technology, has a significantly more advanced highquality colour/mono camera with varifocal lens integrated with the PIRtodeliver a combined/detector sensor. The new product also has thebenefit of a higher mounting height. The option of a standard 2.3 Metre mounting height providing 50 x 30 metre detection range, ora30 x 20 metre detection pattern at an increased height of 4 metres.Aswith all products in our detection range, REDWATCH MULTI is particularly adept at countering one of the biggest headaches forremote monitoring centres, installers and end-users associated with false alarms in outdoor detection: miss-match of the camera lens viewand the detection pattern.RedWatch multi now easily deals with issues caused by changes to the operation requirement on the remote site; a slight alteration to theviewing angle of the camera now means that the detection pattern willfollow,perfectly. > n Colour/mono & monochrome versions > n Matched Fields of view > n Operating temperature -25c to +60аc > n Mono 570 TVL 8.0mm lens 0.08 lux > n Colour/Mono 3.8-9.5mm Varifocal Lens Colour 0.5 lux 510 TVL Mono 0.03 lux 480TVL > n Triple electronic processors > n Gold coated optics > n Triple dual element sensors > n Patented optical array > n Patented double conductive shielding > n Sun/snow shield LRPMIDIHOOD > n Walk tester ֖ OPM-WT > n Pole mount bracket LRPSCA > n Visual alignment aid (supplied) >

Open the catalog to page 1

Coverage at 4 Mtrs MRP 3050S CAM Mounting Height 4 MtrsCameraPIR > 42051015202530 MRP 3050S CAM DN Mounting Height 4 MtrsCameraPIR > 42051015202530 size="-1">

Open the catalog to page 2

Coverage at 2.3 Mtrs MRP 3050S CAM Mounting Height 2.3 MtrsCameraPIR > 101520253035404550052.3 MRP 3050S CAM DN Mounting Height 2.3 MtrsCameraPIR > 101520253035404550052.3 size="-1">

Open the catalog to page 3

Power Input10.2-13.8VDCCurrent Draw160mA (max)220mA(max)Detection Method passive inferred patented Tri-channel systemRange50m x 30m (150 x 100Ғ at 2.3m (76) mounting height30m x 20m (100Ғ x 65) at 4 m (13Ғ) mounting heightDetection Zones78Zones (39 pairs)Mounting height2.3m(76) Җ 4m (13)Alarm periodApprox. 2 secAlarm outputForm 1C relay 30VDC/1A (Max)Tamper outputN.C opens when cover,head removed 28VDC 10mA (Max) Warm-up PeriodApprox 60 Secs (LEDҒs blinking during warm up period)Walk test indicationvisual: LED x 3 Audio: Optional Audio walk tester available (OPM-WT).Recommended.Operating...
