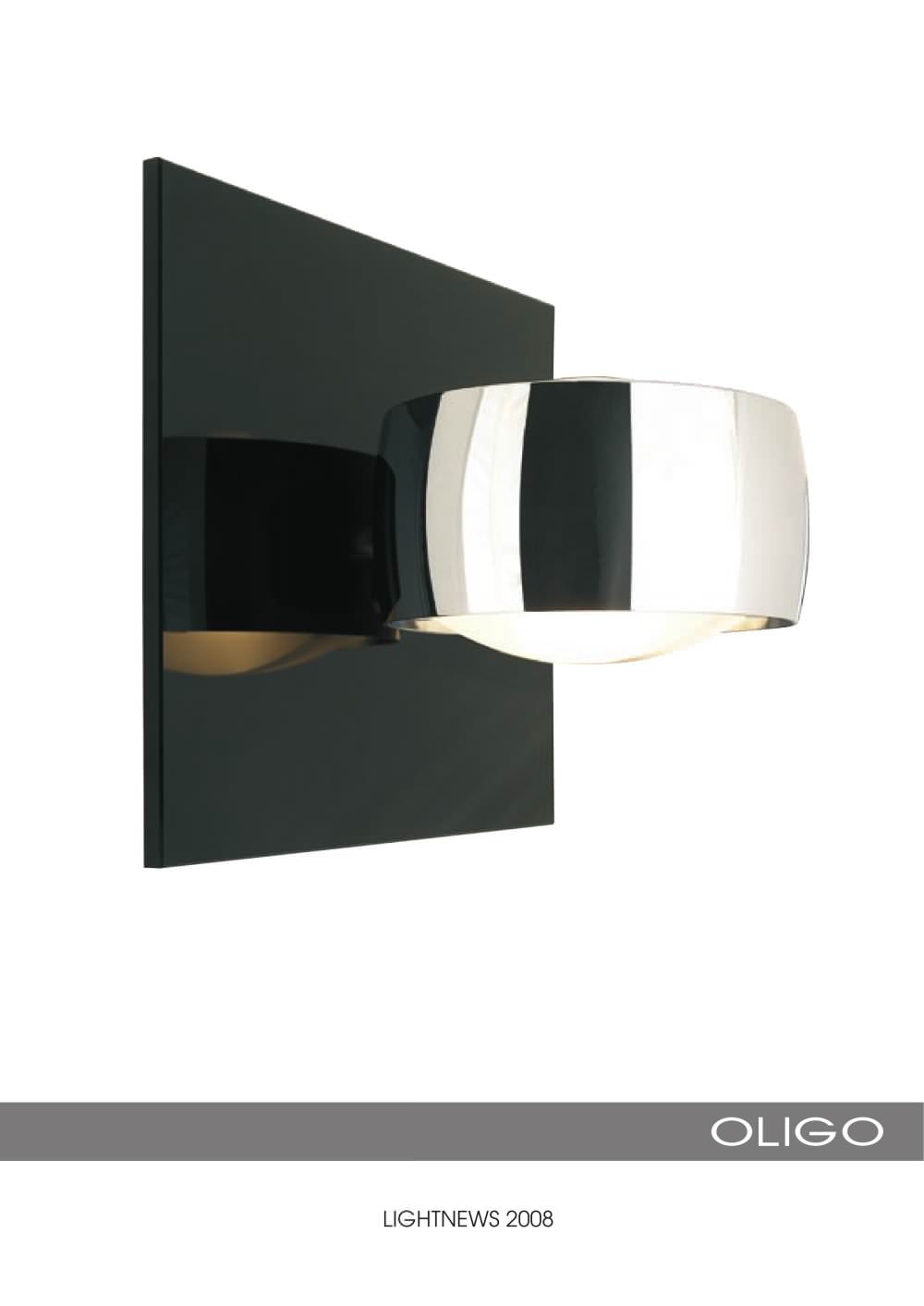

OLIGO Light News 2008
OLIGO Light News 2008
1. GRACE UNLIMITED: A modular lighting system with five combinable elements, offering customizable illumination and color design. It includes three basic luminous fixtures, six glass panel colors, five top surface options, and various glass shades and accessories. Lamps are included and dimmable.
2. CAFÉ: Height-adjustable pendant luminaire with a touch dimmer, featuring a brushed aluminum transformer housing with a polished black glass cover. Lamps are included.
3. PROJECT: Wall luminaire with up/down lighting, featuring an aluminum body with different surface finishes. Lamp included.
4. LOUNGE: Height-adjustable pendant luminaire with a touch dimmer, compatible with the 12V track system READY FOR TAKE OFF. Maximum load is 140W.
5. GATE B Series: Compatible with 12V and 230V track systems, offering various configurations and finishes.
Procedures and Recommendations:
- For the GRACE UNLIMITED series, optional light formers and effect discs can be inserted between the top and glass bowl.
- The CAFÉ and LOUNGE series include lamps and are height adjustable with touch dimmers.
- The GATE B series requires separate ordering of adapters and transformers for compatibility with track systems.
Norms and Standards:
- All products operate on 230V / 50-60Hz with various socket types and maximum wattage specifications.
- Products are compatible with OLIGO track systems and require adherence to specified electrical load limits.
Additional Information:
- For further details, refer to the OLIGO main catalogue as specified for each product series.
- Contact OLIGO Lichttechnik GmbH for marketing and reference inquiries.
Catalog excerpts
ist eine Erweiterung der bereits erhltlichen Wand- und Pendelleuchten der Serie GRACE. Das modulare Konzept ermglicht eine individuelle Licht- und Farbgestaltung: es stehen drei licht- technisch unterschiedliche Grundk䶶rper (Basis), sechs farbige Glasplatten, fnf Oberflchen des Leuchtenkopfes sowie verschiedene Glasschalen und Zubeh줶r zur Verfgung. is an extension of our available GRACE pendant- and wall luminaires serial. Its modular concept allows an individual characterised design of illumination and colour: Three different basic luminous fixtures (Base), six colours of glass panels, five...
Open the catalog to page 3
230V / G 9 / QT 14 max. 75W Glas schwarz glnzend Oberfche Korpus Wandleuchte, Up-/DownlightKeine sichtbaren Befestigungselemente Korpus aus Aluminium in unterschiedlichen Oberfl䤤chen Inklusive Lampe > 11 Glossy black glass Body surface 511-2230010-03 Aluminium poliert / Aluminium polished > 511-2230005-03 Aluminium gebrstet / Aluminium brushed > 70 11 511-2230008-03 Silber matt / Matt silver 511-2230007-03 Gold / Gold Wall luminaire, up/down No visible mounting parts Aluminium body, available in different surfaces Lamp included > 14
Open the catalog to page 5
T O R U E C H - D I M M GATE B NINEGATE B ONE + GATE B TUBE > 230V / 50-60Hz / 12V / 35-150VA Hhenverstellbare Pendelleuchte mit Berhrungsdimmer Trafogeh漤use chrom glnzend oder silber matt mit schwarzer Glasabdeckung, hochglnzend Kombinierbar mit separat zu bestellenden Strahlern des 12V Schienensystems READY FOR TAKE OFF Maximale Belastung 140W, z.B. 4x 35W Weitere Informationen siehe OLIGO Hauptkatalog 52-3030005 Chrom / Chrome 52-3030008 Silber matt / > 150 x 1 50 Matt silver 191 > max. 1700 Height adjustable pendant luminaire with touch dimmer Housing of transformer in brushed aluminium with...
Open the catalog to page 7
12V / GY 6,35 / QT-LP 12/m max. 50W Chrom / Silber matt / Chrome Matt silver Kompatibel mit 12V Steckkontaktsystem PLUG-IN Transformator bzw. Adapter bitte separat bestellen Weitere Informationen siehe OLIGO Hauptkatalog 141-2260005-01 141-2260008-01 Wei / White 46 > 2000 141-2260008-12 Transparent / Transparent > 5 141-2260005-32 141-2260008-32 Ananas / Pineapple Compatible with 12V PLUG-IN system Please order transformer resp. adapter separately For further information refer to the OLIGO main catalogue > 12 141-2260008-35 Melon / Melon > ߘ 1 4 5 141-2260005-03 Schwarz / Black 46 > 230V / 50-60Hz...
Open the catalog to page 8
230V / G 9 / QT-14/m max. 60W 230V / G 9 / QT-14/m max. 60W Chrom / Chrome CHECK-IN PHASE Chrom / Chrome 521-2280005-01 Wei / White 101-2280005-01 201-2280005-01 Weiߟ / White 521-2280005-32 Ananas / Pineapple 101-2280005-32 201-2280005-32 Ananas / Pineapple 521-2280005-03 Schwarz / Black 101-2280005-03 201-2280005-03 Schwarz / Black EinzelpendelleuchteInklusive Lampe Weitere Informationen siehe OLIGO Hauptkatalog Kompatibel mit 230V Schienensystem CHECK-IN bzw. PHASE, Inklusive Adapter Weitere Informationen siehe OLIGO Hauptkatalog 451 115 bzw. 158 Single pendant luminaire Lamp included For further...
Open the catalog to page 9
230V / 50-60Hz / 12V1x 50VA 2x 50VA Korpus / Body 15-1110012 15-1110112 Aluminium gebrstet / Aluminium brushed > 44 5 15-1110008 15-1110108 Silber matt / Matt silver > 150 x 15 15-1110005 15-1110105 Chrom / Chrome Transformer for PLUG-IN system Free combination of body and glass panel Chain wiring option For further information refer to the OLIGO main catalogue 1x 50VA 2x 50VA Glasplatte / Glass panel 5 30-1120000-01 30-1120100-01 Optic white30-1120000-38 30-1120100-38 Optic satine 30-1120000-03 30-1120100-03 Optic black Anbautrafo f쩼r Steckkontakt-System PLUG-INKorpus und Glasplatte frei kombinierbar...
Open the catalog to page 10
230V / GZ 10 / QPAR 51 max. 50W 10-2980005 Chrome / Chrome 10-2980008 Silber matt / Matt silver > 115 Kompatibel mit 230V-Schienensystem CHECK-IN Weitere Informationen siehe OLIGO Hauptkatalog > 60 115 Compatible with 230V track system CHECK-IN For further information refer to the OLIGO main catalogue 115 > 12V / GU 5,3 / QR-CBC 51 max. 35W 12V / GU 5,3 / 2x QR-CBC 51 max. 35W 181-2980005 Chrom / Chrome 181-2980105 Chrom / Chrome > 40 181-2980008 Silber matt / Matt silver > 1 80 181-2980108 Silber matt / Matt silver > ؘ 6 Kompatibel mit 12V-Schienensystem READY FOR TAKE OFF Weitere Informationen...
