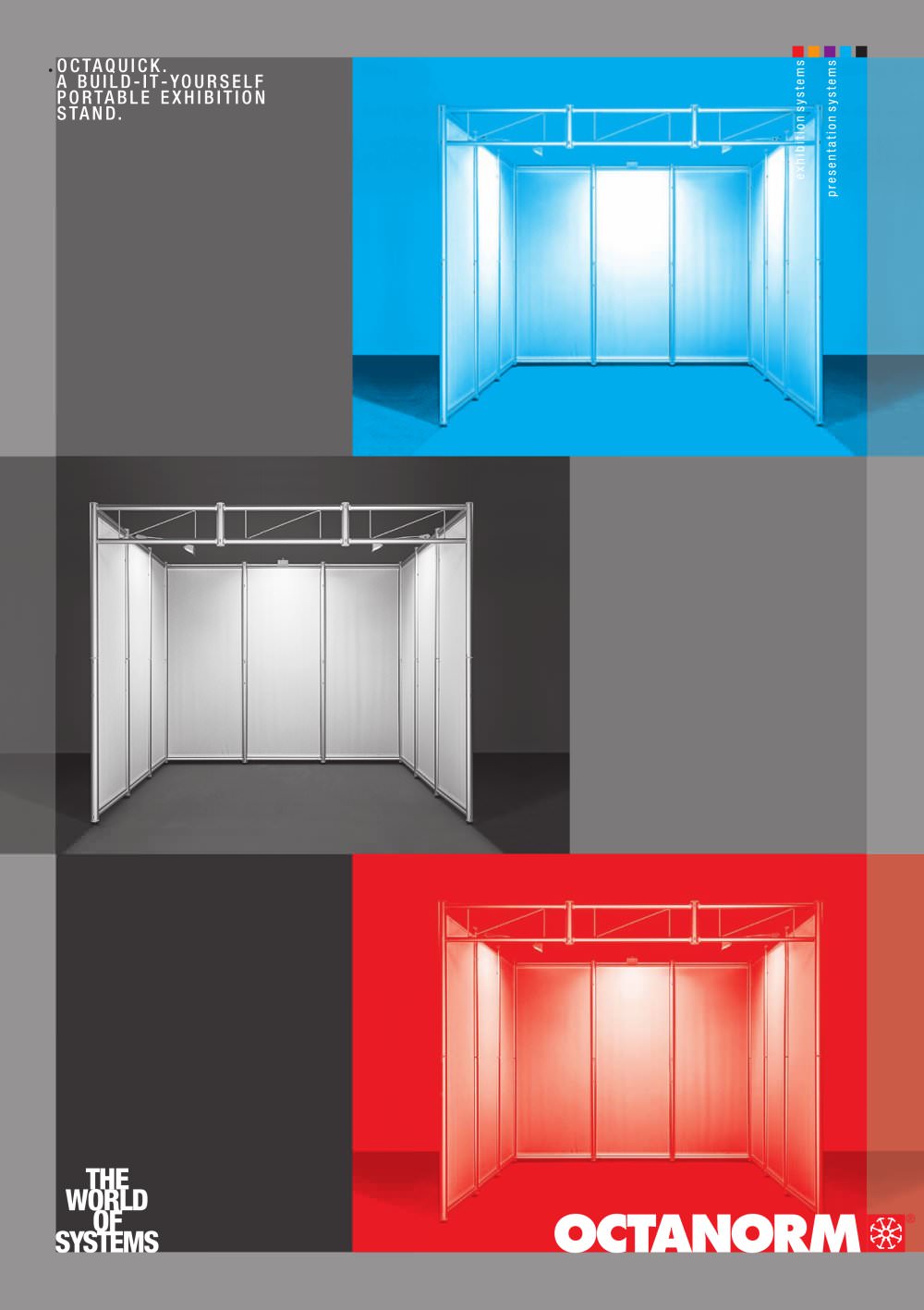

OCTAQUICK. A BUILD-IT-YOURSELF PORTABLE EXHIBITION STAND.
17Pages

OCTAQUICK. EXHIBITING HAS NEVER BEEN EASIEROR MORE COST-EFFECTIVE > 2 size="-1">

Example types: Q 40, Q 41 Sturdy transport caseEasy and precise assembly Trusted OCTANORM tension lock joint Trusted OCTANORM tension lock joint 4 >

A full 9 square metres of exhibition spaceconstructed in minutes from components trans- ported in 2 carry cases in the back of your estate car thatִs the OCTAquick 3x3۫ module. Beams and poles fit together quickly and simply - the secret is the OCTANORM joint with its easy to use tension lock. Print your graphics onto fabric banners that are suspended from the beams by means of clips. Alternatively, use solid infill panels, which can also be fitted into the beams. Components, including three 150-watt spotlights and a power cable, are positioned in the carry case, whilst the case itself has...

Example types: Q 30, Q 32 Q 370 spotlight Shelf set Q 80Wall infill panels 6 >

Example types: Q 20, Q 21 Suspension of wire ropeposter frame set Q 90 Panel fixing Q 91 Truss beam design 8 >

2500 Where exhibition space is at a premium, theOCTAquick 3x1۫ module enables effective displays to be mounted in the most compact area. The assembled components create 3 square metres of useable exhibition space. For companies operating on a divisional basis or where topical information needs to be frequently updated, printed fabric banners can be used to form a constant background with framed graphic panels employed to present current information. All metalwork components, including three 150-watt spotlights, are housed in two carry cases ready for quick and easy erection. Accessories...

Example types: Q 10, Q 12 Literature holder set Q 81Stylish round profiles Separately installable lightingStylish round profilesLiterature holder set Q 81Separately installable lighting 10 >

1175 2310 1175 920 917 3980 3000 3980 3000 Q 40+Q 41(already available) Q 40+Q 42(already available) Q 50 1x3 Extension setincl. transport case Q 502 and lighting weight: 55,12 lb/25.0 kg Q 50 1x3 Extension setincl. transport case Q 502 and lighting weight: 121.25 lb/25.0 kg Q 51 Wall infill panel set fabricӔ, white,with inserted mounting profile weight: 2.87 lb/1.3 kg Q 52 Wall infill panel set woodӔ, white, 3.2 mm incl. 1 beam and wooden case weight: 17.64 lb/8.0 kg > 1175 2310 920 917 1175 4960 4960 920 3000 917 3000 Q 40+Q 41(already available) Q 40+Q 42(already available) 2x Q 50 1x3...

425 325 180 1375 1375 1260 960 385 385 Q 99 Assembly tool set incl. in all construction sets weight: 0.55 lb/0.25 kg Q 501 Transport case for beams and accessories incl. in the corresponding sets weight: 27.34 lb/12.4 kg Q 502 Transport case for uprights and accessories incl. in the corresponding sets weight: 23.15 lb/10.5 kg Q 503 Transport case for 3.2 mm wood wall panels and accessories incl. in wall infill panel set Q 42 weight: 33.51 lb/15.2 kg > 1159 919 Q 370 Spotlight 150 W/230 V incl. in all construction sets weight: 1.98 lb/0.9 kg Q 316 Protecting profile for 3.2 mm thick panels...
