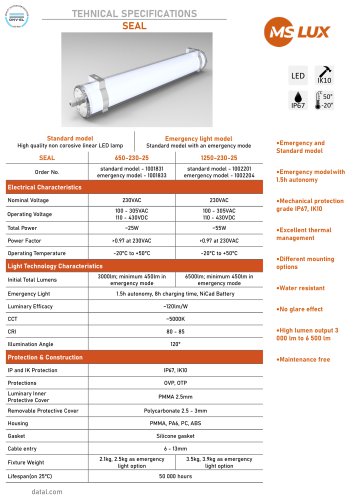

• Product Models: SEAL 650 and SEAL 1250, available in standard and emergency models.
• Mechanical Protection: IP67 and IK10 ratings ensure water resistance and mechanical durability.
• Thermal Management: Excellent thermal management for optimal performance.
• Mounting Options: Various mounting options available, including magnetic and chain suspension.
• Light Output: High lumen output ranging from 3000 lm to 6500 lm, with no glare effect.
• Maintenance: Maintenance-free design.

• Nominal Voltage: 230VAC with operating voltage range of 100 - 305VAC and 110 - 430VDC.
• Total Power: Approximately 25W for SEAL 650 and 55W for SEAL 1250.
• Power Factor: Greater than 0.97 at 230VAC.
• Operating Temperature: -20°C to +50°C.

• Initial Total Lumens: 3000lm for SEAL 650 and 6500lm for SEAL 1250, with a minimum of 450lm in emergency mode.
• Emergency Light: 1.5 hours autonomy with 8 hours charging time, powered by NiCad Battery.
• Luminary Efficacy: Approximately 120lm/W.
• CCT: ~5000K.
• CRI: 80 - 85.
• Illumination Angle: 120°.

• IP and IK Protection: IP67, IK10.
• Protections: Over Voltage Protection (OVP), Over Temperature Protection (OTP).
• Materials: PMMA, PA6, PC, ABS with silicone gasket.
• Fixture Weight: 2.1kg for standard, 2.5kg for emergency SEAL 650; 3.5kg for standard, 3.9kg for emergency SEAL 1250.
• Lifespan: 50,000 hours at 25°C.

• Dimensions: SEAL 650 - 650mm length, SEAL 1250 - 1250mm length.
• Mounting Accessories: Includes protective covers, various mounting brackets, and custom-made options.

Data Link Ltd., Bjelovar, Croatia. Phone: +385 (0)43 211 111, Email: [email protected]

The project is co-financed by the European Union from the European Regional Development Fund.
