WasteStar CC

Product catalog summary

Electrical Installation:
The WasteStar CC requires a three-phase electrical connection (3 NPE, 400 V, 50/60 Hz) with a power rating of 2.45 kW and a nominal current of 5.9 A. A permanent on-site mains connection with a main red/yellow emergency-off switch is necessary.

Technical Data:

Capacity: Approximately 30 liters
Processing/Conveying Volume: Approximately 3 liters per minute
Collection Tank Storage Volume: From 600 liters
Maximum Conveyor Line Length: 50 meters
Maximum Conveyor Line Height Difference: 6 meters
Weight: Empty - approximately 115 kg; Full - approximately 160 kg
Floor Load per Leg: Approximately 40 kg

Additional Information:
The WasteStar CC includes an inspection drain of 1½˝ and a connection of 2˝ / DN 50 at a height of 429 mm. Specifications are subject to change as part of product improvement processes.

Catalog excerpts

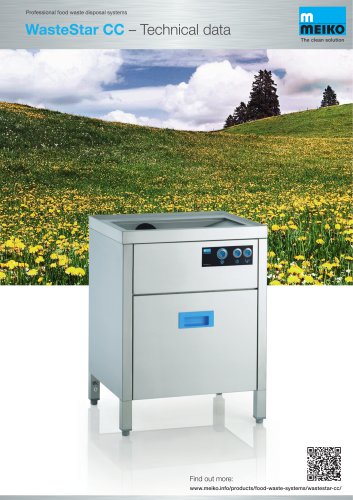

Professional food waste disposal systems EHWasteStar CC - Technical data fflElKO The clean solution

Open the catalog to page 1

Professional food waste disposal systems _■ WWasteStar CC - Technical data mElKO The clean solution Technical data Electrical installation: Electrical connection: © three phase 3 NPE, 400 V, 50/60 Hz. Power rating 2.45 kW, nominal current 5.9 A. Permanent on-site mains connection (main red/yellow emergency-off switch must be provided) C€ MEIKO Maschinenbau GmbH & Co. KG We reserve the right to amend specifications as part of our product improvement process.

Open the catalog to page 2
