Walkie Led 12 Fasci Ground

Product catalog summary

Overview: The document introduces the Walkie Led, a new line of signal lighting fixtures utilizing LED technology, designed for both outdoor and indoor use. These fixtures are part of the Martini product range and are intended to enhance architectural and urban settings with functional and accentuating lighting.

Specifications:

Available in stainless steel and grey varnished aluminium.
IP68 protection level for indoor and outdoor installation.
Lightweight drive-over capability for stainless steel versions.
Available in 1, 2, or 12 beam configurations.
LEDs embedded in resin for durability against atmospheric conditions.

Lighting Features:

High-intensity LEDs available in red, amber, green, white, and blue.
Adjustable light emissions suitable for signaling and furnishing.
Beam configurations include one beam, 180° two-beam, and twelve-beam emissions.

Control Gears:

Powered with 12V d.c., with stability ensured by an electronic circuit in the twelve-beam version.
Power consumption: under 1W for one and two-beam fixtures, 3.6W for twelve-beam fixtures.

Accessories:

Housing for concrete and extruded aluminium poles available in three heights (200 mm, 500 mm, 800 mm).
Electromagnetic and electronic control gears available with IP66 and IP40 protection respectively.

Material and Durability:

Stainless steel version supports a static load of 500 Kg and a maximum transit speed of 10 km/h, with IK10 impact protection.
Aluminium version supports a static load of 100 Kg with IK7 impact protection.

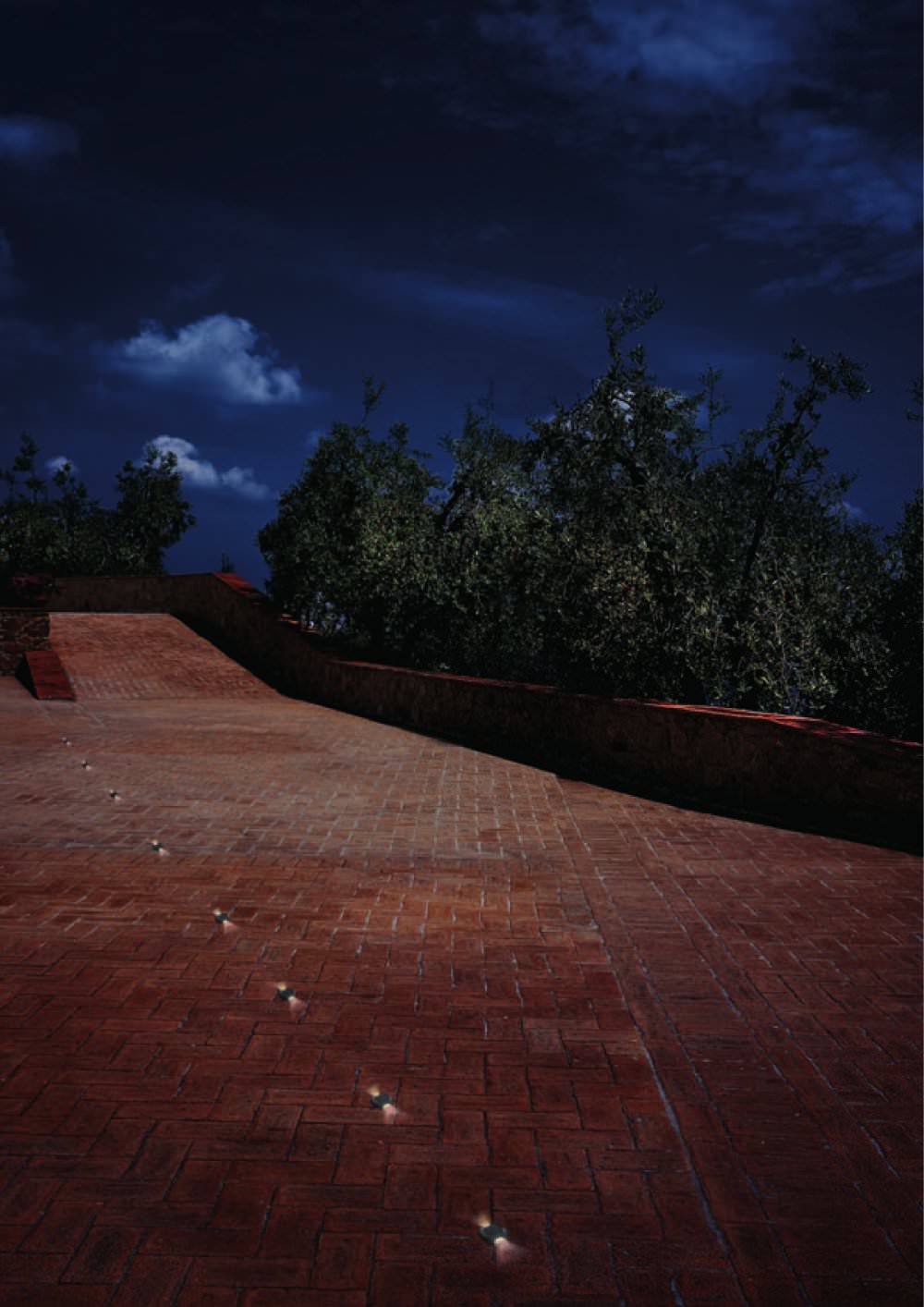

Applications: The Walkie Led system is versatile, suitable for enhancing pathways, architectural features, and providing functional lighting in urban environments. The system's adaptability is increased when mounted on poles.

Catalog excerpts

design: Martini Staff bodyDomes made entirely in > high intensity LEDs are usedin different colours; each window housing two LEDs. In the 12-beam version there is only the one LED. emissions metal (sandblasted stainless steel andgrey Adjustable light varnished aluminium IP68 protection level), they can be mounted on plaster-board or panel walls and on a solid wall (cement or brick) utilising the specific housing supplied as an accessory. The domes are secured with two screws supplied with the product. The stainless steel version, highly resistant to abrasion, can be driv- en over by lightweight...

Open the catalog to page 2

Simulation white LED 1W 12v d.c. > Kg. 0.2 fixture1 beam fixturefixture without control gearin stainless steel or grey varnished aluminium > 48.5Hole diameter blue LED 1W 12v d.c. fixture > Aluminium version :Static load green LED 1W 12v d.c. 100 Kg Protection against impacts IK = 7Steel version fixture > :Static load 500 Kg red LED 1W 12v d.c. Maximum transit speed 10 km/h fixture > Protection against impacts IK = 10 Aluminium version control gear > white LED 1W 12v d.c. > Kg. 0.2 fixture2 beam fixturefixture without control gearin stainless steel or grey varnished aluminium > 48.5Hole diameter...

Open the catalog to page 3

white LED 3.6W 12v d.c. > Kg. 0.2 fixture12-beam fixturefixture without control gearin stainless steel or grey varnished aluminium > control gear amber LED 3.6W 12v d.c. fixture > 48.5Hole diameter blue LED 3.6W 12v d.c. fixture > Aluminium version :Static load 100 Kg green LED 3.6W 12v d.c. Protection against impacts IK = 7steel version fixture > :Static load 500 Kg Maximum transit speed 10 km/h red LED 3.6W 12v d.c. Protection against impacts IK = 10 fixture > stainless steel glazed grey alumi-nium > electromagnetic controlgear IP66 230/12v d.c. 50W38920.00electronic control gearIP40 230/12v...
