Porfido Ground

Product catalog summary

Overview: The document provides detailed specifications and features of the Porfido lighting fixtures, designed for both indoor and outdoor use. These fixtures are suitable for lightweight drive-over applications and are made with high-resistance glass that mimics floor porfido.

Specifications: The Porfido fixtures have a long lifespan of 80,000 to 100,000 hours and can be mounted directly into masonry. They have an IP68 protection level and operate on a low supply voltage of 12Vdc, making them suitable for installation in fountains, streams, and ponds. The fixtures are equipped with an electronic circuit that ensures a stable light beam and are immune to voltage drops.

Features: The fixtures are maintenance-free, slip-proof, and available in various colors. They are designed by Pier Filippo Ferrari and have been recognized in the ADI DESIGN INDEX 2002. The fixtures can withstand a static load of 1,000 Kg and a maximum transit speed of 30 Km/h, with an impact protection rating of IK = 9.

Technical Details: The fixtures operate with a d.c. voltage and have inverse polarity protection. They are available in different LED colors (white, amber, blue, green, red) and have a power input of 3.6W. The fixtures are available in two sizes: 88x88x80 mm and 75x75x65 mm.

Installation and Accessories: The Porfido fixtures come with a connecting kit for easy waterproof electrical connections. They can be connected in parallel, with a 15W transformer powering up to 4 fixtures and a 50W transformer powering up to 14 fixtures. Accessories include electromagnetic and electronic control gears, poles of various heights, and anchor bolts for concrete mounting.

Additional Products: The document also describes the Porfido Paletto bollard signal lighting fixtures, available in dimensions of 88x88 mm and 75x75 mm, made from extruded aluminum and available in the same LED color options.

Catalog excerpts

design: Pier Filippo Ferrari ADI DESIGN INDEX Porfido has been selected for the 2002 competing for the Compasso dӒOro award Fixture for lightweight drive-over applications in high resistanceglass that simulates the completely embedded inresin to ensure total waterproofness. The neoprene cable lead- ing out can be buried with no problem.Aconnecting kit is supplied with a thermoshrinking sheath (withglue inside) for quick and easy waterproof electrical connections. floor porfido , suitable for indoors andoutdoors.Thanks to the considerably long life of the light source (80,000 -100,000 hours) it...

Open the catalog to page 2

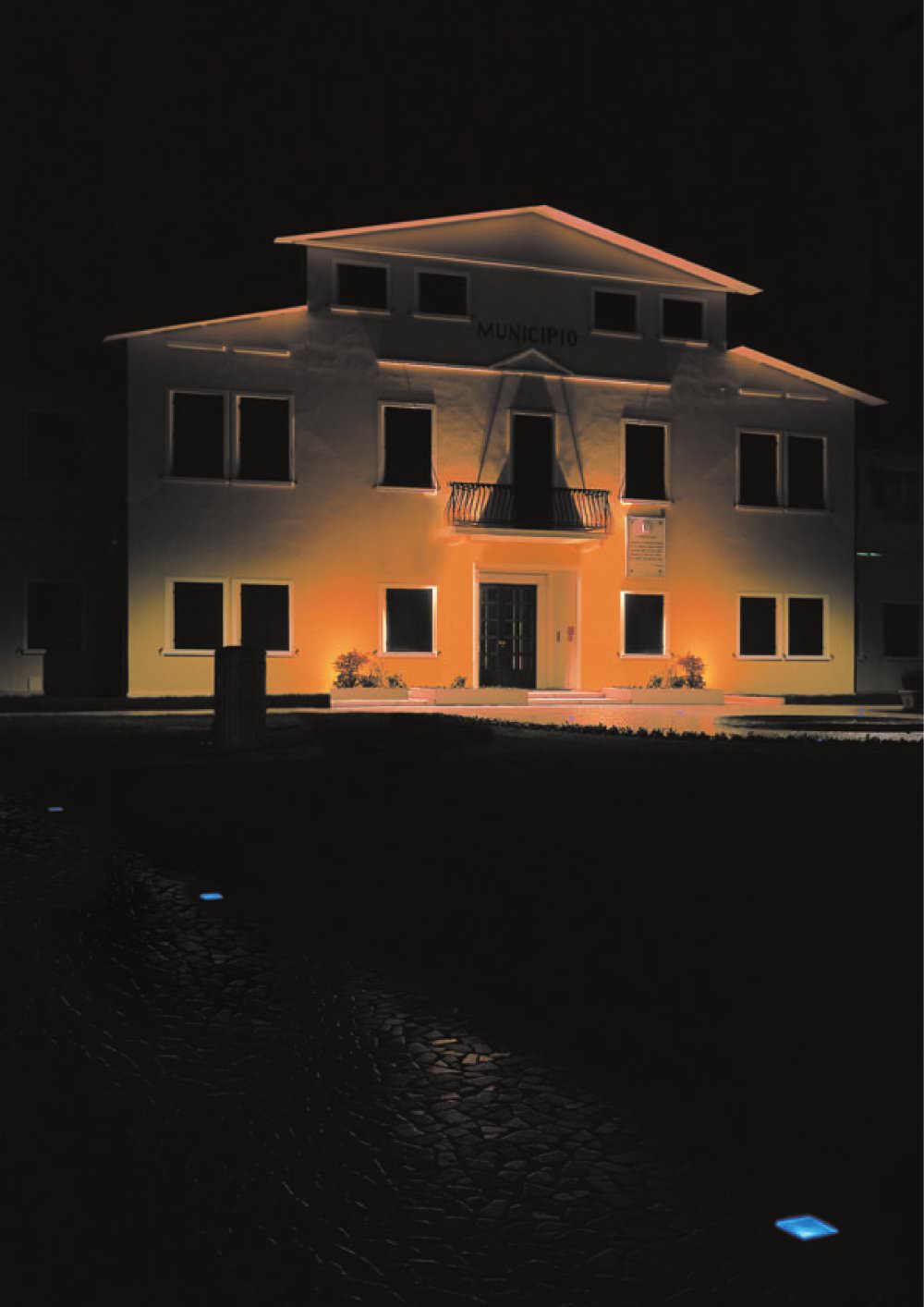

Thanks to the roughness of the extrathick tempered glass surface, thePorfido fixture simply disappears during the day, becoming one with the floor. 180 OUTDOOR FIXTURES AND STREET FITTINGS >

Open the catalog to page 3

white LED, 3.6W 915v d.c. > Kg. 0.7 fixturedrive-over recessed fixture 1000 Kgfixture without control gearavailable in five colours > 1,000 Kg Maximum transit speed 30 Km/h blue LED, 3.6W 9緷15v d.c. Protection against impacts IK = 9 fixturefixture without control gear > white Static load amber blue green red >

Open the catalog to page 4

white LED, 3.6W 915v d.c. > Kg. 0.5 fixturedrive-over recessed fixture 1,000 Kgfixture without control gearavailable in five colours > 1,000 Kg Maximum transit speed 30 Km/h blue LED, 3.6W 9緷15v d.c. Protection against impacts IK = 9 fixturefixture without control gear > control gear Static load > white amber blue green red >

Open the catalog to page 5

The top glass can be touched with noproblem; its temperature does not varywhen the fixture is switched on . The d.c. supply circuit inside the pro-duct guarantees a constant light beam regardless of the supply voltage that can range between 9 and 15 Volt d.c.The standard product cannot be connec-ted to dimmer systems; dimmerable fix- tures can be made on request however. >

Open the catalog to page 6

QT-9, 1x60W max G9 > Kg. fixturedimensions 88x88 mmmade in extruded aluminium > Pole available in 3 sizes,choose thecode on the accessories page . Protection against impacts IK = 9 white LED, 3.6W 915v d.c. > Kg. 1.0 fixture dimensions 88x88fixture without control gearmade in extruded aluminium > Pole available in 3 sizes,choose thecode on the accessories page . blue LED, 3.6W 9緷15v d.c. Protection against impacts IK = 9 fixture fixture without control gear > white amber blue green red >

Open the catalog to page 8

QT-9, 1x60W max G9 > Kg. fixturedimensions 75x75 mmmade in extruded aluminium > Pole available in 3 sizes,choose thecode on the accessories page . white LED, 3.6W 915v d.c. > Kg. 0.8 fixturedimensions 75x75fixture without control gearmade in extruded aluminium > Pole available in 3 sizes,choose thecode on the accessories page . blue LED, 3.6W 9緷15v d.c. fixturefixture without control gear Protection against impacts IK = 9 > white amber blue green red >

Open the catalog to page 9

electromagnetic control gear IP66230/12v d.c. 50W38920.00electronic control gear IP40230/12v d.c. 15W38919.00 > H pole for Porfido 88x8876406.68 h=50 mm76407.68 h=150 mm 76408.68 h=750 mm > H pole for Porfido 75x7576416.68 h=50 mm76417.68 h=150 mm 76418.68 h=750 mm Dimensions:130x40x30 mmDimensions:110x110x45 mmit can control up to 4Porfido fixturesit can control up to 14Porfido fixtures > stake for ground-based mounting.76409.00 Control gears for Porfido/Porfido Paletto LEDs Accessories only for Porfido Paletto kit of anchor bolts forconcrete76419.00 >
