Kono Recessed Luminaries:

Product catalog summary

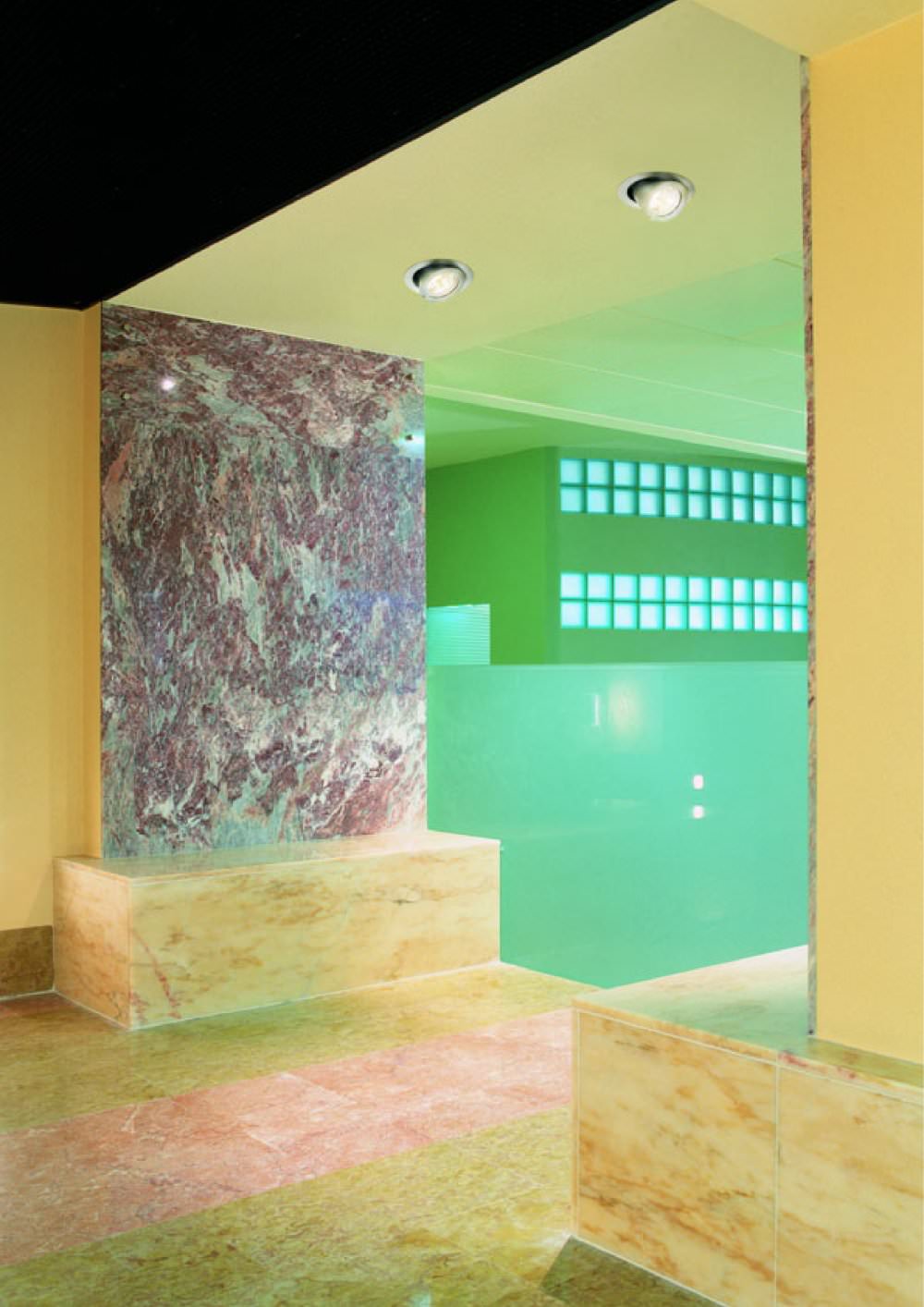

Overview: The document discusses the design and features of the Kono series of adjustable recessed lighting fixtures, emphasizing their flexibility, energy efficiency, and ease of installation. Designed by Luigi Trenti and implemented in projects like the Policlinico in Modena, Italy, these fixtures are suitable for various public spaces such as showrooms, shops, and hotels.

Design and Specifications: The Kono fixtures are made from die-cast aluminium, available in white or glazed finishes. They offer complete adjustability on both vertical and horizontal axes, allowing precise control of light beams. The fixtures support multiple lamp types, including AR111 halogen, metal halide, and high-pressure sodium lamps, with varying beam angles depending on the lamp choice.

Installation and Maintenance: Installation is simplified by a spring fastening system, allowing quick setup on false ceilings ranging from 1 to 15 mm thick. The fixtures include a quick coupling connector for easy maintenance and replacement. A black silicone comb seal prevents direct vision into the false ceiling, maintaining aesthetic integrity.

Control Gears and Accessories: The fixtures require separate control gears, with options for electromagnetic and electronic versions depending on the lamp type. The document lists specific control gear models for different wattages and lamp types. No additional accessories are mentioned.

Photometric Data: The document references photometric data for various fixture models, indicating their light distribution characteristics, which are detailed further on page 504.

Catalog excerpts

Designing space with light, show-rooms guiding and , controlling shops , hotels the beamof light inside each room has become an aspect of paramount importance in fitting out andother public premises .The complete adjustability of this fixture that helps us keepenergy consumption down and avoids wasting the diffusion of the light, is achieved thanks to a flexible movement of the fix- ture on the two axes (vertical and horizontal).The extremely rigorous design of the die-cast body, the superpure aluminium optics, the use of ceramic glass, the possi-bility of choosing out of 4 different types of...

Open the catalog to page 2

bodyRecessed fixture made entirely in die-cast aluminium paintedwhite or glazed aluminium. Because this fixture can be turned amply both vertically and horizontally, the beam of light is totallyadjustable . The control gear is supplied separately and a quick coupling con- nector permits fast maintenance or replacing.It is extremely easy to install on a false ceiling thanks to the springfastening system.sources AR111 type halogen sources. Single socket metal halide lamps in the G12 version(35-70-150W) and the new BI-PIN miniaturised lamp with a G8.5 socket (35-70W). Available also with a WhiteSON...

Open the catalog to page 4

AR111, max 1x100W 12v fixture without transformer > Kg. 1.1 197Hole for plasterboard MH, 1x35/70/150W G12 > Kg. narrow beam fixturerecessed fixture for ceiling or wall > 1.1 medium beam fixture > electromagnetic control gear 35W > electromagnetic control gear 70W > electromagnetic control gear 150W > electronic control gear 35W > electronic control gear 70W > electronic control gear 150W > 197Hole for plasterboard MH, 1x35/70W G8.5 narrow beam fixture > Kg. medium beam fixture Finish colour code glazed grey > 1.1 electromagnetic control gear 35W > electromagnetic control gear 70W > electronic...

Open the catalog to page 5

With the two harmonic steel springs assembly is quick and no tools are nee-ded. It can be installed on false ceilings from 1 to 15 mm thick. The special black silicone comb seal pre-vents direct vision inside the false ceiling.Kono can be adjusted in any positionwithout losing its characteristics of class and elegance. > below: Motorola assistance centre - Design by ZPZPARTNERS

Open the catalog to page 6
