Iper Ceiling

Product catalog summary

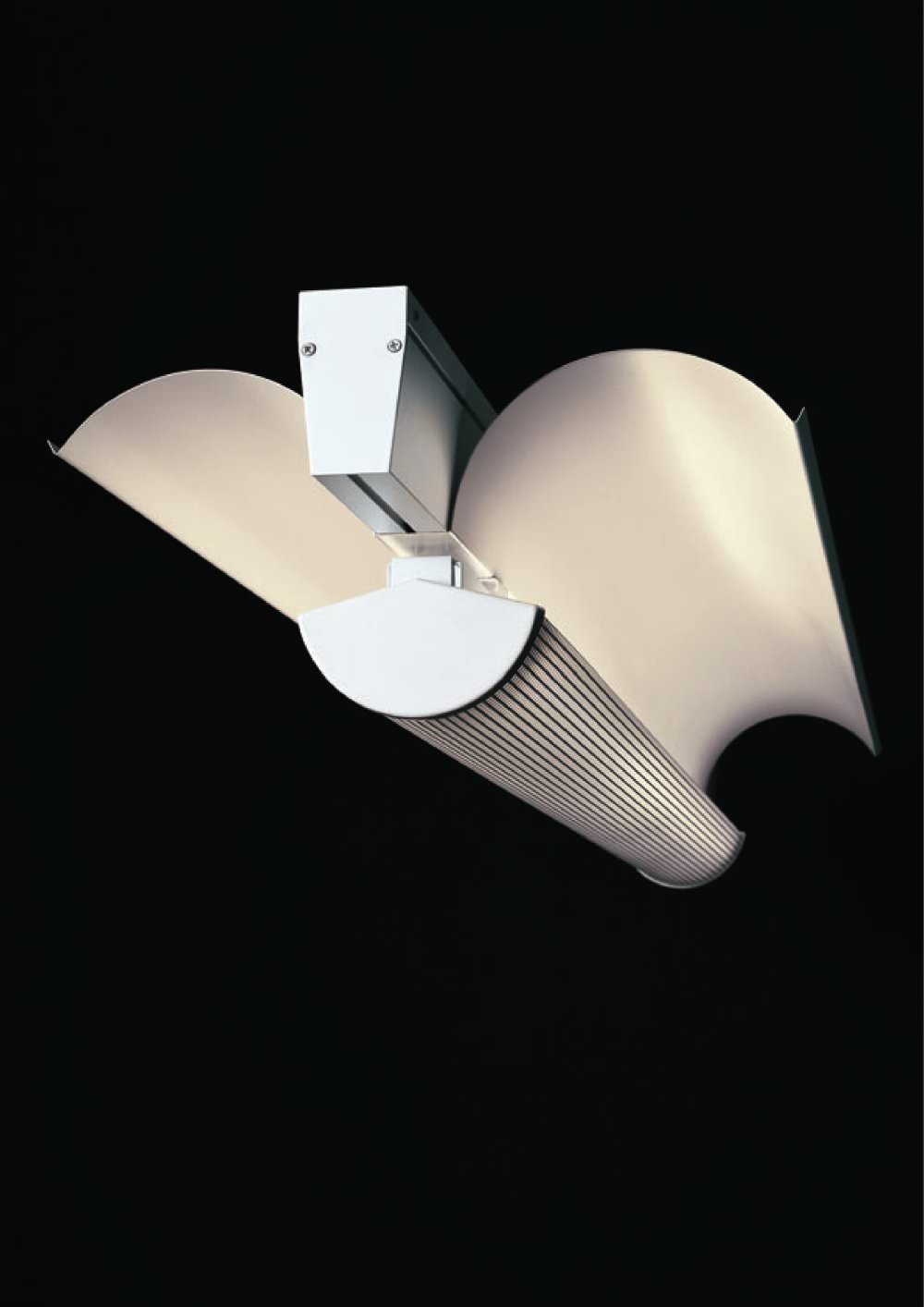

Overview of Iper Lighting System
Iper is a lighting system designed for large spaces such as shopping centers and supermarkets. It features a combination of reflected and direct lighting to provide high illumination levels without glare, even at heights over 5 meters.

Specifications

Uses fluorescent lamps with wattages of 18W, 36W, and 58W.
Constructed with a white varnished steel plate reflector and a polycarbonate diffuser.
Available in matte white finish.

Design and Construction

Central bearing beam with cable passage for pendant fixtures.
Body made of extruded silicon aluminum supported by stainless steel wires.
Steel parabolic reflector attached with sliding bolts.
Optics unit includes a steel structure with ABS heads and a polycarbonate diffuser.

Models and Dimensions

IP300BI: 2x18W, L = 700 mm
IP302BI: 2x36W, L = 1300 mm
IP304BI: 2x58W, L = 1600 mm
IP306BI: 4x18W, L = 700 mm
IP308BI: 4x36W, L = 1300 mm
IP310BI: 4x58W, L = 1600 mm

Accessories

Bearing bars with covers available in lengths of 1.9m, 2.9m, and 3.5m.
Suspension wire kits and connection boxes available.

Maintenance and Usability

Easy replacement of lamp units for quick maintenance.
Quick release connectors allow for fast replacement of damaged modules.

Photometric Data
The system provides detailed photometric data for each fixture model, ensuring optimal lighting design and implementation.

Catalog excerpts

design: Sames Staff bodyBar in > extruded silicon aluminium , supported by stainless steel wires complete with brackets. A steel structure with self-extinguishing ABS heads steel parabolic reflector is appliedto the bearing structure with sliding bolts. The optics unit consists of a that sustaina galvanised square hole mesh housing a 0.3 mm thick opalinepolycarbonate diffuser.sources26W linear fluorescent lamps ( T8 ).emissionsAsoft diffused light.control gears Electronic control gears in all models.coloursMatte white finish. ARCHITECTURAL PROGRAMME 485 >

Open the catalog to page 2

T8, 2x18W G13 electronic control gear steel plate bodymesh diffuser with screenin opaline polycarbonate > Kg. 7.1 L = 700 mm ; L1 = 648 mm fixture > T8, 2x36W G13 > Kg. electronic control gear > 14.2 L = 1300 mm ; L1 = 1258 mm fixture > T8, 2x58W G13 > Kg. electronic control gear > 17.7 L = 1600 mm ; L1 = 1558 mm fixture > T8, 4x18W G13 > Kg. electronic control gear > 7.5 L = 700 mm ; L1 = 648 mm fixture > T8, 4x36W G13 > Kg. electronic control gear > 14.6 L = 1300 mm ; L1 = 1258 mm fixture > T8, 4x58W G13 > Kg. electronic control gear > 18.1 L = 1600 mm ; L1 = 1558 mm fixture > bearing bar +...
