Bilico Ground

Product catalog summary

Overview: The document provides detailed specifications and options for the Bilico arm and pole system designed for outdoor and street lighting. It emphasizes the flexibility, design, and durability of the Bilico system, suitable for various urban settings.

Specifications:

Design: The Bilico arm is designed with a balance of rationality and expressive vitality, suitable for different town settings.
Materials: Made entirely of steel with an electroplated polyester powder paint finish for long-lasting resistance to atmospheric conditions.
Compatibility: Suitable for both tapered and conical poles, available in various lengths.
Lamp Options: Supports dual-socket metal halide lamps (70, 150, 250W) and high-pressure sodium lamps. A version with a halogen lamp is also available.
Optics: Offers symmetrical, asymmetrical, and sidewalk optics for metal halide and sodium lamps, with road optics for 70 and 150W metal halide lamps.
Control Gears: Includes an electromagnetic circuit with a power factor correction condenser for metal halide versions.
Color: Available in polyester glazed grey for outdoor use.

Poles:

Types: Available in tapered and conical versions, with various heights ranging from 4.0 m to 6.0 m.
Construction: 3 mm thick with a 60 mm diameter galvanized, painted attachment.
Foundation: Designed for normal load conditions and average geotechnical soil characteristics.
Features: Equipped with a terminal block with double fuse, hatch, and cap. Slot sizes vary based on pole height for junction box compatibility.
Customization: Other heights and flange fixing options available upon request.

Accessories: No additional accessories are specified.

Catalog excerpts

design: Barin, Facchinetti, Lazzeri, Zorzoli bodyBody made entirely in steel , electroplated with a polyester powderpaint finish to guarantee extremely long resistance to atmosphericagents. Available in various lengths with a conical or tapered struc- ture.sources Dual-socket halogen metal halide lamp, maximum 300W.Model with high pressure sodium lamps ( RX7s , Fc2 ), 70, 150 or250W. Also possible to install lamps in thesame body with the same electrical specifications. Version with road optics type D , 70 and 150W. > emissions Symmetrical , asymmetrical and sidewalk optics for metalhalide and...

Open the catalog to page 2

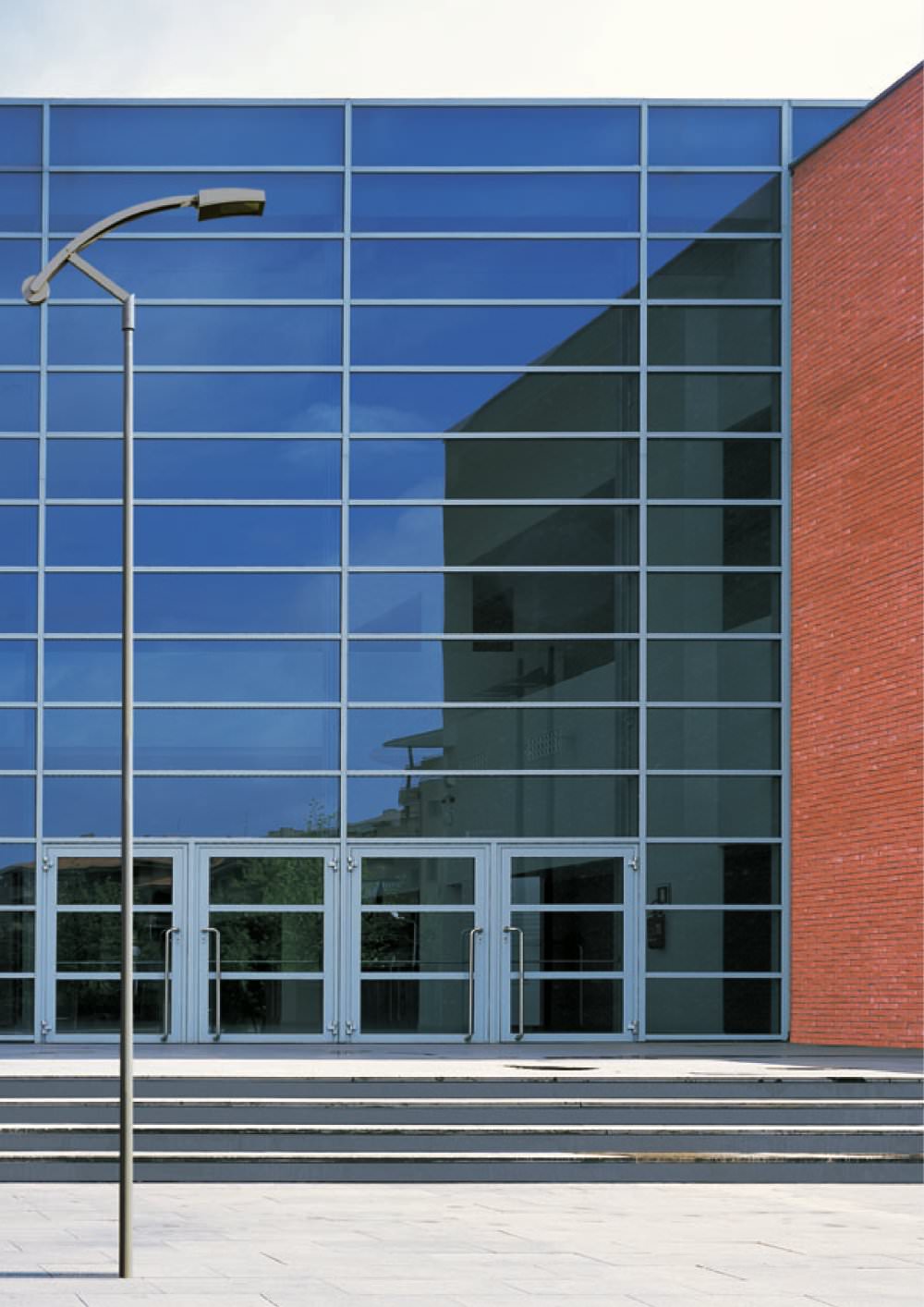

Bilico Pole pole pole for street fitting _____.__ > arm 76024.68 > Squadra fixturesee next page for codes _____.__ > The end of the arm , with a kind of structural counterweight, isundoubtedly an element whose design cannot be neglected in the overall view of the product. 48 OUTDOOR FIXTURES AND STREET FITTINGS >

Open the catalog to page 3

Bilico Ground
