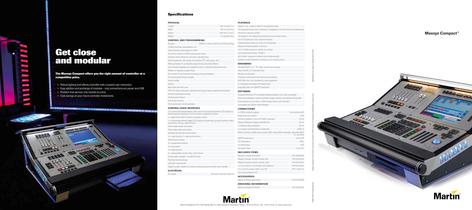

The Maxxyz Compact offers you the right amount of controller at a competitive price. • Robust lighting and effects controller with a superb user interaction • Easy addition and exchange of modules - only connections are power and USB • Problem-free service, one module at a time • Cost savings on your future controller investments CONTROLAND PROGRAMMING Protocol: DMX512, Artnet, (ACN and RDM pending] No limit to number of DMX channels per fixture Extensive fixture library for all known manufacturers 65000 presets for each group of functions (P/T, color, gobo, etc.] Effect generator for automated programming of complex effects Customizable Highlight and Lowlight function to identify individual fixtures Relative or absolute programming Fan function for all channels (including timing parameters] On-the-fly global timing changes Virtual cuelists Wait, follow and link cues HTP, LTP, chase, timecode, submaster and group master playback functionality Individual parameter timings Intuitive patch feature Fixture type cloning All channels with 16-bit resolution CONTROL/USER INTERFACE 10 X motorized playback faders, each with one dynamically labeled LCD button (to identify/activate playback] and two function-assignable buttons 4 X digital fader belts for fixture parameter control 10 X dynamically labeled digital LCD buttons for parameter groups, functions, effect parameters, fanning, global timings Grand master fader and button Flash master fader and button Trackball with pan/tilt control switch 16 X view buttons, 2 x view scroll buttons Blind/preview button 5 x customizable function keys, LCD buttons Customizable highlight / lowlight function Next/last fixtures/groups Left/right mouse button Digital encoder wheels for window scrolling and screen/desk lamp intensity Assign a cue, cuelist or effect to any playback fader 100 playback banks, each containing 10 playbacks, can all be active simultaneously No limit to cues per cuelists 100 pages of 100 playbacks activated by touch screen button Full 16-bit fading for high-resolution fixtures Individual fade in/fade out times for all playbacks Manual override available at all times Live 0-1000% override of global cue timings Live programmer timing ("Sneak"] Go-function (supports multiple cues simultaneously] Cuelists can be executed in tracking or non-tracking mode Industrial SVGA 12.1" TFT color monitor touch screen Internal SATA 2.5" hard disk drive Modular construction Industrial motherboard with Pentium M processor DVD-RW drive (not intended for movie playback] 2 x integrated dimmable LED desk lamps Integrated slide-out QWERTY keyboard Industrial Windows XP Embedded Operating System (not user accessible] Real-world paradigm intuitive interface (images, dynamic text labels and actuals] Show backup on hard disk or USB storage device (not included] Compatible with Martin ShowDesigner 4 x DMX universe outputs: 5-pin locking XLR External monitor screen: VGA Artnet for addition of up to 32 DMX universes: RJ-45 Maxxyz/Maxedia multiple controller link: RJ-45 2 x Maxxyz Wing interfaces: RJ-45 4 x storage media/hardware peripherals: USB 2.0 MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode]: Standard MIDI INCLUDED ITEMS Maxxyz Compact dust cover: Maxxyz Compact monitor bracket, left: Maxxyz Compact monitor bracket, right: 4 x 5-pin male to 3-pin female XLR adapters: Maxxyz Compact desk lamp: ORDERING INFORMATION Maxxyz Compact Controller: P/N 90732020 Martin Professional A/S • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark • Phone: +45 87 40 00 00 • Fax: +45 87 40 00 10 -www.martin.com

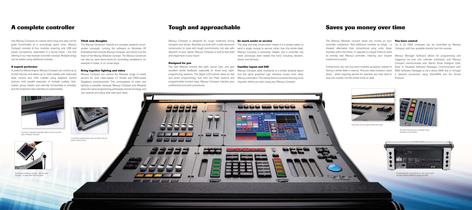

Use Maxxyz Compact as a stand-alone plug-and-play unit for great functionality at a surprisingly good price. Maxxyz Compact consists of four modules requiring only USB and power connections, assembled in a sturdy frame - the first offering in our new modular controller concept. Multiple wings can be added using additional modules. A powerful effects engine, Maxxyz Compact can control up to 32,000 fixtures, and allows up to 1000 cuelists with motorized fader control and 1000 cuelists using playback control buttons, with parallel execution of multiple cuelists. Sub- master, group master, and override...
