Marset Iluminacion
New catalogue 2009-2010

New catalogue 2009-2010

Product catalog summary

Overview: The document provides detailed descriptions of various lighting fixtures, focusing on their design inspirations, materials, and lighting effects. Each lamp is associated with a specific designer and year of creation, highlighting the unique features and functionalities of each product.

Gran Vía Suspension Lamp: Inspired by a famous street in Barcelona, this lamp features an engraved opal blown glass diffuser that creates a unique texture and halo effect. It offers both direct and diffused lighting, making it versatile for different settings.

Bosca Suspension Lamp: Designed by Jaime Beriestain in 2006, this lamp combines wood, glass, and metal to create a warm and balanced atmosphere. The opal glass discs and oak or wengue wood structure contribute to its elegant design.

Cotton Suspension Lamp: Created by Javier M. Borrás in 2004, this lamp features a ribboned raw cotton shade and a white methacrylate diffuser. It provides soft, cozy lighting with high efficacy, available in various sizes and configurations.

Compass Suspension Lamp: Designed by Christophe Mathieu in 1997, this lamp includes a height-adjustable system and a silicone wheel for 360-degree rotation. It offers two shade options: a white methacrylate semi-sphere or a natural cotton ribbon shade.

Akira Suspension Lamp: Miquel Planas designed this lamp in 2000, drawing inspiration from contemporary sculpture. It features an aluminum structure and an acrylic diffuser with slits for a soft haze effect, suitable for various spaces.

Ondalina Suspension Lamp: Christophe Mathieu's 2002 design features sinuous, organic forms with a satin acrylic structure. It creates a delicate atmosphere when lit and serves as a decorative element when off.

Discocó Ceiling Lamp: This lamp, designed by Christophe Mathieu in 2009, consists of white lacquered discs around a chromed semi-sphere. It reflects and redirects light, creating a unique and enriching lighting effect.

Flash Ceiling Lamp: Designed by Joan Gaspar in 2001, this lamp is a surface light with a transparent polycarbonate structure and an aluminum reflector. It can be grouped in series for enhanced visual impact.

Zero Ceiling Lamp: Joan Gaspar's 2006 design features an aluminum base with a transparent polycarbonate perimeter and a pressed glass diffuser, offering unusual lighting effects for this product type.

Olav Ceiling Lamp: Inspired by Scandinavian design, this lamp by Cristian Díez in 1999 features a blown opal glass shade and provides both direct and diffused light.

Sirio Ceiling Lamp: Designed by Cristian Díez in 1996, this lamp has an organic shape with a white glass structure and aluminum support, offering high-quality diffused lighting.

Nolita Floor Lamp: This sophisticated and elegant lamp features a conic diffuser with a double polycarbonate shade and an anodized aluminum base, emphasizing simplicity and proportion.

Cotton Lamp Collection: The Cotton lamp series, designed by Javier M. Borrás in 1998, features a classic yet contemporary design. It combines a square base with a cylindrical metal stem and a cotton-fabric ribboned lampshade, available in three sizes, providing a rich and textured light.

Silo Lamp: Designed by Cristian Díez in 1996, the Silo lamp is characterized by its simple geometric shape. It has a chrome-plated metal structure with a hollow circular base and a blown opal glass diffuser, offering a soft and high-quality light.

Alta Lamp: Created by Equipo Marset in 1993, the Alta lamp is modern and functional, featuring a matte chromed base and stem with a conical aluminium shade. It emits direct light and is available in two sizes.

Lector Lamp: Designed by Lluís Porqueras in 1990, the Lector lamp is a reading lamp with a warm and intimate design. It features a chrome-plated structure and a cast iron base with a polyester and cream paper shade.

Ledtube Wall Lamp: Developed by Equipo Marset & Daniel L. Carrillo in 2009, the Ledtube is an orientable wall lamp with 3W LED technology. It can be installed vertically or horizontally, making it ideal as a built-in bedside lamp.

Ledpipe Wall Lamp: Designed by Joan Gaspar in 2005, the Ledpipe lamp is versatile with a movable arm and swivel head. It is available in three versions, offering direct illumination without dazzling.

Nolita Collection: Created by Joan Gaspar in 2008, the Nolita collection is elegant and sophisticated, featuring a conic diffuser with a double shade made of polycarbonate. It offers multiple finishings and can be combined with different structure colors.

Mercer Wall Lamp: Designed by Javier M. Borrás & Joan Gaspar in 2009, the Mercer lamp combines different materials, featuring a cotton ribboned shade floating in a transparent blown glass structure, providing a delicate and diffused light.

Atila Wall Lamp: Created by Joan Gaspar in 2006, the Atila lamp is a modern interpretation of industrial lamps, suitable as a bedside lamp with a compact shade to prevent dazzling.

Pop Wall Lamp: Designed by Oxigen in 2002, the Pop lamp is modern and flexible, featuring a spherical diffuser and a silicone-coated arm. It is available in a short wall lamp version.

Cotton Wall Lamp: The Cotton wall lamp offers a soft and cozy light due to its raw cotton ribboned shade and incandescent bulb. It is available in a smaller version. Designed by Javier M. Borrás in 1998, it features dimensions of 14/5.5" and 10.4/4".

Big Mouse Wall Lamp: Designed by Joan Gaspar in 2006, the Big Mouse lamp is notable for its size, versatility, and materials. It features a polycarbonate double-screen shade with a translucent interior and engraved transparent exterior, fitting into an aluminum structure. Available in single and double versions, it uses E27 60W, G24 d2 18W, G24 q2 18W, or E27 15W FBT bulbs.

Lector Wall Lamp: Designed by Lluís Porqueras in 1990, the Lector lamp is ideal for quiet corners, offering both ambient and direct light through its beige polypropylene shade. It has a chromed metal structure and uses E27 60W or 11W E27 FBT bulbs.

204 Wall Lamp: Created by Equipo Marset in 1985, the 204 lamp is functional with a cylindrical diffuser and an extendable arm for directing light. It is available with LED technology and uses GY 6.35 35W 12V or 2 x LED 3W bulbs.

Vivaldi Wall Lamp: Designed by Equipo Marset in 1998, the Vivaldi lamp is rational and neat, suitable for direct subtle lighting. It features a matte chromed brass structure and uses 2 x GY 6.35 2x 20W 12V bulbs.

Moma Wall Lamp: Designed by Christophe Mathieu in 1999, the Moma lamp has an architectural design and can be installed horizontally or vertically. It is made of cast aluminum with a borosilicate glass diffuser and uses 3 x G4 20W or 3 x LED 3W bulbs.

Zoo Wall Lamp: Created by Lagranja in 2008, the Zoo lamp features a translucent polycarbonate structure with a rotating diffuser for direct or indirect light. It uses 3 LEDs 3W and is available in aluminum, white, and orange finishes.

Flash Wall Lamp: Designed by Joan Gaspar in 2001, the Flash lamp offers a modern aesthetic with a transparent polycarbonate body creating a floating effect. It uses G9 60W bulbs.

Silo Wall Lamp: Created by Cristian Díez in 1996, the Silo lamp has a 50s-inspired design with a chromed metal structure and opal glass diffuser. It is available in a shorter version, Silo C, and uses E27 100W Opal or E27 FBT 20W bulbs.

Bernie Wall Lamp: Designed by Joan Gaspar in 1996, the Bernie lamp is functional and decorative with a cast aluminum structure and translucent glass diffuser. It uses E27 100W OPAL or 20W E27 FBT bulbs.

Viga Wall Lamp: Created by Joan Gaspar in 1992, the Viga lamp is a halogen lamp producing indirect light with a chromed or painted metal diffuser. It is available in a miniature version and uses R7s 75mm 10W or G9 40W bulbs.

Zoc Wall Lamp: Designed by Joan Gaspar in 1996, the Zoc lamp has a modern and organic design for floor-level lighting. It uses E14 40W bulbs and is available in an outdoor version with IP65.

Manhattan T5 Wall Lamp: Created by Joan Gaspar in 2005, the Manhattan T5 collection features geometric designs with a silk-screened polycarbonate diffuser. It is suitable for vertical or horizontal installation and uses T5 fluorescent light sources with IP44 protection.

Overview: The document provides a detailed description of various lighting products designed by Joan Gaspar and other designers, focusing on both indoor and outdoor applications. The products are characterized by their minimalist design, versatility, and suitability for different environments.

1. Manhattan Collection: - Features minimalist wall lamps with geometric shapes and curved opal glass. - Versatile and suitable for high circulation areas. - Available in different sizes.

2. Zoom Collection: - Technical-looking wall lamps made of compressed and engraved glass. - Provides indirect lighting with a simple, rounded design. - Suitable for both domestic and public spaces.

3. Beta Collection: - Minimalist wall lamps with screen-printed glass diffusers. - Provides high-quality light with halogen bulbs. - Integrates well into various environments.

4. Espejito, Espejito: - Illuminated magnifying mirror approved for bathroom use (IP44). - Features a white opal glass globe diffuser. - Available in a basic version for optimal bathroom lighting.

5. TXL Collection: - Designed for gardens and terraces, emitting warm light. - Floor version with a slate base and fiberglass shade. - Suspension version is lightweight and suitable for outdoor tables.

6. Duna Collection: - Inspired by torches, featuring a flexible design with a 360º rotation. - Suitable for gardens and terraces with a sand-filled base. - Available in white and red methacrylate shades.

7. Nagy Collection: - Light capsule with a pressure seal and extruded aluminum poles. - Available in various translucent colors. - Suitable for different heights and outdoor applications.

8. Amanita Collection: - Decorative outdoor lamp with geometric openings for soft lighting. - Available in anthracite grey, white, and sand colors. - Can be used as both floor and wall lamps.

9. Zero Collection: - Basic design with transparent polycarbonate and pressed glass diffuser. - Creates unusual lighting effects for outdoor use.

10. TV Collection: - Cast aluminum lamp with a bold design and square light distribution. - Integrates well with contemporary architecture.

11. Zoc Collection: - Outdoor version of a known design, featuring direct light and a discreet organic shape.

12. Neón de Luz: - Fluorescent system with added chromatic elements for improved lighting quality. - Versatile and suitable for continuous lighting needs. - Can be used as a wall lamp or suspension element.

Overview: The document provides detailed specifications and descriptions of various architectural lighting systems, focusing on the Neón de Luz, Atlas, and Raxis collections. These systems are designed for both aesthetic appeal and functional lighting solutions in architectural spaces.

Neón de Luz:

Specifications: Modular fluorescent system with polycarbonate profiles and reflectors. Available in wall and suspension versions with various sizes and configurations.
Wall Version: Available in five sizes (NL-A) and a double version (2-A) with three sizes. An aluminum box version (AL-A) allows for infinite installation.
Suspension Version: Offered in four sizes (NL-S) and a double version with three sizes. Adaptable for endless light lines (AL-NL).
Installation: Ballast installation varies based on the distance from the ceiling.

Atlas:

Design: Transforms a common bulb into a spotlight with a transparent polycarbonate shade. Available in hanging, wall, ceiling, and standing versions.
Configurations: Can be grouped in bases of 2, 3, 4, and 6 units. Suitable for electrified tracks.
Materials: Made of transparent polycarbonate and a polyamide base.

Raxis:

Design: Orientable lighting system with a cylindrical body, offering high lighting performance and refined design.
Installation Options: Ceiling-fitted, surface-mounted, wall-mounted, and suspended. Available in two diameters (10 and 17 cm).
Materials: Available in aluminum, black, and white with a brushed aluminum hoop.
LED Version: Raxis 10 is available in an LED version.

SQ.Axis:

Design: Built-in spotlight system combining advanced technology with meticulous design.
Features: Double-layer casing provides various light effects. Available in three sizes, with the smallest being fixed and others having a rotation mechanism.

Catalog excerpts

P. III MARSET 2009-2010 Las particularidades de un ambiente deben una gran parte a los encuentros y desencuentros de las luces y las sombras. A lo oculto, a lo expuesto y a un amplio espectro entre la claridad y la oscuridad absolutas. Así se instala la belleza, se construyen atmósferas y se establecen funciones y recorridos. En el mismo proceso por el que descubre el espíritu de las cosas, la luz determina nuestra experiencia visual y sensible del espacio. P. II MARSET 2009-2010

Open the catalog to page 3

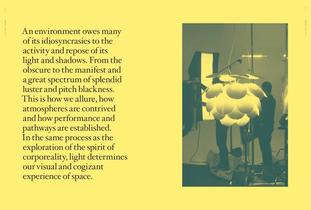

P. V MARSET 2009-2010 P. IV MARSET 2009-2010 An environment owes many of its idiosyncrasies to the activity and repose of its light and shadows. From the obscure to the manifest and a great spectrum of splendid luster and pitch blackness. This is how we allure, how atmospheres are contrived and how performance and pathways are established. In the same process as the exploration of the spirit of corporeality, light determines our visual and cogizant experience of space.

Open the catalog to page 4

preguntas: “¿Qué está sonando? Me gusta”. 6. Lo que es morirme morirme, pues ninguno. Quizás unos sitios que me rondan la cabeza son Alaska o Groenlandia. Aunque lo que realmente me interesa son las experiencias vividas en los lugares que visito. -- 1. Perhaps having lived and worked in Milan for three years. 2. The latest, Discocó light. I know it sounds trite, but it’s true: -a clearly defined product, recognisable, giving good light and needs no explanation. 3. Try to do better every time. 4. As Enzo Mari said to me one day: “Listen, here, in Milan, there are more than 40,000 architects and...

Open the catalog to page 5

P. IX DISEÑADORES / DESIGNERS 2. Estoy orgulloso de todos, especialmente de la Nagy, por ser el primero y por la complejidad del proyecto. Es una cápsula de inyección de policarbonato en diversos colores. La cápsula es estanca, permite instalarse en exteriores y baños. 3. Cualquier lámpara tiene dos estados: encendido y apagado. En cada uno de ellos la lámpara se comporta de manera distinta, ése es el gran desafío de la iluminación, debes controlar esos dos estados. A grosso modo en uno impera la volumetría, lo material, en el otro lo escénico, lo etéreo. 4. No me gusta dar consejos. Si tengo...

Open the catalog to page 6

P. XI DISEÑADORES / DESIGNERS seguir. En mi opinión, cada uno debe tener sus propias experiencias y confiar en su propio criterio, de lo contrario no habrá innovación. 5. Kashmir, Arcade Fire, Electric Six, Mando Diao, Massive Attack, La excepción. 6. Todos los que aún no conozco. -- 1. Empathy. Trying to provide solutions for new individualised needs and contributing to the improvement in the lifestyle of the users. 2. Lin is a low energy, indirect system that gives maximum lighting performance. It is extra-slim, so that it can be installed on any surface or built into any wall or ceiling. Being...

Open the catalog to page 7

P. XIII ÍNDICE GENERAL / GENERAL INDEX lÁmparas de suspensión SuSPeNSioN lamps lÁmparas de techo ceiling lamps arquitectural architectural lÁmparas de pie floor lamps lÁmparas de sobremesa table lamps lÁmparas de pared wall lamps lÁmparas de exterior outdoor lamps Exterior OUTDOOR Decorativa Decorative Arquitectural ARCHITECTURAL 2. ¿De qué proyecto os sentís más orgullosos? El proyecto reciente del que nos sentimos más orgullosos no lo materializamos nosotros, aunque sí es nuestro. Happy People es una obra sobre la imagen que proyectamos y sobre la felicidad y sus connotaciones satélites. 3....

Open the catalog to page 8

S 186 _ Silo A, C 138 _ Silo S 060 _ Sirio 270 _ Sq. Axis 026 _ S1& S2 T 130 _ Topolina 232 _ Tv 210 _ Txl V 190 _ Viga 174 _ Vivaldi Z 056 _ Zero 230 _ Zero IP54 234 _ Zoc 234 _ Zoc IP65 180 _ Zoo 198 _ Zoom 0 - 9 172 _ 204 074 _ 3x3 Light P. XV ÍNDICE ALFABÉTICO / ALPHABETICALAL INDEX índice alfabético alpha betical index n 220 _ Nagy 238 _ Neón de luz 154_ Nolita A 106_ Nolita M, S 064_ Nolita P 010_ Nolita Susp. 156_ Nolita Cotton A 112_ Nolita Cotton M, S 068_ Nolita Cotton P 014_ Nolita Cotton Susp. O 030 _ Olav 058 _ Olav P 020 _ Olivia 082 _ Ondalina P 048 _ Ondalina Susp. P 164 _ Pop,...

Open the catalog to page 9

P. 001 Suspensión / SUSPENSION lámparas de suspen sión suspension LAMps Eng. Cast. P. XVI INFO. / INFO. Coordinación y contenido / Coordination & content Isabel Valle, Javier Marset Diseño gr áfico Y DIRECCIÓN DE ARTE / Graphic design & ART DIRECTION Folch Studio Ilustración de portada / co ver il Lustration Ricardo Fumanal Fotógra fos / Photographers Alexis Taulé, Coque Bartrina, Juan Gregorio, LStudio, Miguel Fernández, Miquel Ribot Impresión / Printing S.A. de Litografía Impreso en España Agosto 2009 Depósito Legal B.33539/2009 Marset agradece a todas aquellas personas y entidades que han...

Open the catalog to page 10

P. 003 Discocó Suspensión / SUSPENSION 35 Discos de abs inyectado lacado en blanco. Esfera cromada. / 35 White opaque discs made in moulded abs. Chrome sphere. Discocó 53 1 x E27 150W / 23W E27 FBT Discocó 88 3 x E27 100W / 3x 23W E27 FBT P. 002 Discocó Suspensión / SUSPENSION Discocó es la propuesta de lámpara de suspensión decorativa por excelencia. Atractiva y exuberante. Generadora de efectos, aporta una luz sutil, creando una atmósfera elegante y misteriosa. Existe en dos tamaños: la más grande tiene un diámetro de 88cm y la pequeña de 53cm. La lámpara se compone de 35 discos opacos con...

Open the catalog to page 11

P. 005 Discocó Suspensión / SUSPENSION P. 004 Discocó Suspensión / SUSPENSION

Open the catalog to page 12

P. 007 Discocó Suspensión / SUSPENSION P. 006 Discocó Suspensión / SUSPENSION Hotel Berlin, Berlin, Alemania.

Open the catalog to page 13

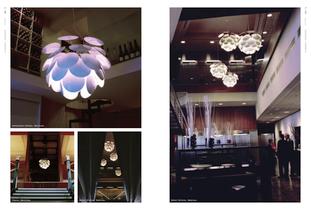

P. 009 Discocó Suspensión / SUSPENSION Rafael Hoteles, Badalona. P. 008 Discocó Suspensión / SUSPENSION Vinçon, Barcelona. Restaurante Alkimia, Barcelona. Rafael Hoteles, Badalona.
