One-way corridor

Product catalog summary

Overview
The Manusa Toran one-way corridor is a security device designed to facilitate smooth pedestrian traffic in one direction, typically from a critical security area to a less secure area. It is particularly suited for airports, seaports, rail terminals, and public transport infrastructures, as well as public building entrances.

Specifications
The corridor features an interlock system with two doors that open automatically in the direction of the flow. It includes asynchronous motors for reliability and longevity, and a patented system for smooth and fast door operation. The corridor is equipped with photocell barriers, activation and safety sensors, and LED lighting.

Operating Modes

Automatic: Standard mode for regular operation.
Closed: Both doors remain closed.
Remote: Controlled by an external system.
Maintenance: Only the landside door is open, alarms are disabled.
Cleaning: Only the door next to the selector remains open, alarms are disabled.

Security Features

Wrong-way Detection: If a pedestrian attempts to turn back, the entrance door closes.
Static Items Detection: If an item remains inside for more than 8 seconds, an alarm is triggered. A severe alarm activates if the item is not removed within 30 seconds.

Versions and Accessories

Available in single or multiple corridor configurations.
Accessories include intercom, video surveillance, people counter system, and LED display for user information.

Connectivity
The corridor can connect to any local or remote control or supervision system, offering multiple communication and integration options.

Contact Information
Headquarters: Avda. Via Augusta, 85-87, 6ª planta, 08174 Sant Cugat del Vallès, Barcelona, Spain. Tel.: +34 902 321 400. Email: [email protected]

Global Presence
Manusa has delegations in Spain, Portugal, Brazil, Singapore, and the UAE, with distributors across Africa, Latin America, Asia/Oceania, Europe, and the Middle East.

Catalog excerpts

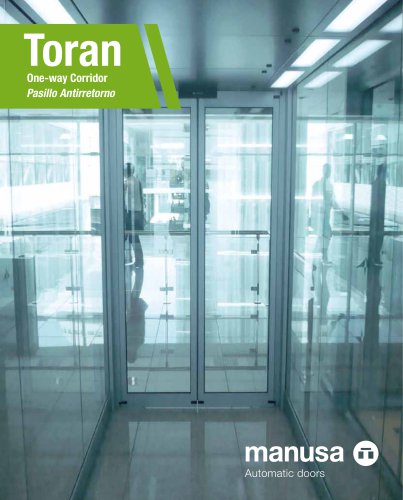

One-way Corridor Pasillo Antirretorno Automatic doors

Open the catalog to page 1

Components / COMPONENTES Manusa operators With asynchronous motors that offer great operational reliability and a long lifetime Operator access protection Bloqueo de acceso al operador Operadores Manusa Con motores asíncronos, que aseguran una gran fiabilidad de funcionamiento Upper cover Cubierta superior Activation and safety sensors Sensores de activación y seguridad Electromechanical locking of leaves Bloqueo electromecánico de hojas Low consumption and standby automatic mode Status light indicator Indicadores luminosos de estado Bajo Consumo y modo reposo automático. Entry and exit doors...

Open the catalog to page 2

Toran One-way Corridor Pasillo Antirretorno The Manusa Toran one-way corridor is a security gate that offers fluent pedestrian traffic in one way, usually from a critical security area (disembark area) to another area less secure (access controlled area, baggage claim, etc.). It has been specially designed to meet the security needs of airports, seaports or rail terminals and public transport infrastructures in general, as well as other areas with similar requirements, such as public buildings entrances. El pasillo antirretorno Toran de Manusa es un dispositivo de seguridad destinado a permitir...

Open the catalog to page 3

OPERATING MODES / FUNCIONALIDAD The device consists of two doors in interlock system, which open automatically in the direction of the flow with any inconvenience for the users. If there is an attempt to turn back into the corridor, the alarm activates and the door closes and locks automatically, avoiding the unauthorized use until the corridor is completely empty. Its operating mode is absolutely secure thanks to its sophisticated wrong-way detection system. El equipo consta de dos puertas en esclusa y se abre automáticamente en el sentido del flujo sin ninguna molestia para los usuarios. En...

Open the catalog to page 4

versions / VERSIONES The corridor can be set up in single mode or multiple mode in parallel, being a self-supporting device with an easy maintenance. Individual Corridor Pasillo Individual Multiple Corridor available in any configuration. Pasillo Múltiple suministrable en cualquier composición. El pasillo puede configurarse en modo individual o múltiple en paralelo, siendo el conjunto totalmente autoportante y de fácil mantenimiento. ACCESSORIES / ACCESORIOS Intercom / Interfono Video Surveillance / Video Vigilancia Internal safety device that allows voice communication with the control centre....

Open the catalog to page 5

headquarters / SEDE CENTRAL Avda. Via Augusta, 85-87, 6ª planta 08174 Sant Cugat del Vallès, Barcelona - Spain Tel.: +34 902 321 400 · Fax: +34 902 321 450 Email: [email protected] DELEGATIONS / DELEGACIONES Spain, Portugal, Brazil, Singapore, United Arab Emirates INTERNATIONAL DISTRIBUTORS DISTRIBUIDORES INTERNACIONALES AFRICA Angola, Algeria, Egypt, Morocco, Mozambique, Nigeria, South Africa, Tunisia, Tanzania latin AMERICA Argentina, Colombia, Costa Rica, Cuba, Chile, Ecuador, Mexico, Panama, Paraguay, Peru, Uruguay, Venezuela ASIA / OCEANIA Australia, China, Hong Kong, Indonesia, India, Malaysia,...

Open the catalog to page 6
