GNS-4

Product catalog summary

Product Overview:
The document describes the Genesis Bike Rack, model GNS-4-IG(SF), designed to hold four bikes. It can be mounted either on the surface or in-ground.

Specifications:

Concrete anchor rod grade for in-ground mount.
7" round flange with three 9/16" holes.
Dimensions include 42" height, 44" width, and 34"±1/2" depth.
Constructed with 2 3/8" steel tubing.
Additional dimensions: 24"±1" width, 30" height, 50 1/4" length, and 26 1/4" depth.

Installation and Mounting:

Installation should follow the manufacturer's specifications.
Options for surface flange mount (SF) or in-ground mount (IG).
Holes for galvanizing are located on the corners.

Additional Notes:

Consultant to select color and finish as per manufacturer's specifications.
Refer to the site plan for the location or consult the owner.
Specifications are subject to change without notice.

Confidentiality:
This drawing and information are confidential and should not be copied or disclosed without consent from Graber Manufacturing, Inc.

Contact Information:
Graber Manufacturing, Inc., Madrax Division, 1080 Uniek Drive, Waunakee, WI 53597. Phone: (800) 448-7931, (608) 849-1080. Fax: (608) 849-1081. Website: www.madrax.com. Email: [email protected].

Proprietary Rights:
All proprietary rights are reserved by Graber Manufacturing, Inc. ©2018.

Catalog excerpts

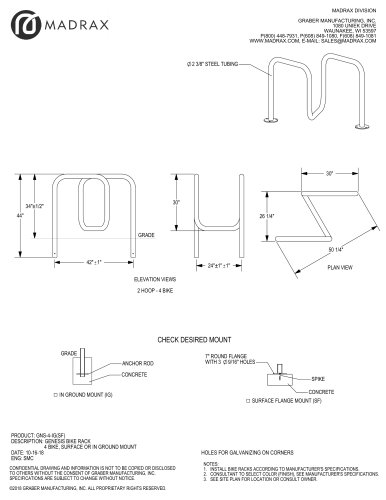

MADRAX DIVISION GRABER MANUFACTURING, INC. 1080 UNIEK DRIVE WAUNAKEE, WI 53597 P(800) 448-7931, P(608) 849-1080, F(608) 849-1081 WWW.MADRAX.COM, E-MAIL: [email protected] PLAN VIEW ELEVATION VIEWS 2 HOOP - 4 BIKE CHECK DESIRED MOUNT GRADE ANCHOR ROD 7" ROUND FLANGE WITH 3 9/16" HOLES CONCRETE IN GROUND MOUNT (IG) PRODUCT: GNS-4-IG(SF) DESCRIPTION: GENESIS BIKE RACK 4 BIKE, SURFACE OR IN GROUND MOUNT DATE: 10-16-18 ENG: SMC CONFIDENTIAL DRAWING AND INFORMATION IS NOT TO BE COPIED OR DISCLOSED TO OTHERS WITHOUT THE CONSENT OF GRABER MANUFACTURING, INC. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. ©2018 GRABER MANUFACTURING, INC. ALL PROPRIETARY RIGHTS RESERVED. SPIKE CONCRETE SURFACE FLANGE MOUNT (SF) HOLES FOR GALVANIZING ON CORNERS NOTES: 1. INSTALL BIKE RACKS ACCORDING TO MANUFACTURER'S SPECIFICATIONS. 2. CONSULTANT TO SELECT COLOR (FINISH), SEE MANUFACTURER'S SPECIFICATIONS. 3. SEE SITE PLAN FOR LOCATION OR CONSULT OWNER.
