MAADI group aluminum bridge models

Product catalog summary

Overview: The document provides detailed specifications for various aluminum bridge systems offered by MAADI Group Inc., including customized options and additional features.

Bridge Types and Specifications:

Pony Truss Bridge: Spans up to 100ft (30.5m) with widths ranging from 3ft to 10ft (1m to 3m).
Arched Pony Truss Bridge: Spans up to 150ft (46m) with widths from 3ft to 12ft (1m to 3.65m).
Box Truss Bridge: Spans up to 175ft (53.4m) with widths from 6ft to 10ft (1.8m to 3m).
Bow Truss Bridge: Spans up to 175ft (53.4m) with widths from 6ft to 10ft (1.8m to 3m).
H-Section Truss Bridge: Spans up to 150ft (45.7m) with widths from 4ft to 12ft (1.2m to 3.7m).
Bowstring Truss Bridge: Spans up to 100ft (30.5m) with widths from 6ft to 12ft (1.8m to 3.7m).
Bridge Widening Retrofit: Multiple single spans up to 100ft (30.5m) with widths from 5ft to 10ft (1.5m to 3m). Designed to create safe foot/bike lanes on narrow road bridges.

Modular Systems: The Make-A-Bridge® system is a weld-free, modular solution delivered in transportable bundles, suitable for remote locations. Options include anodized or baked paint finishes and LED lighting.

Warranty and Standards: All bridge systems come with a 10-year limited warranty and comply with ISO 9001:2008 standards.

Catalog excerpts

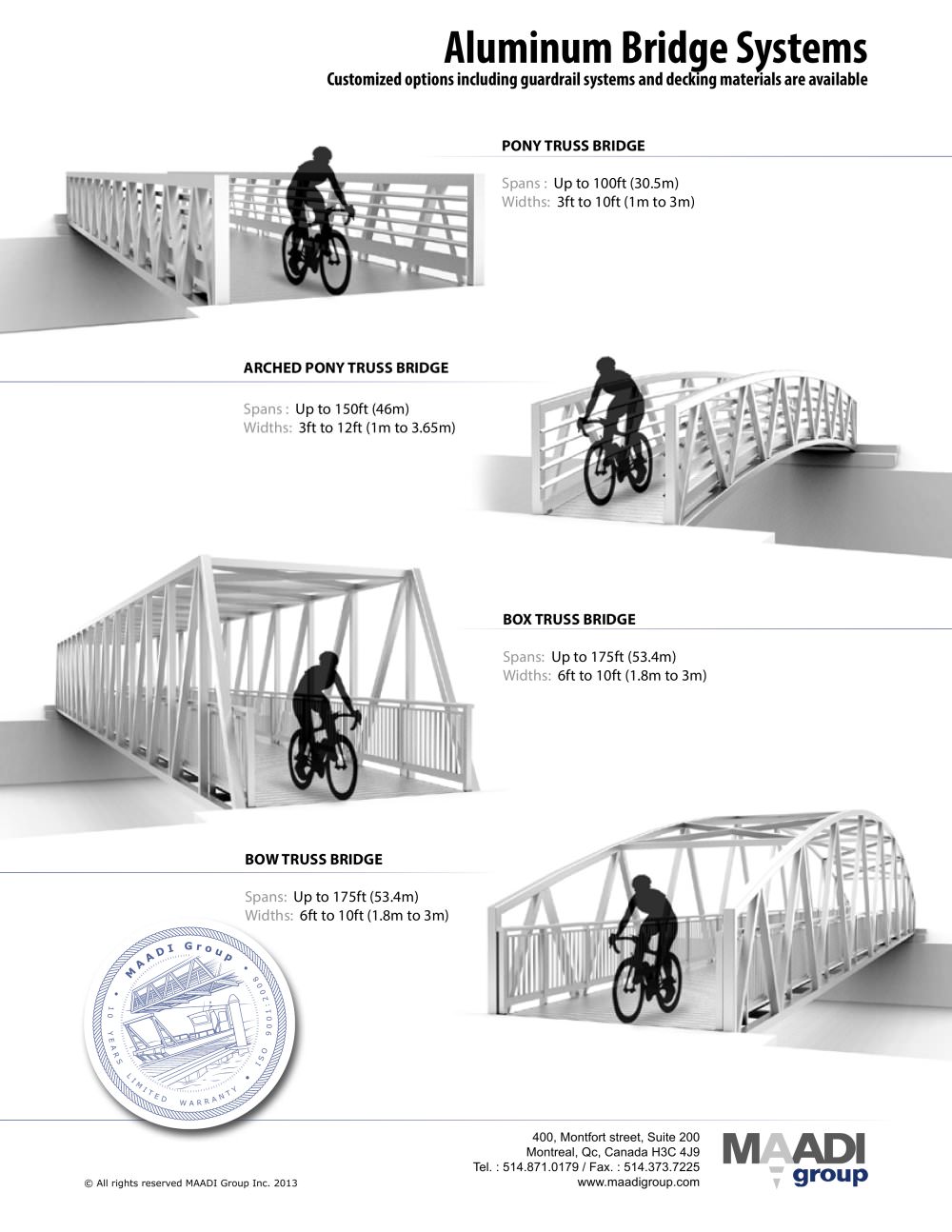

Aluminum Bridge Systems Customized options including guardrail systems and decking materials are available PONY TRUSS BRIDGE Spans : Up to 100ft (30.5m) Widths: 3ft to 10ft (1m to 3m) ARCHED PONY TRUSS BRIDGE Spans : Up to 150ft (46m) Widths: 3ft to 12ft (1m to 3.65m) BOX TRUSS BRIDGE Spans: Up to 175ft (53.4m) Widths: 6ft to 10ft (1.8m to 3m) © All rights reserved MAADI Group Inc. 2013 400, Montfort street, Suite 200 Montreal, Qc, Canada H3C 4J9 Tel. : 514.871.0179 / Fax. : 514.373.7225 www.maadigroup.com

Open the catalog to page 1

Aluminum Bridge Systems Customized options including guardrail systems and decking materials are available H-SECTION TRUSS BRIDGE Spans : Up to 150ft (45.7m) Widths: 4ft to 12ft (1.2m to 3.7m) ® MODULAR PONY TRUSS BRIDGE Our weld-free Make-A-Bridge® system is delivered in easy-to-transport bundles to any challenging or remote job site. Anodized or baked paint finishes and LED lighting system options are also available. Visit www.makeabridge.com BRIDGE WIDENING RETROFIT Multiple single spans : Up to 100ft (30.5m) Widths: 5ft to 10ft (1.5m to 3m) Note: Cantilever bridge systems create a dedicated...

Open the catalog to page 2
