Sivoia QED - 1

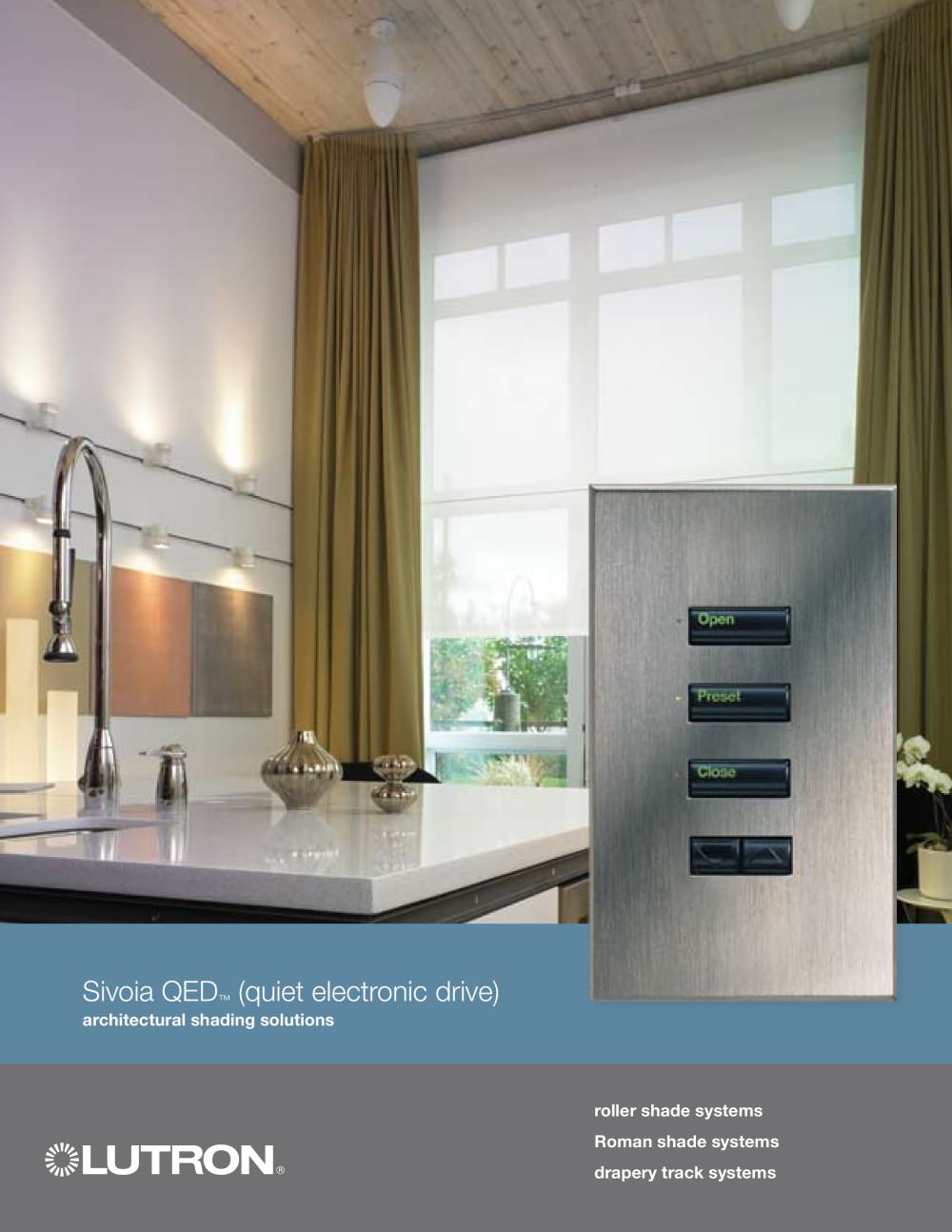

Sivoia QED > (quiet electronic drive) > architectural shading solutionsroller shade systemsRoman shade systems drapery track systems size="-1">

Open the catalog to page 1
Sivoia QED - 2

Lutron > has been the worldΒs leading manufacturer of lighting control systems for over 40 years. Now, Lutron has opened up a new world of possibilities by seamlessly integrating electric and daylight control systems with a focus on innovation, world-class engineering, and customer service. We blend technology with design and environmental sensitivity to provide the ideal solution for any specification. This catalog covers the wide range of shading and drapery products in our Sivoia QED > TM (quiet electronic drive) family. In addition, Lutron also provides both manual and large AC shading...

Open the catalog to page 2
Sivoia QED - 4

Roller 64 > The newest and smallest Sivoia QED electronic drive. Tube Size: 1.625 in. diameter Pocket size: 3.5 in. x 3.5 in.(maximum: 64 square feet) Page 4 Roller 100 Tube size: 2.5 in. Pocket size: 4.75 in. x 5 in. (Roller 100 maximum: 100 square feet) (Roller 200CW maximum: 200 square feet) > ٙ and roller 200CW A larger system that still offers all the same quiet operation, intelligence, and precision. Engineered for elegant, precise performance > Electronic drive unit located within roller tube Roller 225 > Օ Near-silent performance (44dBA at three feet) > Built-in intelligence allows...

Open the catalog to page 4
Sivoia QED - 5

To specify Sivoia QED > systems, consider the following options and product features. Providing power Individual Sivoia QED shades can be powered using Lutron plug-in transformers. Groups of shades can be powered by, and communicate with each other via Lutron power panels Roller shade drive systems Sivoia QED can be controlled by elegant seeTouch > ٕ All Sivoia QED drives provide built-in infrared reception capability Control options > No external group controllers are required Page 14 > Օ Fabrics All Sivoia QED drives feature Intelligent Hembar Alignment, which allows all Sivoia QED shade...

Open the catalog to page 5
Sivoia QED - 6

System dimensions Universal bracket design > The roller 64 systemutilizes a 1.625 in. roller tube to operate up to 64 square feet of fabric. one-piece bracket for simple installation > Օ same bracket for left and right side of roller tube > one bracket for ceiling, wall and jamb mount > Օ roller tube installs with simple, spring-loaded design > A B Front viewTop view > C D E Pocket dimensions Sivoia QED roller 64 will never require more than 3.5 in. height x 3.5 in. depth for installation. > F G C B G Dimensions A 0.75 in. (1.90cm) symmetrical B 3.0 in. (7.62cm) maximum C 0.3 in. (0.76cm)...

Open the catalog to page 6
Sivoia QED - 7

Provide a clean look for a system installed without fascia or top box. Available in white only. Curved fascia Sivoia QED > roller 64 can be installed with a top/back cover and curved fascia for a clean, minimal look. Squared off fascia is also available. Optional side channel Pocket end caps Finish the look of the Sivoia QED roller 64 standard pocket. See p. 25 for color options. Dual-mount roller system Install two fabric panels over the same window with this compact bracket system. Blackout configuration Roller tube end cap > G G M J H I K L Dimensions G 3.5 in. (8.89cm) J 6.00 in....

Open the catalog to page 7
Sivoia QED - 8

System dimensions Coupled roller system The roller 100 and roller 200CW systems both utilize a 2.5 in. roller tube. The roller 100 operates up to 100 square feet of fabric. The roller 200CW operates 200 square feet of fabric. Up to three Sivoia QED roller 100 shade panels can be coupled, meaning they all are powered by a single electronic drive unit (EDU). > A B C ٕ Offers 1.50 in. minimum light gap between panels Top view > Can be assembled with any bracket configuration (see p. 8) > Օ C Offers phase adjustment, which allows the hembars to be aligned after installation > Allows precise...

Open the catalog to page 8
Sivoia QED - 9

Pocket installation Pockets and fascia are available for Sivoia QED roller 100, roller 200CW and roller 64 > ٮ offers side channels in a width of 2.50 in. to facilitate blackout conditions. The sill angle completes the blackout by stopping light leaks below the shade. > systems. > E H H F I J J Side viewFront view Dimensions E 4.75 in. (12.06cm) Dimensions F 5.0 in. (12.70cm) H 5.00 in. (12.7cm) Pocket dimensions shown including side channels. I 1.00 in. (2.54cm) J 2.50 in. (6.35cm) Dual-mount bracket A common roller shade application is the use of two fabrics on one window, typically a...

Open the catalog to page 9
Sivoia QED - 10

Bracket design benefits Wall mount Ceiling mountJamb mount Fascia and top back covers Sivoia QED roller 100 and roller 200CW brackets employ a two-piece design to maximise ease and flexibility of installation. Proprietary bracket designs for various applications include: > ٕ Wall mount (outside the window frame) > Jamb mount (inside the window frame) > Օ Ceiling mount (inside the window frame or in a pocket) Sivoia QED roller blinds can be installed within fascia and top back covers. This two-piece enclosure both conceals the product and affords accessibility for adjustment and...

Open the catalog to page 10
Sivoia QED - 12

Larger shades Sivoia QED drives can now operate larger shades, up to 225 square feet. > A A Dimensions A 7.00 in. (17.78cm) The roller 225 system: > Utilizes a 3.75 in. diameter tube > Օ Employs unique brackets designed for larger systems. Roller 64 and roller 100 brackets are not compatible with this system. Sivoia QED roller 225 bracket assembly 10 >

Open the catalog to page 12
Sivoia QED - 13

All of the precision performance and elegance of Sivoia QED > technology is now incorporated into a bold collection of soft fabric and natural woven wood Roman shades. Choose from several pleat styles and finishing touches. Soft fabrics Available in a broad range of colors and styles, these fabrics have been selected to complement the Lutron > ٮ Satin Colors > line of Sivoia QED keypads, dimmers, and accessories. For images of our complete line of soft fabrics, refer to the fabric selection guide (P/N 367-1202). Natural woven woods Delicate grasses and bold bamboo are assembled with a...

Open the catalog to page 13
Sivoia QED - 14

Innovation and performance > ٕ Provide privacy with elegant drapery of any fabric and color (customer-supplied) 3.30 in.2.05 in.10.63 in.8.89 in. > One-touch control of individual or groups of drapery for fully-open, fully-closed, or preset positions > Օ Integrates seamlessly with Sivoia QED roller shades and Roman shades > Patent-pending technology virtually eliminates noise in tracks > Օ Left-draw, right-draw, and center-draw systems available > Curved tracks are available in a number of standard arcs (up to 90հ) as well as custom specifications > Drapery tracks are available in white,...

Open the catalog to page 14
