■ -fa- C M Y K _ 1 ^ LHZ CONVECTOR HEATERS LHZ CONVECTOR HEATERS LHZ CONVECTOR HEATERS Lucht LHZ Convector Heater Running and sizing guidelines. The following information provides guidelines on sizing the correct heater for each individual requirement in order to achieve the most efficient and economical running costs. Sizing guidelines are as follows: 100 watts per sq metre, eg: length 5 metres x width 4 metres = 20 square metres. 20 square metres, x 100 watts = 2000 watts* Ideally suited for larger living lounge areas. eg: length 5 metres x width 3 metres = 15 square metres. 15 square metres, x 100 watts = 1500 watts* Ideally suited for smaller lounge, dining, larger bedrooms. eg: length 3.15 metres x width 3.15 metres = 9.9 square metres. 9.9 square meters, x 100 watts = 1000 watts* Ideally suited for smaller bedroom, study, bathroom. TECHNICAL SPECIFICATIONS Heat outlet at the front On/Off Switch Thermostatic Control Anti-freezing protection Internal overheat protection Steel core white colour RAL 9002, baked enamel finish Electric Flex cable 0,5 m Electrical Connecting 230 V 1/N/PE Temperature range 5°C up to 35°C Protection Class I Crystal Convector Heater * ^Degree of Protection IP 24- Splash water protected Model-No. Powerrating Dimensions WWeight Crystal 500 0,5 KWW 345x445x85 3,7 kg Crystal 1000 1,0 KWW 415x445x85 4,8 kg Crystal 1500 1,5 KW 565x445x85 6,0 kg Crystal 2000 2,0 KW 695x445x85 7,0 kg Crystal 2500 2,5 KW 915x445x85 8,4 kg FEATURES AND BENEFITS Slim and stylish design Economical and Safe Completely Silent Clean, Efficient and Healthy Automatic safety cut out Combined radiant and convection heat provides efficient, gentle and even warmth Manufactured in Germany Full 5 year warranty Crystal range Full 2 year warranty Opal range Opal Convector Heater * ^Degree of Protection IP 21 - Drip water protected Model-No. Powerrating Dimensions Weight Opal 500 0,5 KW 345x445x85 3,1 kg Opal 1000 1,0 KW 415x445x85 3,6 kg Opal 1500 1,5 KW 565x445x85 4,4 kg Opal 2000 2,0 KW 695x445x85 5,2 kg Opal 2500 2,5 KW 915x445x85 6,0 kg ® (I) L LUCHT LHZ g GmbH & Co. KG Obere HauptstraBe 61 D-09232 Hartmannsdorf Germany Tel.: +49 3722 63370 . Fax: +49 3722 633720 e-mail: [email protected] . www.electric-heating.eu

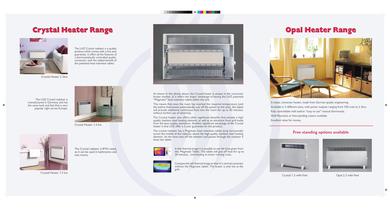

C M Y CM MY CY CMY K Crystal Heater Range Opal Heater Range The LHZ Crystal radiator is a quality product which comes with a five year guarantee. It offers all the features of a thermostatically controlled quality convector, with the added benefit of the patented heat retention tablet. Crystal Heater 2.5kw The LHZ Crystal radiator is manufactured in Germany and has the same look and feel that is very popular right across Europe. As shown in this photo above, the Crystal heater is unique in the convector heater market, as it offers the major advantage of having the LHZ patented "Magmatic" heat...
