Product catalog summary
Introduction
Levolux Internal Venetian Blinds are versatile solutions for controlling light and glare, suitable for offices, hotels, hospitals, and schools. They offer privacy, visual security, and decorative enhancement.

Features & Benefits
- Aesthetic Appeal: Available in various colors and finishes, including perforated and high mirror options, with matching components for a cohesive look.
- Control Options: Range from manual cords to motorized remote controls, ensuring ease of use and preventing over-tilting.
- Adaptability: Suitable for doors and windows with secure side guidings or hold-down brackets for stability.
- Technical Reliability: Designed for smooth operation and optimal closure.
- Room Partitioning: Can be installed between double glazing to act as dividers.
- Durability: All-aluminium construction enhances longevity, especially in humid areas.

The Range
- Levolux 416 & 425: Feature 16mm and 25mm slats for slender systems, usable between double glazing.
- Levolux 435 & 450: Feature 35mm and 50mm slats for larger glazing areas.
- Custom slat widths and timber options are available.

System Construction
Components are made to high standards for performance and aesthetics, including:
- Headrail & Bottomrail: Made from stove enamelled steel or aluminium for humid conditions.
- Slats: Aluminium, heat-treated, and double stove enamelled for durability.
- Control Options: Include cord, wand, crank handle, beadchain, electric, and bespoke options.

Warranty
A 3-year warranty covers defects, contingent on following installation and operation instructions.

Specifications
Blinds are customizable with various slat sizes and control systems, installed by approved distributors.

Key Dimensions
Details on maximum blind width, drop, and surface area are provided, with specific configurations for different control systems.

Contact Information
Levolux Limited and Levolux A.T. Limited provide contact details for further inquiries.
See more

Catalog excerpts

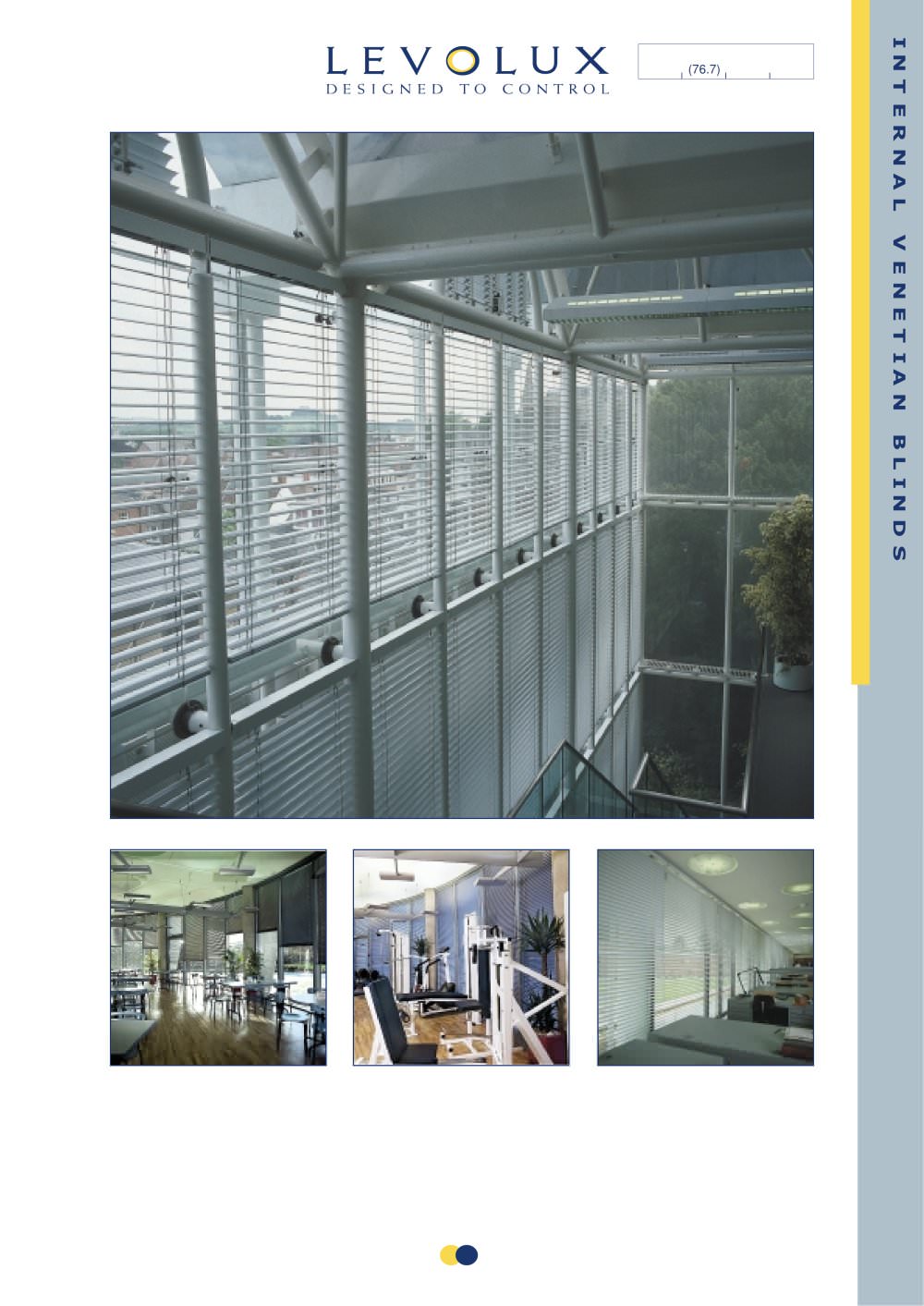

Internal venetian blinds-2

Introduction Levolux Internal Venetian Blinds are designed for a wide range of applications and are ideally suited for use in offices, hotels, hospitals and schools. A reliable and cost effective means of controlling light and glare, Levolux venetian blinds can also be used to provide privacy, visual security and added decoration. Features & Benefits Aesthetically pleasing - slats are available in a wide choice of colours and finishes, including perforated, high mirror, marble or iridescent aluminium finishes. Matching headrails, bottomrails ladders and tapes provide a quality, functional and...

 Open the catalog to page 2
Internal venetian blinds-3

Blind drop (416) 1000 1400 1800 2200 - - - - Bundle size (H, see above) 80 90 110 120 - - - - Blind drop (425) 1000 1400 1800 2200 2600 3000 - - Bundle size (H, see above) 70 80 90 100 110 130 - - Blind drop (435) 1000 1400 1800 2200 2600 3000 - - Bundle size (H, see above) 75 85 95 105 115 125 - - Blind drop (450) 1000 1400 1800 2200 2600 3000 3400 3800 Bundle size (H, see above) 105 115 125 135 145 155 165 175 I N T E R N A L V E N E T I A N B L I N D S •• Bundle heights Headrail and bottomrail dimensions Free hanging Free hanging in reveal pocket In space between glass with remote control...

 Open the catalog to page 3
