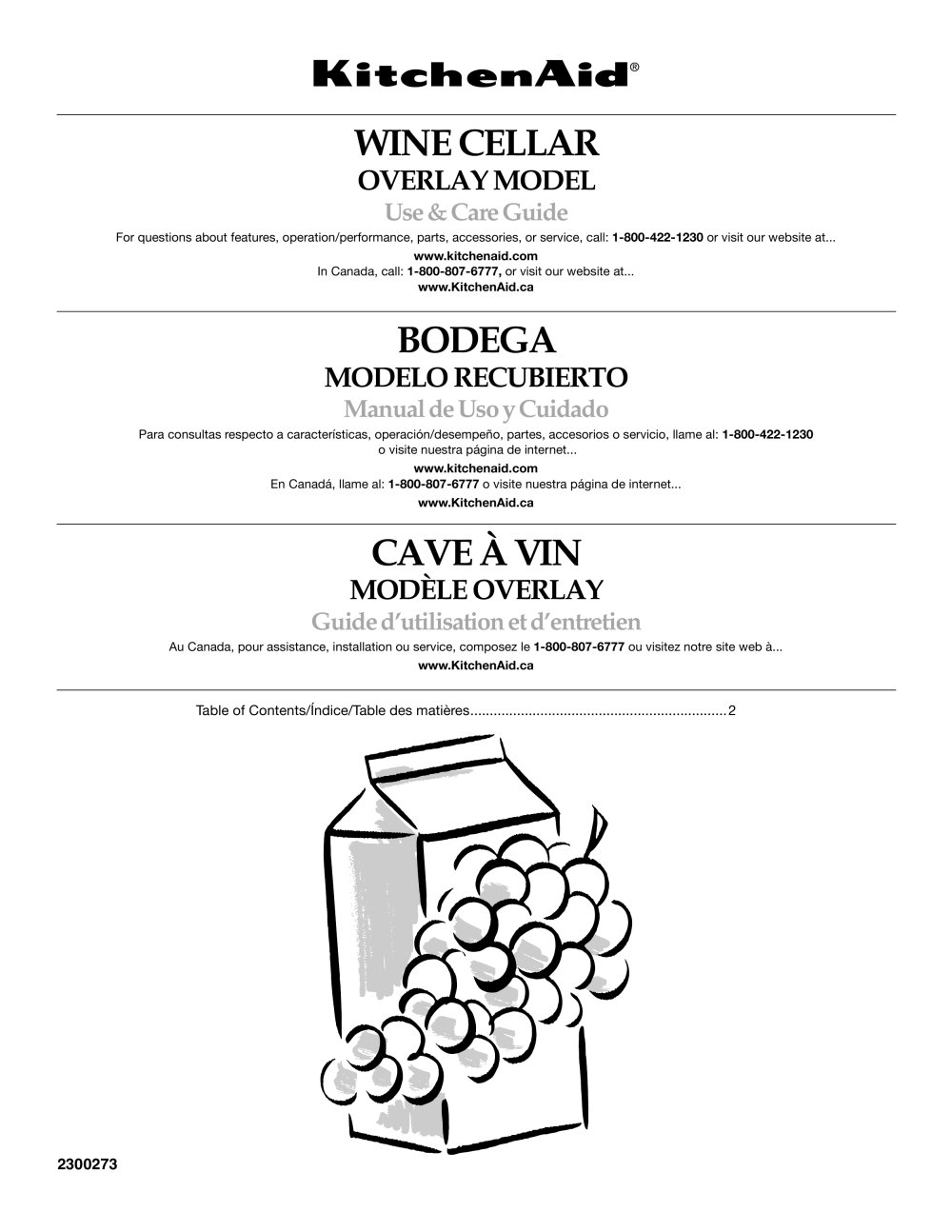

WINE CELLAR OVERLAY MODEL
40Pages

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word DANGERӔ or WARNING.ӔThese words mean: > You can be killed or seriously injured if you don't immediately You follow instructions.instructions. > can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to...

TOOLS NEEDED: Using a Phillips screwdriver and eight flat-head screws attach the overlay hooks to the back of the overlay frame. See Overlay FrameӖRear View for overlay hook locations. Gather the required tools and parts before starting installation.Read and follow the instructions provided with any tools listed here. > Ԣ֠ Hand drill or electric drill (properly grounded) > ■ Scissors > ■ Masking tape > ■ ٢D₂ " Brad point doweling drill bit > ■ Tape measure > ■ Phillips screwdriver > ■ Petroleum jelly > PARTS NEEDED: Custom Overlay FrameSee דOverlay FrameRear View.ה Hardware (Optional) PARTS...

2. Drill a ٢D₂ " (1.27cm) deep hole in the bottom of the overlay frame for the bottom hinge pin as shown. Bottom View > ٢w⁄₃₂ "(1.35 mm) Back SurfaceFront Surface A.Radius 5.0 Before you move your wine cellar into its final location, it is important to make sure you have the proper electrical connection. > A 115 Volt, 60 Hz., AC only 15 or 20֖amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your wine cellar be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord. > NOTE: Before performing any...

After you remove all of the packaging materials, clean the inside of your wine cellar before using it. See the cleaning instructions in Wine Cellar Care.Ӕ NOTE: If the overlay hooks are not installed, see Custom Overlay FrameӔ for overlay hook locations. 1. Position the overlay frame ٢D₂ " (1.27cm) higher than the door. Be sure to position the overlay hooks to the pilot holes. > IMPORTANT: > ■ Create custom overlay frame according to the specifications in the Custom Overlay FrameӔ section. > ■ KitchenAid is not responsible for the removal or addition of decorative frames that would prevent...

3. Slowly lower the door straight and evenly onto the bottom hinge pin. Be sure the washer stays in place. Close the door. Be sure the door properly aligns to the cabinet. > NOTE: Provide additional support for the door when moving the hinges. Do not depend on the door magnets to hold the door in place while you are working. > Your wine cellar has four leveling legs. If your wine cellar seems unsteady or you want the door to close more easily, 4. Using masking tape, secure the door to the cabinet before installing the top spacer as shown. adjust the wine cellars tilt using the instructions...

For your convenience, your wine cellar control is preset at the factory. When you first install your wine cellar, make sure that the control is still preset to the mid-setting as shown. > 1. Open the wine cellar door. 2. Using a Phillips screwdriver, remove the two screws. Push both tabs in toward the center to release the base grille from the wine cellar. > The mid-setting indicated in the previous section should be correct for normal usage. The control is set correctly when beverages are as cold as you like. If you need to adjust the temperature, wait at least 24hours between adjustments...

NOTE: For optimum wine storage, place white wines at the top of the wine cellar, Light red wines in the center and red wines at the bottom. > 1. Pull the rack forward until it stops. Push in on the tabs to release the rack. Continue pulling the rack forward and lift it up and out of the rack supports. > 1. Start stocking the wine cellar with the bottom display rack. > 2. Starting on the left-hand side, place the first bottle on the bottom of the rack with the neck of the bottle facing the back of the wine cellar. 3. Place the next bottle on its side with the neck of the bottle facing the...

6. Clean the condenser coils regularly. They are located behind the base grille. Coils may need to be cleaned as often as every other month. This may help save energy. > ■ Remove the base grille. See Base Grille.Ӕ > ■ Use a vacuum cleaner with an extended attachment to clean the condenser coils when they are dusty or dirty. > ■ Replace the base grille. 7. Plug in wine cellar or reconnect power. > NOTE: Not all appliance bulbs will fit your wine cellar. Be sure to replace the bulb with one of the same size, shape, and wattage. > 1. Unplug wine cellar or disconnect power. Clean the wine...

3. Clean, wipe, and dry it thoroughly. > 4. Take out all removable parts, wrap them well, and tape them together so they dont shift and rattle during the move. When you are moving your wine cellar to a new home, follow these steps to prepare it for the move. 5. Tape the doors shut and tape the power cord to the wine cellar.When you get to your new home, put everything back and refer to the ғInstallation Instructions section for preparation instructions. 1. Remove all wine bottles from the wine cellar. 2. Unplug the wine cellar. > Ԣ֠ Is the temperature outside hotter than normal? Expect the...

■ Are the racks out of position? Put the racks back into their correct positions. See Wine Cellar UseӔ for more information. > ■ Is the gasket dirty or sticky? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning. > ■ Is the gasket sticking? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning. > Before calling for assistance or service, please check Troubleshooting.Ӕ It may save you the cost of a service call. If you still need help, follow the instructions below....
