Beverage Center Safety
Proper disposal of old refrigerated appliances is crucial to prevent accidents such as child entrapment. Always remove doors and leave racks in place. Follow safety instructions to avoid hazards like fire or electric shock. Ensure the appliance is plugged into a grounded outlet and avoid using adapters or extension cords.

Installation Instructions
Gather necessary tools before installation. Ensure proper ventilation by allowing space around the beverage center. Avoid placing it near heat sources or in temperatures below 55°F (13°C). A dedicated electrical circuit is recommended. Unpack carefully, avoiding sharp tools that could damage the appliance.

Beverage Center Use
New sounds may occur due to high-efficiency components. Adjust the control settings to achieve desired temperatures, allowing 24 hours between adjustments. Ensure the door closes properly by adjusting leveling legs.

Beverage Center Care
Regular cleaning is essential. Follow instructions for changing light bulbs and preparing the appliance for vacations or moves.

Troubleshooting
Refer to the troubleshooting section for solutions to common issues.

Assistance or Service
Contact information for service in the U.S. and Canada is provided, along with warranty details.

Temperature Display and Adjustment: The beverage center features a temperature separator that displays current temperatures for the upper, middle, and lower zones in either Fahrenheit or Celsius. Adjustments can be made as per the instructions in the 'Adjusting Controls' section.

Beverage/Wine Racks: To remove and replace racks, pull the rack forward, release the tabs, and lift it out. Replace by sliding it back into the supports. For the bottom rack, lift and pull straight out, then push back to replace.

Stocking Instructions: For optimal storage, place white wines at the top and red wines at the bottom. Alternate bottle placement directionally to maximize space. Canned beverages should be placed on glass shelves.

Lighting: The interior light activates when the door is opened or can be manually turned on. Prolonged use of the light may increase the internal temperature slightly.

Cleaning and Maintenance: Clean the beverage center monthly to prevent odors. Use mild detergent and avoid abrasive cleaners. Clean condenser coils regularly to save energy. For stainless steel parts, use the approved cleaner and polish.

Changing the Light Bulb: Ensure the replacement bulb matches the original in size, shape, and wattage. Follow the steps to safely replace the bulb.

Vacation and Moving Care: For vacations, unplug and clean the unit, and prop the door open to prevent odors. For moving, secure all parts and tape the doors and power cord.

Troubleshooting: Common issues include power supply problems, light bulb issues, and temperature concerns. Solutions involve checking power connections, replacing bulbs, and ensuring proper door closure.

Warranty Information: The warranty covers defects in materials and workmanship for one year, with additional coverage for specific parts up to five years. Exclusions include service calls for installation errors, consumable parts, and damage from misuse.

Customer Assistance: For service, contact KitchenAid's customer service in the U.S. or Canada. Use factory-specified parts for replacements.

Warranty and Service Information
This section outlines the limitations and conditions of the warranty for KitchenAid appliances. It specifies that repairs due to unauthorized modifications, travel expenses for service in remote locations, and removal/reinstallation of appliances not installed per instructions are not covered. The warranty limits implied warranties to one year and excludes incidental or consequential damages, though these exclusions may not apply in all regions. For service, customers are advised to consult the troubleshooting guide or contact KitchenAid directly.

Safety Instructions for Beverage Refrigerator
This section emphasizes the importance of safety when disposing of old refrigerators to prevent accidents such as entrapment. It includes specific instructions like removing doors and leaving shelves in place. Safety warnings highlight risks such as fire, electric shock, and injury, advising proper grounding and handling procedures.

Installation Instructions
Guidelines for installing the beverage refrigerator include ensuring adequate ventilation, avoiding heat sources, and maintaining proper electrical connections. The section advises against using extension cords and recommends a dedicated circuit. Instructions for unpacking and cleaning the refrigerator before use are also provided.

Operating the Beverage Refrigerator
This section describes normal operational sounds and provides guidance on adjusting temperature controls. It explains how to remove and replace shelves and racks for optimal storage of beverages, including specific arrangements for wine bottles. The section also covers lighting features within the refrigerator.

Installation and Removal of Lower Grill:

To remove, lift the grill from the front and back and pull straight out.
To reinstall, push the grill straight back over the stopper until it is in place.

Beverage Refrigerator Storage:

Store white wines in the upper section and red wines in the lower section.
Begin storage from the bottom display, alternating bottle necks direction for optimal space usage.
Place juices and canned drinks on glass shelves.

Lighting:

The interior light turns on when the door is opened and can be manually turned on with a button near the temperature control.
Leaving the light on for extended periods may slightly increase the refrigerator's temperature.

Maintenance:

Clean monthly to prevent odors, using mild detergent and warm water.
Avoid strong or abrasive cleaners on plastic parts and door seals.
Clean stainless steel surfaces with approved cleaner and polish.
Regularly clean condenser coils to save energy.

Light Bulb Replacement:

Ensure replacement bulbs match in size, shape, and wattage.
Disconnect power before replacing the bulb.

Vacation and Moving Precautions:

For vacations, remove all bottles, unplug, and clean the refrigerator.
For moving, secure all removable parts and tape the door shut.

Troubleshooting:

Check power connection and circuit breakers if the refrigerator is not working.
Ensure bulbs are properly inserted and not burnt out.
Address excessive motor operation by checking ambient temperature and door usage.
Resolve temperature issues by ensuring proper door closure and unobstructed base grill.

Assistance and Service:

Contact KitchenAid for parts and service, ensuring to use factory-specified parts for replacements.
For further assistance, contact KitchenAid's Customer Experience Center.

Service and Support
KitchenAid Canada provides service through designated technicians trained to fulfill product warranties and offer post-warranty service across Canada. For further assistance, customers can contact KitchenAid Canada at their Customer Interaction Center in Mississauga, Ontario.

Accessories
To order accessories, customers can call 1-800-442-9991 or contact an authorized KitchenAid dealer. In Canada, the number is 1-800-807-6777. For stainless steel cleaner and polish, order part number 4396095.

Refrigerator Warranty
One-Year Limited Warranty: KitchenAid will cover factory-specified parts and labor to correct defects in materials or workmanship for one year from the purchase date, provided the appliance is used and maintained according to instructions.
Second to Fifth Year Limited Warranty: KitchenAid will cover the replacement or repair of the refrigerator/freezer cavity liner and sealed refrigeration system parts (compressor, evaporator, condenser, dryer, and connecting tubing) if defects occur due to materials or workmanship. Service must be provided by a designated service company.

Exclusions
KitchenAid does not cover service visits for installation correction, user instruction, fuse replacement, or home wiring/plumbing issues. Consumable parts like light bulbs, air filters, and water filters are not covered. The warranty excludes damages from accidents, misuse, unauthorized modifications, and natural disasters. It also does not cover food loss, travel costs for remote service, or unauthorized modifications.

Disclaimer
The sole remedy under this warranty is repair as outlined. Implied warranties are limited to one year or the shortest period allowed by law. KitchenAid is not liable for incidental or consequential damages. Some jurisdictions do not allow these limitations, so they may not apply to all customers.

Additional Information
Outside Canada and the U.S., this warranty does not apply. Customers should contact their authorized KitchenAid dealer for applicable warranties. For service, refer to the "Troubleshooting" section of the Use and Care Guide or contact KitchenAid directly.

Catalog excerpts

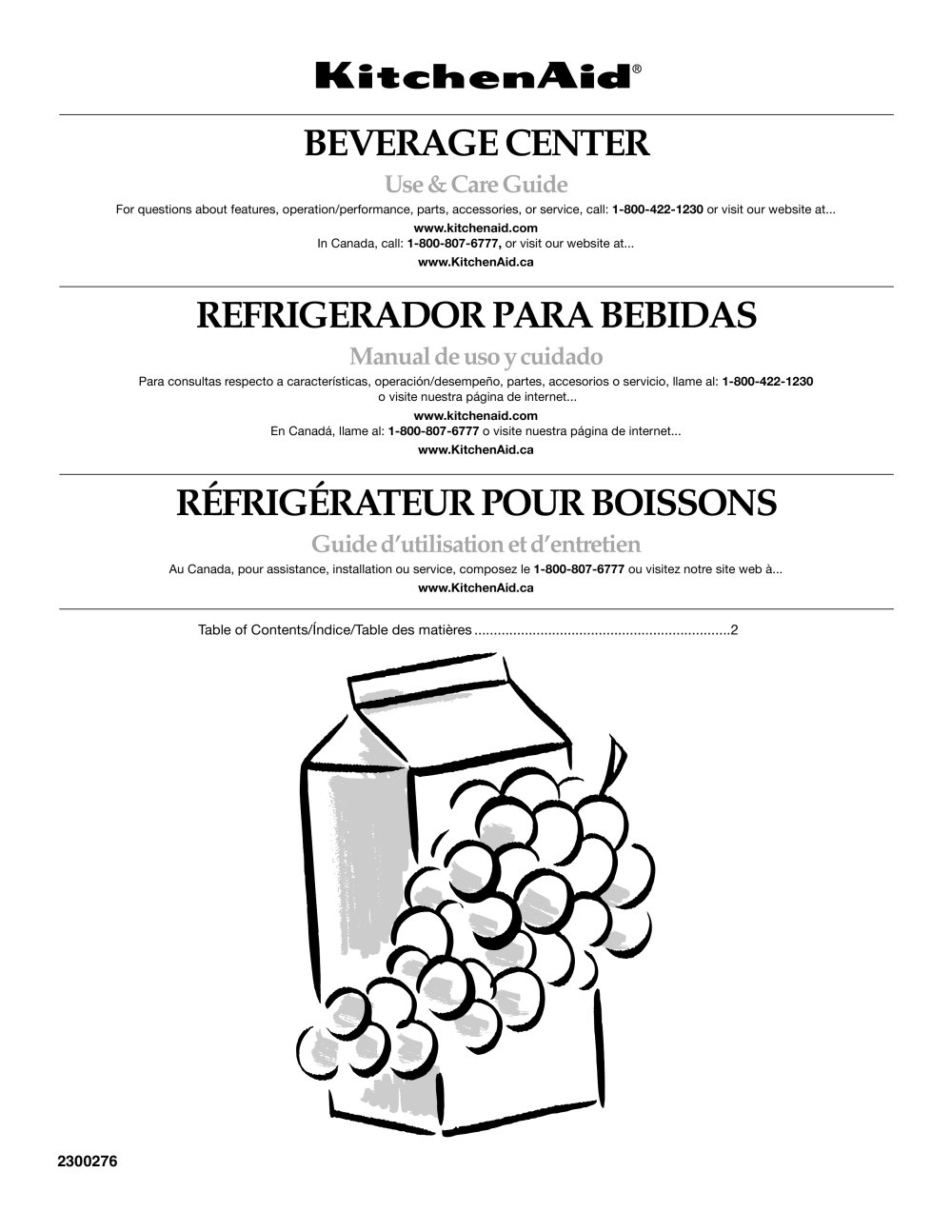

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word DANGERӔ or WARNING.ӔThese words mean: > You can be killed or seriously injured if you don't immediately You follow instructions.instructions. > can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce...

Open the catalog to page 3

TOOLS NEEDED: Gather the required tools and parts before starting installation. > ■ Phillips screwdriver > Before you move your beverage center into its final location, it is important to make sure you have the proper electrical connection. To ensure proper ventilation for your beverage center, allow for a / ٢ " (6.35mm) space on each side and at the top. When installing your beverage center next to a fixed wall, leave 2 > ٢D₂ " (6.35cm) minimum clearance on each side to allow for the door to swing open. A 115 Volt, 60 Hz., AC only 15 or 20֖amp fused, grounded electrical supply is required. It...

Open the catalog to page 4

NOTE: Having someone push against the top of the beverage center takes some weight off the leveling legs. This makes it easier to adjust the leveling legs. > ■ Dispose of/recycle all packaging materials. > 4. Open the door and check to make sure that it closes as easily as you like. If not, tilt the beverage center slightly more to the rear by turning both front leveling screws to the right. It may take several more turns, and you should turn both leveling legs the same amount. > After you remove all of the packaging materials, clean the inside of your beverage center before using it. See the...

Open the catalog to page 5

3. Place the next bottle on its side with the neck of the bottle facing the front of the beverage center. 2. Replace the rack by inserting the rack into the supports and sliding it toward the rear of the beverage center. 4. Alternate in this manner until the display rack is full. 5. Pull the next rack forward. 6. Starting on the left-hand side, place the first bottle on the rack with the neck of the bottle facing forward. 7. Place the next bottle on the shelf with the neck of the bottle facing the rear of the beverage center. 8. Continue alternating in this manner until the rack is full. 9. Slide...

Open the catalog to page 7

6. Clean the condenser coils regularly. They are located behind the base grille. Coils may need to be cleaned as often as every other month. This may help save energy. > ■ Remove the base grille. See Base Grille.Ӕ > ■ Use a vacuum cleaner with an extended attachment to clean the condenser coils when they are dusty or dirty. > ■ Replace the base grille. 7. Plug in beverage center or reconnect power. > NOTE: Not all appliance bulbs will fit your beverage center. Be sure to replace the bulb with one of the same size, shape, and wattage. > 1. Unplug beverage center or disconnect power. Clean the...

Open the catalog to page 8

3. Clean, wipe, and dry it thoroughly. > 4. Take out all removable parts, wrap them well, and tape them together so they dont shift and rattle during the move. When you are moving your beverage center to a new home, follow these steps to prepare it for the move. 5. Tape the doors shut and tape the power cord to the beverage center.When you get to your new home, put everything back and refer to the ғInstallation Instructions section for preparation instructions. 1. Remove all wine bottles from the beverage center. 2. Unplug the beverage center. > Ԣ֠ Is the temperature outside hotter than normal?...

Open the catalog to page 9

■ Are the racks or shelves out of position? Put the racks or shelves back into their correct positions. See Beverage Center UseӔ for more information. > ■ Is the gasket dirty or sticky? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning. > ■ Is the gasket sticking? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning. > Before calling for assistance or service, please check Troubleshooting.Ӕ It may save you the cost of a service call. If you still need help, follow the...

Open the catalog to page 10

Hemos incluido muchos mensajes importantes de seguridad en este manual y en su electrodomstico. Lea y obedezca siempre todos los mensajes de seguridad. Este es el sᩭmbolo de advertencia de seguridad.Este smbolo le llama la atencin sobre peligros potenciales que pueden ocasionar la muerte o una lesin a usted y a los dems.Todos los mensajes de seguridad irn a continuaciᡳn del smbolo de advertencia de seguridad y de la palabra PELIGRO퓔 o ADVERTENCIAӔ. Estas palabras significan: > Si no sigue las instrucciones de inmediato, usted puede morir o sufrir una lesin grave. Si no sigue las instrucciones,...

Open the catalog to page 12

HERRAMIENTAS NECESARIAS: Rena las herramientas y piezas necesarias antes de comenzar la instalacin. > Antes de mover el refrigerador para bebidas a su ubicacin final, es importante asegurarse de que tiene la conexi㳳n elctrica adecuada. > Para asegurarse la ventilacin adecuada del refrigerador para bebidas, deje un espacio de Se requiere una fuente de energa el㭩ctrica de 115Voltios, 60Hz., CA solamente y con fusibles de 15 20amperios, debidamente conectados a tierra. Se recomienda que use un circuito separado slo para su refrigerador para bebidas. Use un tomacorriente que no se pueda apagar con...

Open the catalog to page 13

3. Gire las patas niveladoras hacia la derecha para bajar el refrigerador para bebidas o grelas hacia la izquierda para levantarlo. Puede precisar darle varias vueltas a las patas niveladoras para ajustar la inclinacin del refrigerador para bebidas. > ֠ Deshgase de todos los materiales de embalaje o recclelos. > NOTA: Para quitar un poco de peso de las patas niveladoras, haga que alguien empuje la parte superior del refrigerador para bebidas. Esto facilita el ajuste de las patas niveladoras. > 4. Abra la puerta y verifique para asegurarse de que se cierra con la facilidad que usted desea. De...

Open the catalog to page 14
