Classic Convector Radiator
1 / 2Pages

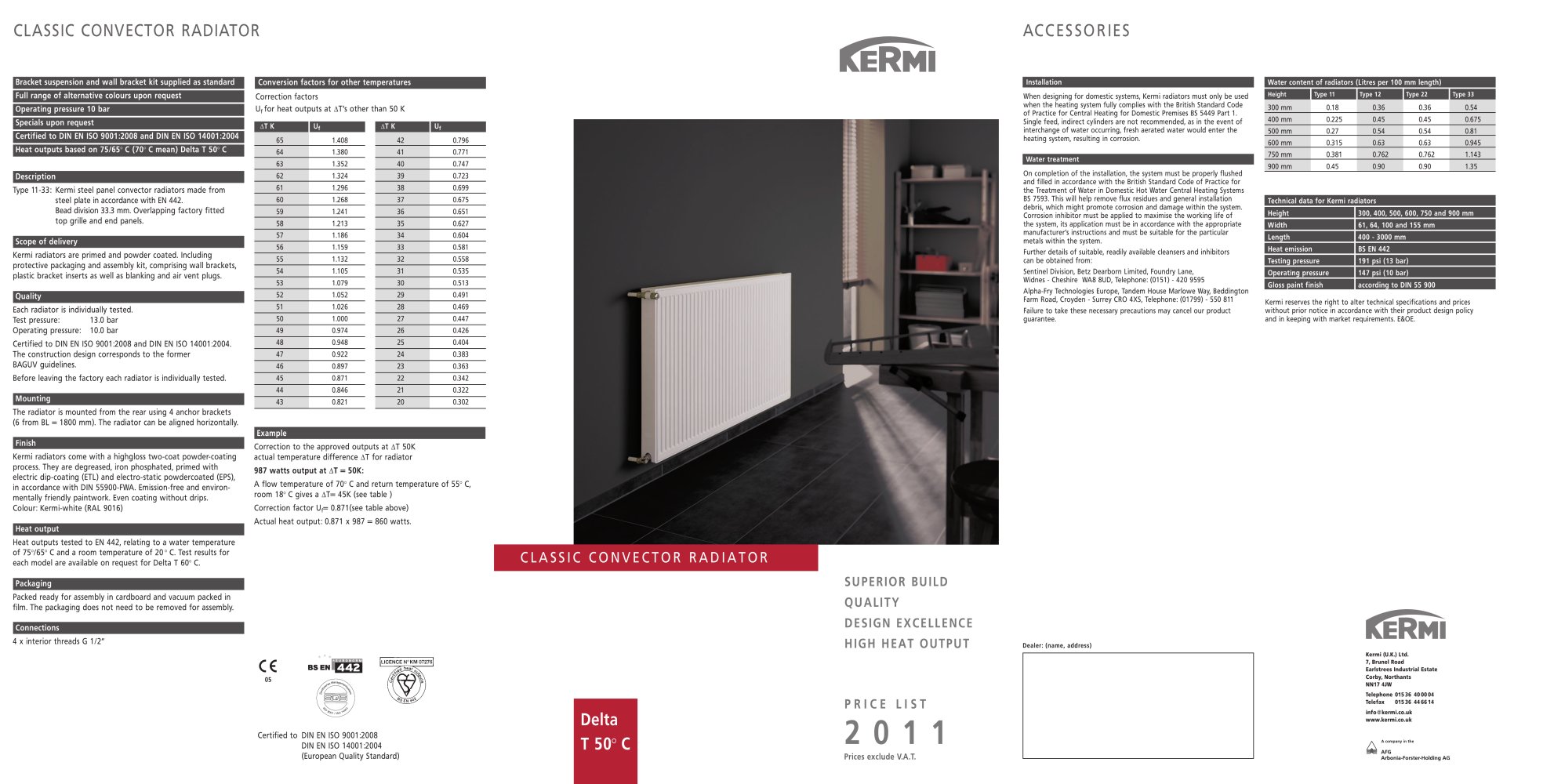

CLASSIC CONVECTOR RADIATOR ACCESSORIES ICeRmi Conversion factors for other temperatures Bracket suspension and wall bracket kit supplied as standard Installation Water content of radiators (Litres per 100 mm length) Correction factors Uf for heat outputs at AT's other than 50 K When designing for domestic systems, Kermi radiators must only be used when the heating system fully complies with the British Standard Code of Practice for Central Heating for Domestic Premises BS 5449 Part 1. Single feed, indirect cylinders are not recommended, as in the event of interchange of water occurring, fresh aerated water would enter the heating system, resulting in corrosion. Height Type 11 Type 12 Type 22 Type 33 300 mm 0.18 0.36 0.36 0.54 400 mm 0.225 0.45 0.45 0.675 500 mm 0.27 0.54 0.54 0.81 600 mm 0.315 0.63 0.63 0.945 750 mm 0.381 0.762 0.762 1.143 900 mm 0.45 0.90 0.90 1.35 Full range of alternative colours upon request Operating pressure 10 bar Specials upon request AT K AT K Uf_ 65 1.408 42 0.796 64 1.380 41 0.771 63 1.352 40 0.747 62 1.324 39 0.723 61 1.296 38 0.699 60 1.268 37 0.675 59 1.241 36 0.651 58 1.213 35 0.627 57 1.186 34 0.604 56 1.159 33 0.581 55 1.132 32 0.558 54 1.105 31 0.535 53 1.079 30 0.513 52 1.052 29 0.491 51 1.026 28 0.469 50 1.000 27 0.447 49 0.974 26 0.426 48 0.948 25 0.404 47 0.922 24 0.383 46 0.897 23 0.363 45 0.871 22 0.342 44 0.846 21 0.322 43 0.821 20 0.302 Example Certified to DIN EN ISO 9001:2008 and DIN EN ISO 14001:2004 Heat outputs based on 75/65° C (70° C mean) Delta T 50° C Water treatment On completion of the installation, the system must be properly flushed and filled in accordance with the British Standard Code of Practice for the Treatment of Water in Domestic Hot Water Central Heating Systems BS 7593. This will help remove flux residues and general installation debris, which might promote corrosion and damage within the system. Corrosion inhibitor must be applied to maximise the working life of the system, its application must be in accordance with the appropriate manufacturer's instructions and must be suitable for the particular metals within the system. Further details of suitable, readily available cleansers and inhibitors can be obtained from: Sentinel Division, Betz Dearborn Limited, Foundry Lane, Widnes - Cheshire WA8 8UD, Telephone: (0151) - 420 9595 Alpha-Fry Technologies Europe, Tandem House Marlowe Way, Beddington Farm Road, Croyden - Surrey CRO 4XS, Telephone: (01799) - 550 811 Failure to take these necessary precautions may cancel our product guarantee. Description Type 11-33: Kermi steel panel convector radiators made from steel plate in accordance with EN 442. Bead division 33.3 mm. Overlapping factory fitted top grille and end panels. Technical data for Kermi radiators Height 300, 400, 500, 600, 750 and 900 mm Width 61, 64, 100 and 155 mm Length 400 - 3000 mm Heat emission BS EN 442 Testing pressure 191 psi (13 bar) Operating pressure 147 psi (10 bar) Gloss paint finish according to DIN 55 900 Scope of delivery Kermi radiators are primed and powder coated. Including protective packaging and assembly kit, comprising wall brackets, plastic bracket inserts as well as blanking and air vent plugs. Quality Kermi reserves the right to alter technical specifications and prices without prior notice in accordance with their product design policy and in keeping with market requirements. E&Oe. Each radiator is individually tested. Test pressure: 13.0 bar Operating pressure: 10.0 bar Certified to DIN EN ISO 9001:2008 and DIN EN ISO 14001:2004. The construction design corresponds to the former BAGUV guidelines. Before leaving the factory each radiator is individually tested. Mounting The radiator is mounted from the rear using 4 anchor brackets (6 from BL = 1800 mm). The radiator can be aligned horizontally Kermi radiators come with a highgloss two-coat powder-coating process. They are degreased, iron phosphated, primed with electric dip-coating (ETL) and electro-static powdercoated (EPS), in accordance with DIN 55900-FWA. Emission-free and environ-mentally friendly paintwork. Even coating without drips. Colour: Kermi-white (RAL 9016) Correction to the approved outputs at AT 50K actual temperature difference AT for radiator 987 watts output at AT = 50K: A flow temperature of 70° C and return temperature of 55° C, room 18° C gives a AT= 45K (see table ) Correction factor Uf= 0.871(see table above) Actual heat output: 0.871 x 987 = 860 watts. Heat output Heat outputs tested to EN 442, relating to a water temperature of 75°/65° C and a room temperature of 20° C. Test results for each model are available on request for Delta T 60° C. SUPERIOR BUILD QUALITY DESIGN EXCELLENCE HIGH HEAT OUTPUT Dealer: (name, address) Packaging Packed ready for assembly in cardboard and vacuum packed in film. The packaging does not need to be removed for assembly. ections 4 x interior threads G 1/2" BSEN PRICELIST 2011 Prices exclude V.A.T. Kermi (U.K.) Ltd. 7, Brunei Road Earlstrees Industrial Estate Corby, Northants NN17 4JW Telephone 01536 400004 Telefax 01536 446614 info@kermi.co.ukwww.kermi.co.uk 442 05 Certified to DIN EN ISO 9001:2008 DIN EN ISO 14001:2004 (European Quality Standard) A eompany in the AFG Arbonia-Forster-Holding AG
