UPF Pro Fluorescent
UPF Pro Fluorescent
- Energy-efficient T5 fluorescent lamps available in 8W, 14W, 21W, and 28W, equivalent to 40W, 75W, 100W, and 150W halogen lamps respectively.
- High color rendering 3000K tri-phosphor lamps with a rated life of 10,000 hours (7,500 hours for UPF12 model).
- Available finishes: Black, Brushed Bronze, Brushed Silver, and Designer White.
- Cool operating fluorescent lighting with high energy savings.
- Integral 120V electronic ballast for instant start and flicker-free operation.
- Convenient on-off rocker switch.
- Premium extruded aluminum construction with a solid front design.
- UV stabilized acrylic diffuser to prevent discoloration.
- Quick mounting with captive external screws and rear-access cover.
- Push-in 3-wire electrical connectors for easy installation.
- Compatible with non-metallic cable or 3/8” flexible metal conduit.
- UL/C-UL listed and Energy Star certified.
- Complies with California’s Title 24 energy code.
- Jumper cords (8", 17", 26") for connecting fixtures.
- 6' cord and plug for portable installation.
- Direct wire module for code-compliant installation.
- 3/8" miniature die-cast electrical connector for loop wiring.
Catalog excerpts

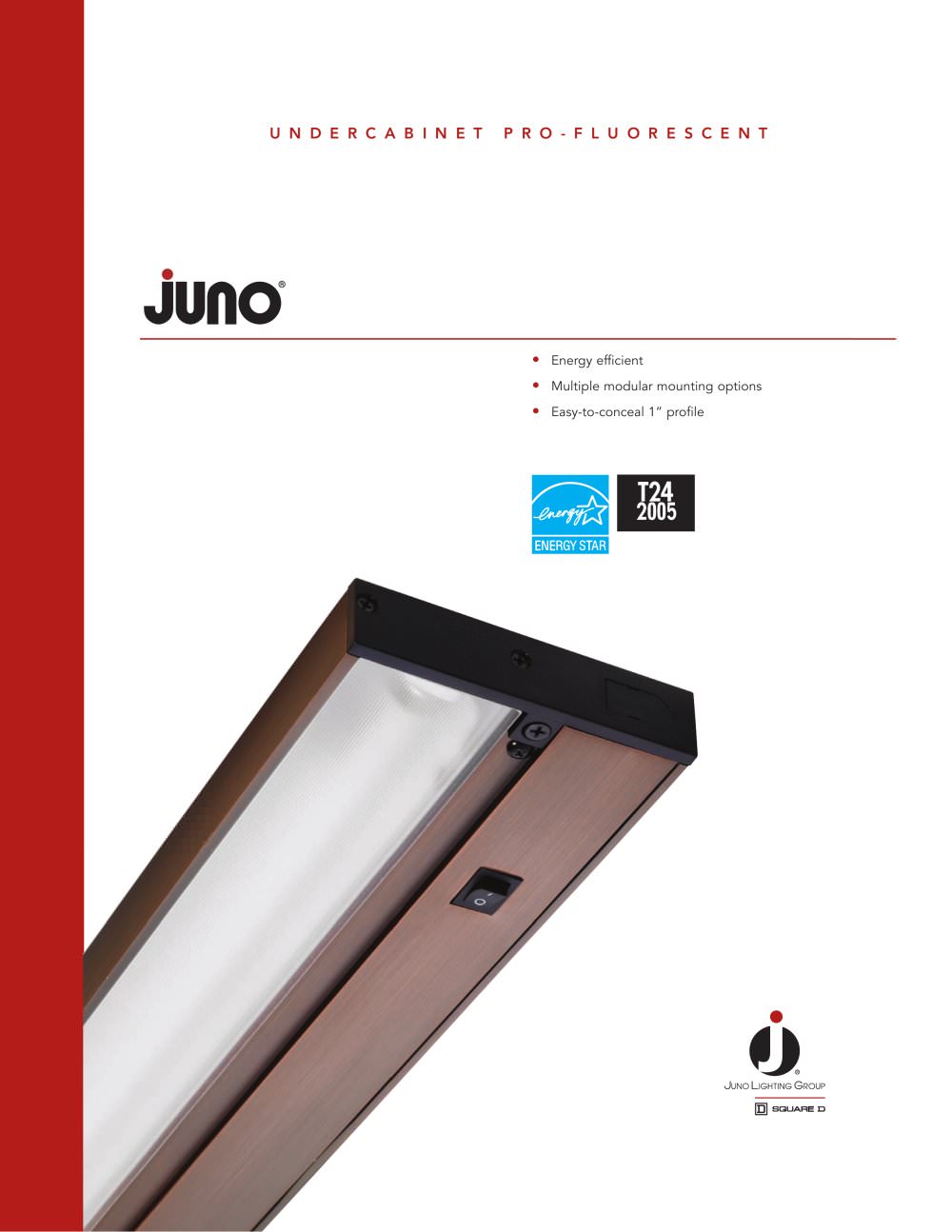

UNDERCABINETPRO-FLUORESCENT > Energy efficient Օ > Multiple modular mounting options > Easy-to-conceal 1Ք profile size="-1">
Open the catalog to page 1
Juno Pro-Fluorescent offers highly efficient T5 illumination in thepopular Pro-Series modular design to provide an energy efficientundercabinet lighting solution ideal for residential and commercialapplications. The Pro-Fluorescent design features premium extrudedaluminum construction in a shallow, easy-to-conceal 1 profile. Idealfor undercabinet, under shelf, and task lighting, where maximum energy efficiency, long lamp life and cool operation are desired. Pro-Fluorescent fixtures are optimized for fast, permanent installationand are available in four designer finishes to match any decor. Performance...
Open the catalog to page 2
DesignerWhite BrushedSilver BrushedBronze Black > 8", 17 & 26Ԕ Jumper Cords 3-wire Jumper Cord to electrically join fixtures when spaced apart, turning corners, or spanning cabinet frames. Finish: BL-Black, WH-Designer White > Step 2 Connect supply wires to fixture leads usingpush-in connectors. Step 1 Attach supply wiresto rear access cover. Step 3 Mount fixture to cabinet bottom using captive mounting screws. 3-wire grounded cord and plug accessory for portable plug-in installation. 6' Cord and Plug Finish: BL-Black, WH-Designer White > Finish: Direct Wire Module > Optional jumper cord accessory...
Open the catalog to page 3
Products shown in this brochure are covered by U.S. and international patents and patents pending.Specifications subject to change without notice. 2007 JUNO LIGHTING INC. ALLRIGHTSRESERVED.Printed in the U.S.A. LIT-JUNO-UNCAB-UPF 11/07 size="-1">
