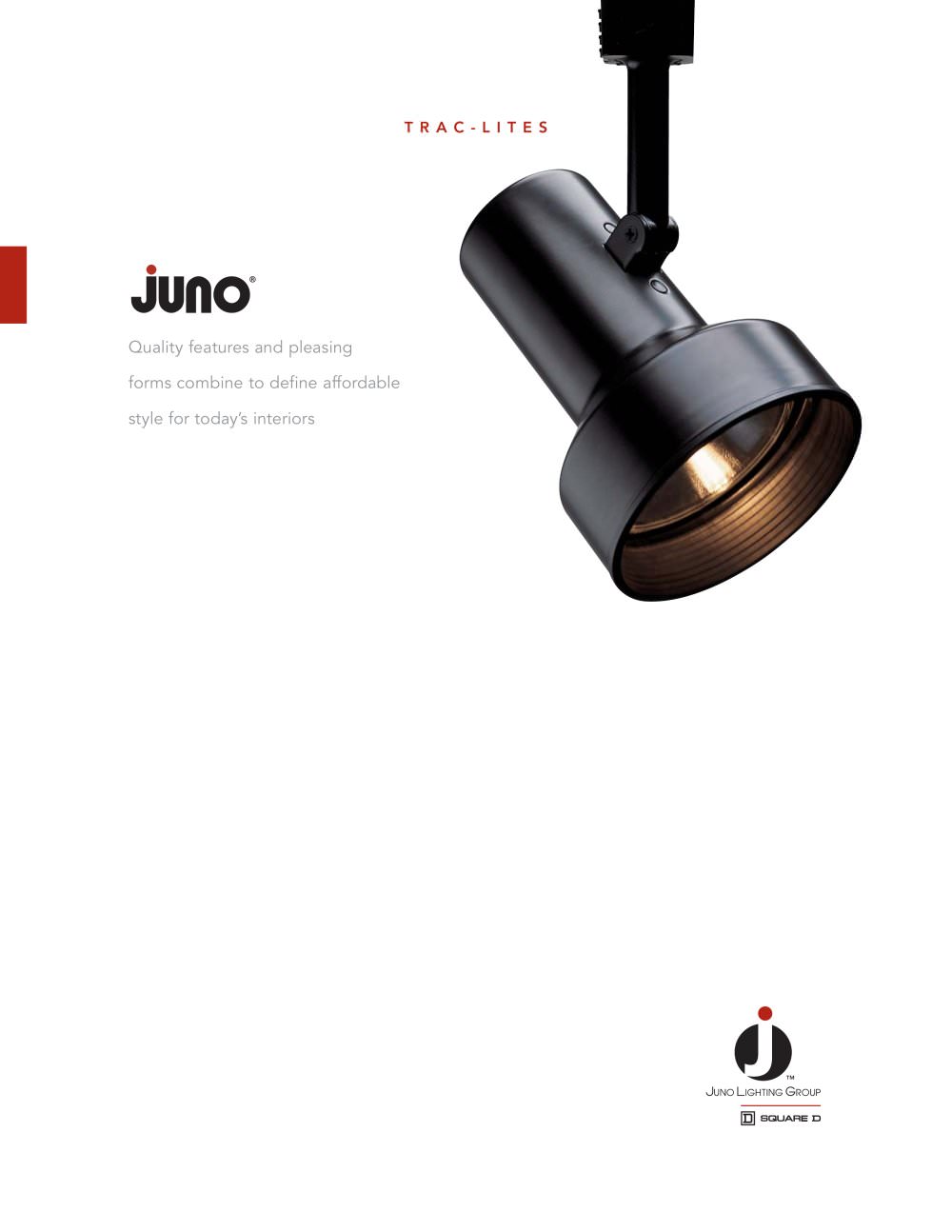

TRAC-LITES Quality features and pleasingforms combine to define affordable style for todays interiors >

Light Control Lenses Light Control Lenses These alter the light distribution of a given lamp, enlarging or elongating it, softening the beam edge or removing striations. Uniformity Lens > Prismatic Spread Lens > UV Filters These museum quality lenses filterout ultraviolet radiation above 400 nanometersto protect fade sensitive art and objects. Linear Spread Lens > Color Correction Filters These correct thelight from a halogen lamp, either to warm it up to approximate incandescent, or cool it down to approximate daylight. Color Correction Filters Color Filters These change white light...

R712BL Black R712WH White > 120V, 35-50W PAR16/MR16 GU10 With black bezel. 2-1/2" dia. x 3-3/4" deep 120V, 35-50W PAR16/MR16 GU10 With black bezel. 2-1/2" dia. x 3-3/4" deep 30- > 45-65W BR30/35- R522W-WH White > 75WPAR30/PAR30LWith white baffle. 4-3/8" dia. x 6-1/8" deep All Trac-Lites fixtures feature an on/off switch and are also compatible with Juno Trac-Master single and two-circuit tracs. >

R713BL Black R713WH White > 120V, 35-50W PAR16/MR16 GU10With black bezel. 2-5/8" dia. x 4-1/8" deep 120V, 35-50W PAR16/MR16 GU10 With black bezel. 2-5/8" dia. x 4-1/8" deep R510BL Black R510WH White 30- > 50W R20/35-50W PAR20Without baffle. 3-1/2" dia. x 5" deep 30- > 50W R20/35-50W PAR20Without baffle. 3-1/2" dia. x 5" deep R511B-BL Black R511B-WH White 30- > 50W R20/35-50W PAR20With black baffle. 3-1/2" dia. x 5" deep 30- > 50W R20/35-50W PAR20With black baffle. 3-1/2" dia. x 5" deep R511B-PB Polished Brass R511W-WH White 30- > 50W R20/35-50W PAR20With black baffle. 3-1/2" dia. x 5" deep...

R531BL Black R531WH White 35- > 50W PAR203-1/2" dia. x 3-5/8" deep 35- > 50W PAR203-1/2" dia. x 3-5/8" deep R531SC Satin Chrome 35- > 50W PAR203-1/2" dia. x 3-5/8" deep R532BL Black R532WH White 35- > 75W PAR305-1/4" dia. x 4-1/4" deep 35- > 75W PAR305-1/4" dia. x 4-1/4" deep R532SC Satin Chrome 35- > 75W PAR305-1/4" dia. x 4-1/4" deep R534BL Black R534WH White 45- > 120W PAR385-1/8Ԕ dia. x 6"deep 45- > 120W PAR385-1/8 dia. x 6"deep All Trac-Lites fixtures feature an on/off switch and are also compatible with Juno Trac-Master single and two-circuit tracs. >

R552BL Black 35- R552WH White > 75W PAR304-7/8"dia. x 4-3/8"deep 35- > 75W PAR304-7/8"dia. x 4-3/8"deep R552SC Satin Chrome All Trac-Lites fixtures feature an on/off switch and are also compatible with Juno Trac-Master single and two-circuit tracs. 35- > 75W PAR304-7/8"dia. x 4-3/8"deep

60W A19 Max.Complete unit includes 48" fieldadjustable pendant cord and blue glass cone shade. Includes on/off switch. Lamp supplied by others. 10" dia. x 6-5/8" height 60W A19 Max. Complete unit includes 48" field adjustable pendant cord and white glass cone shade. Includes on/off switch. Lamp supplied by others. 10" dia. x 6-5/8" height > 12V, 50W Max. T4 Halogen GY6.35 Bi-Pin Capsule Complete unit includes 12V, 50VAsolid state electronic transformer, 48" field adjustable pendant cord, blue glass cone shade and 12V, 50W halogen lamp. 12V, 50W Max. T4 Halogen GY6.35 Bi-Pin Capsule Complete...

End Feed Connector and Outlet Box Cover T-Bar End Feed > Wiring compartment contains standard 1⁄2"K.O.s. Feeds Trac from above when T-Bar is directlyabove Trac. For outlet box feed. Includes outlet box cover, fixture strap, and ground screw. R21BL Black R21WH White R36BL BlackR36WH White End Feed Connector Floating Electrical Feed > Feeds Trac from above with Flex or BX. Accepts standard 1/2" electrical connector. Permits mounting at any point along Trac at outlet box. Includes floating connector, outlet box cover, and Trac dead end. R38BL Black > R38WH White R29BL Black R29WH White Conduit...

Accepts Juno 120V Trac fixtures. Mounts directly to outlet box. 4-3/4"dia. x 5/8"high To attach Trac to inverted tee ceiling. Use two for 2֒ or 4 Trac or three for 6Ғ or 8 Trac. > R40BL BlackR40WH White Flush tile ceiling. > Same as above, for use with drop tile ceilings. > Accepts Juno 12V Trac-Lites > Ү low voltage trac fixtures and decorative pendants. Mounts directly to outlet box. 6-1/2"dia. x 1/2"high For 5⁄16"Rod. Attaches solid5⁄16"threaded rod to Trac. Includes plastic cap, mounting bracket, and hardware. Rod not supplied. > T58BL BlackT58WH White T56 BL BlackT56 WH White Use two...

4֒ Kit with Two FixturesR4K2511W-WH White 30- 4 Kit with Three FixturesR4K3512W-WH White 45- 4Ғ Kit with Three FixturesR4K3713WH White > 50W R20/35-50W PAR20LampsTwo 2 sections of trac, floating feed, mini connector, and two white step cylinder fixtures with white baffles. 65W BR30/35-75W PAR30LLampsOne 4Ғ section of trac, floating feed and three white step cylinder fixtures with white baffles. 120V, 35-50W PAR16/MR16 GUI10 Lamps > Two 2 sections of trac, floating feed, mini connector, and three white step cylinder fixtures with black bezels. 2Ғ Kit with Two FixturesR2K2500WH White 4 Kit...

50W R20 lamp/35-50WPAR20 LampWhite baffle. 23" fixed position trac. > Includes: 12Ւ flexible trac (may be field cut to length) Five 12V, 20W MR16 trac fixtures with lensed MR16 flood (BAB) lamps (included)Օ 12V, 100W surface mount transformer Six mounting stems with hardware > Includes:ՕTwo 16 insulated coppercablesҕ Three 12V, 20W MR16 tracfixtures with lensed MR16 flood (BAB) lamps (included) 12V, 60W Class 2 plug-in transformerՕ Wall-to-wall mounting hardware kit >
