JUNO
Halogen Trac Lighting

Halogen Trac Lighting

Product catalog summary

Overview: The document details innovative fixture designs for Juno's Trac-Master, Trac 12, and Flex 12 systems, emphasizing their versatility and aesthetic appeal for various settings such as residential, retail, hospitality, and commercial environments.

Fixture Designs: Five unique fixture designs are introduced: Cubix™, Xanadu™, Glacis™, Facet™, and Mamba™. These are crafted from die-cast aluminum and available in white, black, and silver finishes. They are compatible with Juno's trac lighting systems and feature concealed wiring for a sleek appearance.

Lighting Specifications: The fixtures support both line-voltage and low-voltage applications. Line-voltage options include PAR20, PAR30, and PAR38 halogen lamps, while low-voltage options use MR16 lamps. They offer 360° rotation and over 100° vertical aiming to prevent dead spots.

Trac Adapter: A custom-designed Trac-Master adapter provides mechanical support and electrical connectivity, featuring copper alloy contacts for optimal conductivity, one and two-circuit capability, and an embossed polarity indicator for accurate installation.

Media Cartridges and Accessories: Optional media cartridges for PAR30 fixtures allow the use of up to two light control accessories. A variety of accessories, including color and UV filters, enhance lighting effects. The Mamba fixture does not accommodate media cartridges due to its design.

Individual Fixture Highlights:

Mamba: Features a front-loading gimbal-ring design, suitable for 75W PAR30, 150W PAR38, and 50W MR16CG lamps.
Xanadu: Known for its sleek design, compatible with 50W PAR20, 75W PAR30, 150W PAR38, and 50W MR16 lamps.
Facet: Offers an asymmetrical design, supporting 50W PAR20, 75W PAR30, 150W PAR38, and 50W MR16 lamps.
Cubix: Combines geometric forms, designed for 50W PAR20, 75W PAR30, 150W PAR38, and 50W MR16 lamps.
Glacis: Inspired by natural forms, suitable for 50W PAR20, 75W PAR30, 150W PAR38, and 50W MR16 lamps.

Specifications:

Trac 12 Cubix: Available in 12V or 24V, 20-50W MR16 lamps, featuring a geometric design with concealed wiring and a unique mounting cylinder.
Glacis: Available for both Trac 12 and Flex 12 systems, with 50W MR16 low-voltage halogen lamps, featuring a truncated conical design.
Mamba: Part of the Flex 12 system, available with 50W MR16CG lamps, notable for its curved design and front-loading gimbal ring.
Facet: Offers an asymmetrical aesthetic, available with 50W MR16 lamps, includes a bayonet-mount media cartridge.
Xanadu: Features a classic conical design, available with 50W MR16 lamps, with concealed wiring.

Light Control Accessories: Juno offers accessories to modify light distribution, including lenses, UV filters, and color correction filters, compatible with various fixtures and supporting up to two accessories simultaneously.

Construction and Finish: All fixtures are made from high-quality, die-cast aluminum and available in finishes such as white, black, and silver.

Additional Information: The document includes a compatibility chart for trac accessories and notes that specifications are subject to change. For more information, readers are directed to visit the Juno Lighting Group website.

Catalog excerpts

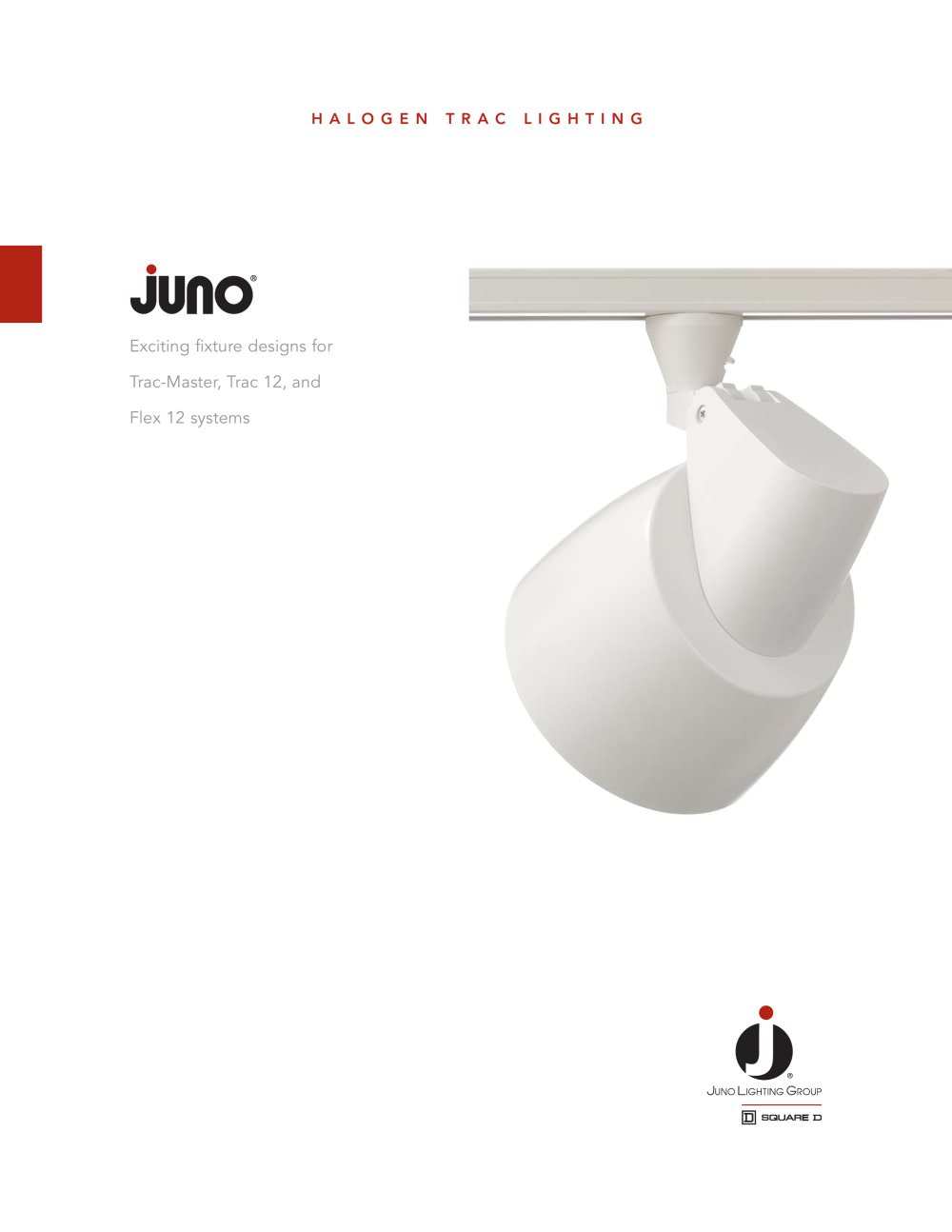

HALOGEN TRAC LIGHTING Exciting fixture designs forTrac-Master, Trac 12, and Flex 12 systems >

Open the catalog to page 1

Whether you need spot, wash or accent lighting, there is afixture/lamp combination ideally suited to the task. For line-voltage applications, choose from PAR20, PAR30, or PAR38 halogen lamps. For low-voltage assignments, choose the versatile MR16. All fixtures rotate a full 360and can be aimed at over 100аfrom vertical to eliminate aiming dead spots. Cubix > , Trac 12 > ή and Flex 12 > , Xanadu > ٙ , Glacis > , Facet > ٙ , Mamba > ٗ meet the trendsetters in halogen trac-lighting fixtures. From Juno where high style and precision engineering go hand-in-hand. Juno halogen trac lighting is breaking...

Open the catalog to page 3

Trac adapter connects in style > A unique, high-style family of fixtures calls for an equally stylish trac adapter.And this custom-designed Trac-Master adapter complements the series inevery way. In fact, it was an integral element of the design process andmatches the fixtures in chic and elegance.The conical, streamlined shape of the adapter blends perfectly with thefixtures and provides both mechanical support and electrical connectivity forTrac-Master installations (Trac 12 and Flex 12 each features its own, uniquemounting system).The new adapter retains the unique features of the original...

Open the catalog to page 4

T863 T868 T860 Shown with T537 Transformer Mamba The Mamba is a strikingly original, front loading gimbal-ring design. Gracefully curved and tapered lments flow into a gimbal ring that appears to float, while the gently scooped socket housing reinforces a concave/convex theme. Concealed wiring and sleek trac adapter create an ultra-clean appearance. The Mamba offers interesting details, elegant execution. Mamba for Trac-Master is designed for use with 75W PAR30 and 150W PAR38 line-voltage halogen lamps and 50W MR16CG low-voltage halogen lamps with integral cover glass. Media cartridges are not...

Open the catalog to page 7

1300 S. Wolf Road P.O. Box 5065 Օ Des Plaines, IL 60017-5065PHONE847.827.9880 FAX847.827.2457 Օ junolightinggroup.com Regional Offices &Warehouses: California, Georgia, Illinois, Indiana, New Jersey, Texas, Ontario CN > Products shown in this brochure are coveredby U.S. and international patents and patents pending.Specifications subject to change without notice. 2007 JUNO LIGHTING INC. ALL RIGHTS RESERVED.Printed in the U.S.A. LIT-JUNO-HALOGEN 11/07 size="-1">

Open the catalog to page 24
