JUNO
Energy Saving Lighting Solutions

Energy Saving Lighting Solutions

Product catalog summary

Overview: The brochure from Juno Lighting Group focuses on energy-saving lighting solutions, particularly compact fluorescent down-lights and undercabinet fixtures for residential use. It emphasizes the benefits of ENERGY STAR qualified products, such as energy and cost savings, and compliance with energy codes.

Specifications: The document details 5" and 6" ENERGY STAR qualified housings with compatible trims, including open multipliers, wall washers, and lensed downlights. It also highlights dimming options that replicate incandescent lighting while conserving energy.

Compliance and Standards: Juno and Aculux products meet several regulatory standards, including ENERGY STAR, ASTM E283, IECC, MEC, California Title 24, Washington State Energy Code, and New York State Energy Conservation Construction Code. They are UL and C-UL listed for damp and wet locations.

Product Features: The brochure outlines the advantages of CFL over incandescent lighting, such as higher efficiency, longer lifespan, less heat, and reduced energy bills. It describes the innovative construction of Juno and Aculux CFL Down-Lites, featuring electronic ballasts and reflector designs for optimal performance.

Performance Comparison: A comparison between CFL and incandescent fixtures shows that CFLs provide equivalent or higher illumination with significant energy cost savings. A table compares the performance and costs of a 26W CFL fixture versus a 65W incandescent fixture.

New Products: The brochure introduces new lensed trims, electronic ballast housing options, and dimmable housing options, highlighting the aesthetic appeal of Juno CFL lensed trims available in various finishes and designs.

Product Range: Juno offers a series of energy-saving CFL Down-Lites in various wattages and configurations for new construction and remodel applications. Specific product models, specifications, and compatible trims and accessories are listed.

Features: The Aculux series features deep lamp regression, computer-contoured reflectors for low aperture brightness, and fixed socket positions to maintain optical integrity. Low-iridescent reflectors prevent color separation effects.

Undercabinet Fixtures: Direct-wire fluorescent luminaires are designed for undercabinet and task lighting, offering energy-efficient illumination with cool operation and long lamp life. They come in various sizes with a T5 3000K tri-phosphor lamp and mounting hardware.

Accessories: Accessories for undercabinet fixtures include a 6’ cord and plug for portable installation and a miniature die-cast electronic connector for loop wiring, available in designer white and black finishes.

Index: An index by category lists various housings, trims, and undercabinet fixtures with their respective page numbers for easy reference.

Catalog excerpts

1300 South Wolf Road P.O. Box 5065 Օ Des Plaines, Illinois 60017-5065 > PHONE 847.827.9880 > FAX 847.827.2925 Օ www.junolightinggroup.com Regional Offices & Warehouses: California, Georgia, Illinois, Indiana, New Jersey, Texas, Ontario CN > Printed in U.S.A. 4/07 Rev. 1Products shown in this brochure are covered by U.S. and international patents and patents pending. Specifications subject to change without notice. 2007 JUNO LIGHTING INC.ENERGY STAR and ENERGY STAR mark are registered U.S. marks size="-1">

Open the catalog to page 1

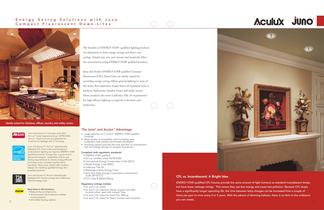

Junoand Aculux IC housings meet IECC Air-Loc > ٮ Code requirements per ASTM E283. Air-Loc > ծ rated trims are pre-gasketed for minimum air leakage with IC housings. Juno and Aculux IC Air-Loc > electronically ballasted CFL Down-Lites and fluorescent undercabinet lighting are listed as ENERGY STAR qualified products. Energy Star, a government- sponsored program, establishes criteria and testing requirements to ensure energy-efficient luminaires meet consistent performance standards. Many local utilities offer builders rebates for installing qualified Energy Star qualified products. > Juno and...

Open the catalog to page 2

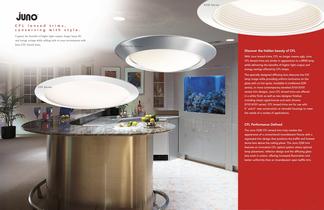

Capture the benefits of higher light output, longer lamp life and energy savings while adding style to your environment with Juno CFL lensed trims. > With Juno lensed trims, CFL no longer means ugly. JunoCFL lensed trims are similar in appearance to a BR30 lamp while delivering the benefits of higher light output and energy savings offered by CFL lamps.The specially designed diffusing lens obscures the CFLlamp image while providing uniform luminance on the glass with no hot spots. Available in traditional (239 series), or more contemporary beveled (5101/6101 series) trim designs, Juno CFL lensed...

Open the catalog to page 4

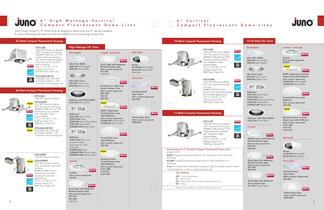

Lensed, continued 120V HPF Electronic Ballast ICPL618E ICPL Fluorescent Housing DownlightsLensed, continued Wall Wash Decorative 120V HPF Electronic Ballast > ENERGY STAR , Air-Loc > Ԯ CFLdouble wall housing does not require separate gasket. Housing may be covered with insulation.13 ICPL Fluorescent Housing > ENERGY STAR , Air-Loc > CFL housing may be covered with insulation. Easy access ballast. 13 > Ultra-Trim Baffle28W-WH White Baffle (Wet Location Approved) Ultra-Trim Baffle 28W-WH 28B-WH Black Baffle 22-WH 1 Drop Opal with Reflector Shower/Closet Light Scoop261W-WH ΢D > 8 "L x 9 > 1 ⁄ >...

Open the catalog to page 5

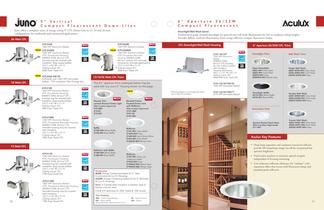

ICPL526E ICPL526RE 120V HPF Electronic Ballast 120V HPF Electronic Ballast > ICPL526EN ICPL526REN 120V NPF Electronic Ballast 120V NPF Electronic Ballast ICPL Fluorescent Housing > ICPL Fluorescent Remodel Housing. ICV6-126/32T Downlight Trims Wall Wash Trims > ENERGY STAR , Air-Loc > Ԯ CFL housing may be covered with insulation. Easy access ballast.13 > ENERGY STAR , Air-Loc > 120V HPF Electronic Ballast vertical CFL remodel housing for remodel applications. 12 > ENERGY STAR, Air-Loc ή 1 CFL housing for use in direct contact with insulation. Housing dimensions: 20 ⁄ > 8 "L x 9 > 1 ⁄ > 8 "W x...

Open the catalog to page 6

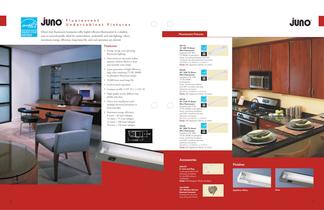

UFL12 > 12" 8W T5 Direct Wire Fluorescent Supplied with 8W T5 3000K tri-phosphor lamp, mounting hardware and 3/8Ք miniature die-cast electrical connector. 12-7/16"L x 2 5/8"D x 1-1/16"H > Finish: WH-Appliance White, SL-Silver UFL22 > 22" 14W T5 Direct Wire Fluorescent Supplied with 14W T5 HE 3000K tri-phosphor lamp, mounting hardware and 3/8 miniature die-cast electrical connector. 22-3/4"L x 2 5/8"D x 1-1/16"H > Finish: WH-Appliance White, SL-Silver UFL34 > 34" 21W T5 Direct Wire Fluorescent Supplied with 21W T5 HE 3000K tri-phosphor lamp, mounting hardware and 3/8Ԕ miniature die-cast electrical...

Open the catalog to page 7
