Mini Hybrid

Mini Hybrid

Product catalog summary

Mini Freestanding Hybrid Overview
The Mini Freestanding Hybrid is a pre-assembled radiator featuring integrated feet, a Low-H2O heat exchanger, and a removable grille. It includes a Jaga thermostatic H-valve with sleeve couplings and offers connections on either the left or right side. The standard delivery also includes a DBH set for operation, control, and power supply at 12 VDC.

Technical Specifications

Dimensions: Available in various lengths and heights, with fixed feet height of 12.5 cm.
Colours: Eco-friendly, scratch-resistant powder coating available in standard colours like traffic white, sandblast grey, and off-black. Other colours are available per the Jaga colour chart, with surcharges based on unit length.
Order Code: MIFH 028 081 11 XXX F TT KKK, where each segment represents specific features like sleeve coupling, thermostatic head, connector block, colour, type, and length.

Performance and Efficiency

Output: Measured in accordance with EN 16430, with noise levels measured according to ISO 3741:2010.
Correction Factors: Provided for different room temperatures and temperature differences (∆T), with average N-value of 1.10.
Pressure Drop: Detailed for both Type 11 and Type 16, with working pressure at 10 bar.

Guidelines and Recommendations

Flow Noise Limitation: Guidelines provided for maximum power at various ∆T values.
Water Flow: Calculated using specific formulas based on output and temperature differences.

Contact Information
For further advice, appointments can be made at the Jaga Advice Centre, located at Verbindingslaan 16, 3590 Diepenbeek. Contact via phone at +32 (0) 11 29 41 12 or email at [email protected].

Catalog excerpts

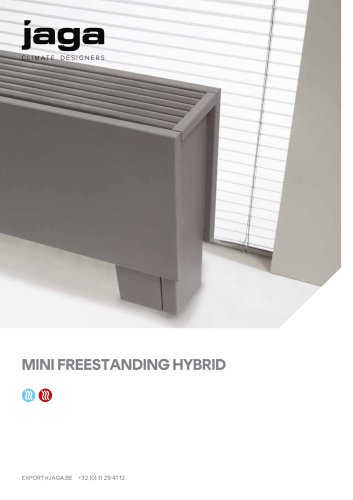

MINI FREESTANDING HYBRID

Open the catalog to page 1

2 - Mini Freestanding Hybrid

Open the catalog to page 2

Guideline for limiting flow noise 7 CLIMATE DESIGNERS

Open the catalog to page 3

4 - Mini Freestanding Hybrid

Open the catalog to page 4

MINI FREESTANDING HYBRID DIMENSIONS (in mm) STANDARD DELIVERY - pre-assembled radiator on integrated feet, consisting of a one piece casing, feet with pipe guard, DBH set incl. operation, control and power supply 12 VDC. - removable grille - Jaga thermostatic H-valve and sleeve couplings. Connections 3/4” Eurocone in the foot, left or right. - collar in stainless steel effect for the connection side - fixed feet: height 12,5 cm Eco-friendly, scratch-resistant powder coating with high UV-resistance Standard colours - traffic white RAL 9016 (133), soft touch lightly structured satin lacquer - sandblast...

Open the catalog to page 5

Watts Watts Output measured in accordance with EN16430 *Noise measurement according to ISO 3741:2010, at a 2-m distance from the unit and with an assumed room attenuation of 8 dB(A)/room volume 100 m3/reverberation time 0.5 sec. enter colour code enter code connector block enter code thermostatic head fill in sleeve coupling code 6 - Mini Freestanding Hybrid

Open the catalog to page 6

CORRECTION FACTORS The indicated outputs at AT 50 are exact values, measured in accordance with EN442. This table provides a calculated value using an average correction factor for all other AT outputs, valid for all dimensions. Click www.jaga.com/selection-tools/to download the calculation tools with the exact outputs. The online calculation tools are kept up to date with the most recent data. Minor output differences between printed tables and the different online calculation tools are therefore completely normal and within the margins of tolerance imposed by the standard. AVERAGE CORRECTION...

Open the catalog to page 7

PRESSURE DROP TYPE 11 AP 8 - Mini Freestanding Hybrid

Open the catalog to page 8

PRESSURE DROP TYPE 16 AP

Open the catalog to page 9

In need of some advice? Make an appointment at the Jaga Advice Centre. Verbindingslaan 16 3590 Diepenbeek +32 (0) 11 29 41 12 [email protected] jaga.com JAGA INTERNATIONAL

Open the catalog to page 10
