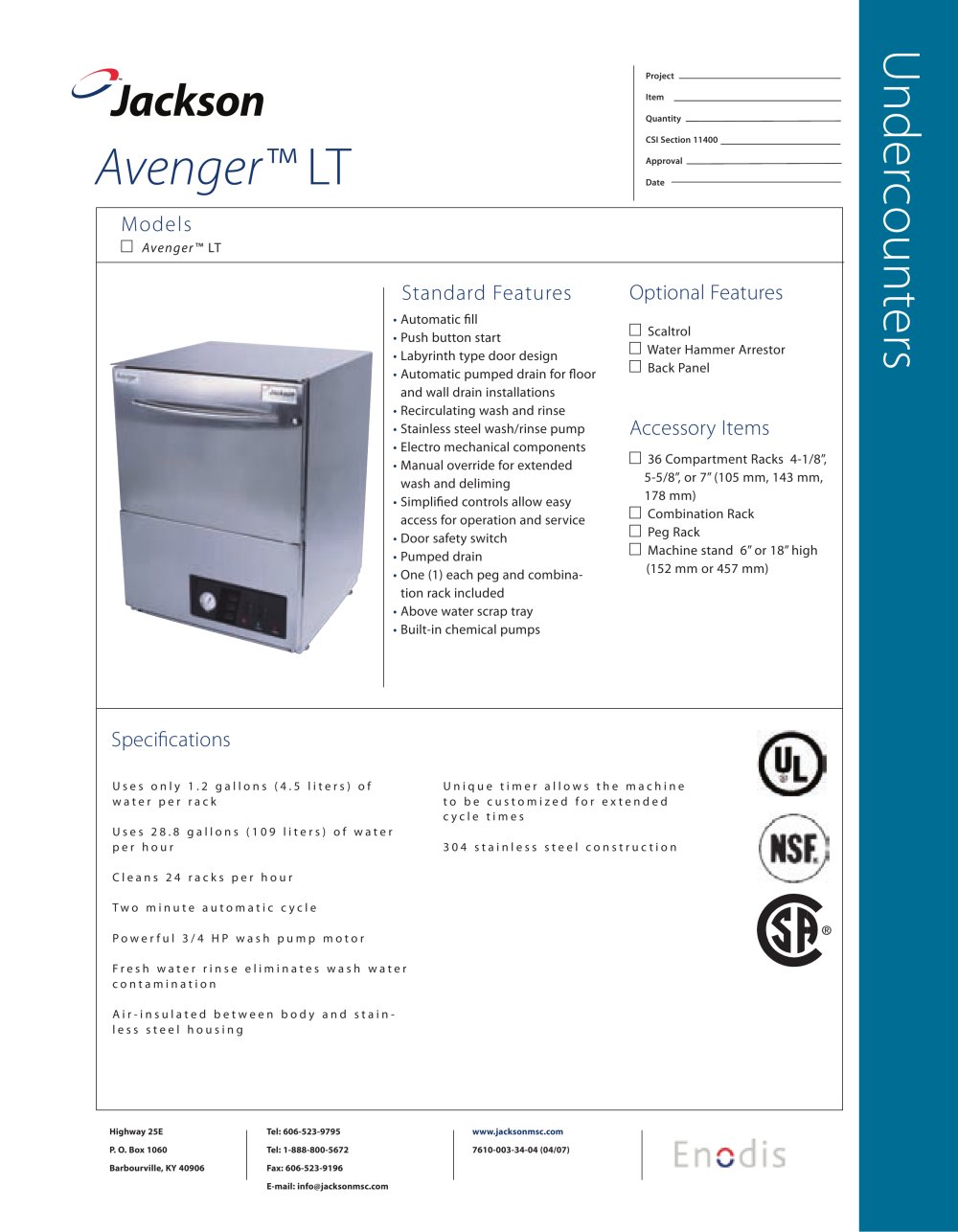

Specifications and Features:
The Avenger™ LT is a high-efficiency undercounter dishwasher designed for commercial use. It uses only 1.2 gallons (4.5 liters) of water per rack and 28.8 gallons (109 liters) per hour, capable of cleaning 24 racks per hour. It features a two-minute automatic cycle powered by a 3/4 HP wash pump motor. The machine includes a fresh water rinse to prevent wash water contamination and is air-insulated between the body and stainless steel housing. The unique timer allows customization for extended cycle times, and it is constructed with 304 stainless steel.

Standard Features:
- Automatic fill and push button start
- Labyrinth type door design
- Automatic pumped drain for floor and wall installations
- Recirculating wash and rinse
- Stainless steel wash/rinse pump
- Electro mechanical components
- Manual override for extended wash and deliming
- Simplified controls for easy operation and service
- Door safety switch
- Pumped drain
- Includes one peg and combination rack
- Above water scrap tray
- Built-in chemical pumps

Optional Features:
- Scaltrol
- Water Hammer Arrestor
- Back Panel

Accessory Items:
- 36 Compartment Racks (4-1/8”, 5-5/8”, or 7” height)
- Combination Rack
- Peg Rack
- Machine stand (6” or 18” high)

Electrical and Water Requirements:
- Approximate total load amps: 115/60/1 10.0
- Wash pump HP: 3/4
- Flow pressure: 15 - 25 PSI
- Waterline size: 1/2 IPS
- Drainline size: 1 3/8 OD

Dimensions and Capacity:
- Shipping weight: 248 lbs (112 kg)
- Shipping cube: 92.5 cu. ft.
- Machine dimensions: Height 38” (965 mm), Width 30” (762 mm), Depth 30” (762 mm)
- Operating capacity: 24 racks per hour, 600 dishes per hour, 864 glasses per hour
- Operating cycle: Wash cycle 56 seconds, Drain time 29 seconds, Rinse time 35 seconds, Total cycle 120 seconds
- Operating temperatures: Wash and Rinse at 140 ˚F (43.3 ˚C)

Contact Information:
Jackson MSC, Highway 25E, P.O. Box 1060, Barbourville, KY 40906
Tel: 606-523-9795, 1-888-800-5672
Fax: 606-523-9196
Email: [email protected]
Website: www.jacksonmsc.com
