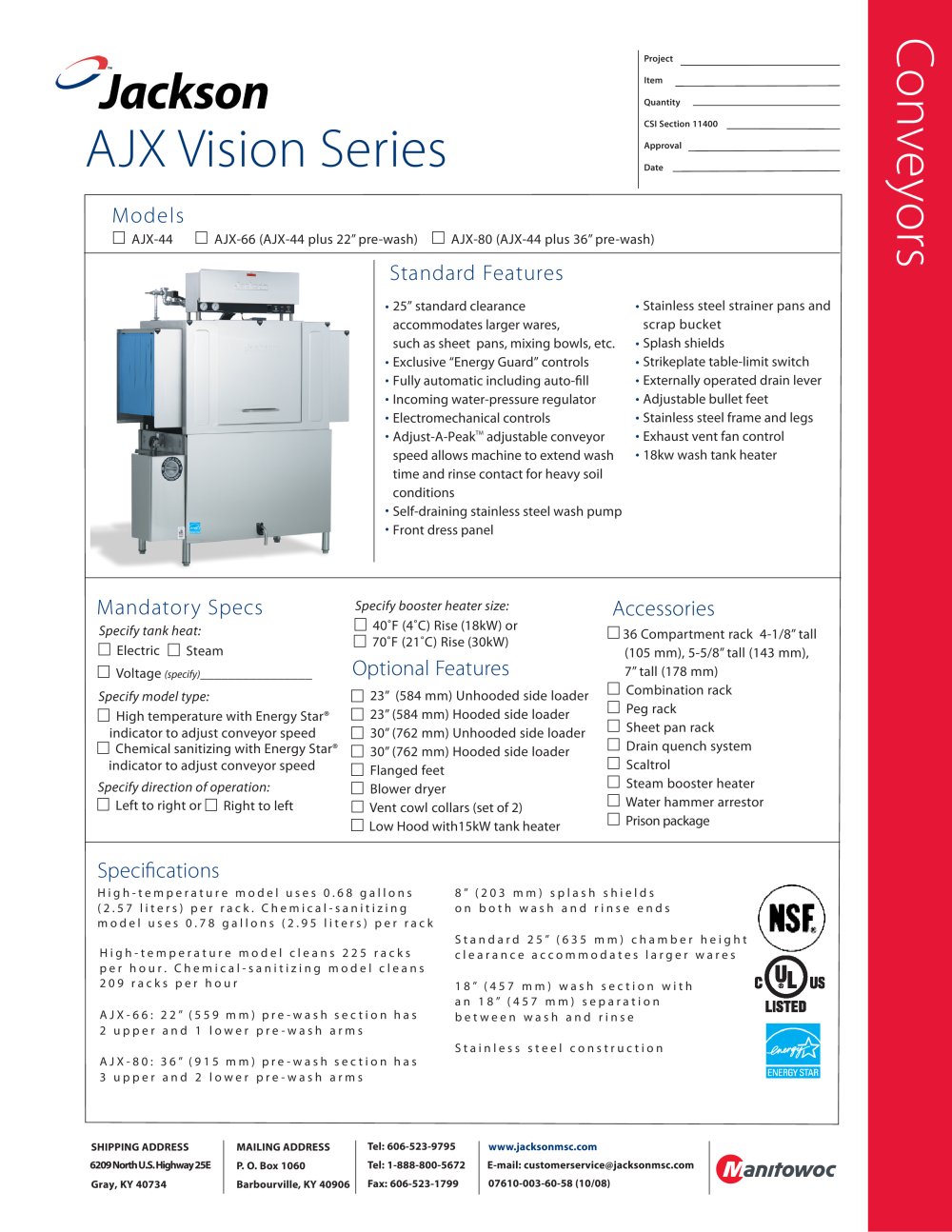

AJX Vision Series
AJX Vision Series
- Voltage: User-specified.
- Model Type: Includes high temperature with Energy Star® indicator for conveyor speed adjustment.
- Standard Clearance: 25 inches to accommodate larger wares.
- Features: Energy Guard controls, automatic fill, water-pressure regulator, electromechanical controls, and Adjust-A-PeakTM adjustable conveyor speed for heavy soil conditions.
- Construction: Stainless steel with self-draining wash pump, strainer pans, and scrap bucket.
- Additional Features: Splash shields, table-limit switch, externally operated drain lever, adjustable bullet feet, and exhaust vent fan control.
- High-Temperature Model: Uses 0.68 gallons per rack, cleaning 225 racks per hour.
- Chemical-Sanitizing Model: Uses 0.78 gallons per rack, cleaning 209 racks per hour.
- Pre-Wash Sections: AJX-66 has a 22-inch section, AJX-80 has a 36-inch section.
- Construction: Stainless steel with 18-inch wash section and separation between wash and rinse.
- Various rack configurations including compartment, combination, peg, and sheet pan racks.
- Drain quench system, Scaltrol, steam booster heater, and water hammer arrestor.
- Side loaders available in hooded and unhooded versions.
- Additional options include flanged feet, blower dryer, vent cowl collars, and low hood with 15kW tank heater.
- Booster Heater Sizes: 40°F (18kW) or 70°F (30kW) rise.
- Direction of Operation: Can be specified as left to right or right to left.
- Tank Heat Options: Electric or steam.
- Prison Package: Available for secure installations.
- Wash Tank kW: 18 kW for High Hood models; 15 kW for Models 44, 66, 80 Electric Low Hood.
- Pump Motors:
- 22” Pre-wash Pump Motor: 1 HP
- 36” Pre-wash Pump Motor: 2 HP
- Wash Pump Motor: 2 HP
- Pre-Wash Capacity:
- 22” Pre-Wash: 120 GPM / 454 LPM
- 36” Pre-Wash: 270 GPM / 1022 LPM
- Wash Pump Capacity: 270 GPM / 1022 LPM
- Conveyor Motor HP: 1/4 HP
- Conveyor Speed:
- High temperature: 6.2 FPM / 1.9 M
- Chemical sanitizing: 5.75 FPM / 1.75 M
- Input End: 200 CFM
- Output End: 400 CFM
- Total CFM: 600 CFM
- Steam Connection: 3/4 inches IPS
- Steam Flow Pressure: 10-20 PSIG
- Consumption @ 15 PSIG: 60 lbs./hr.
- High-temperature Chemical Sanitizing:
- Racks per Hour: 225
- Gallons per Hour: 153
- Gallons per Rack: .68
