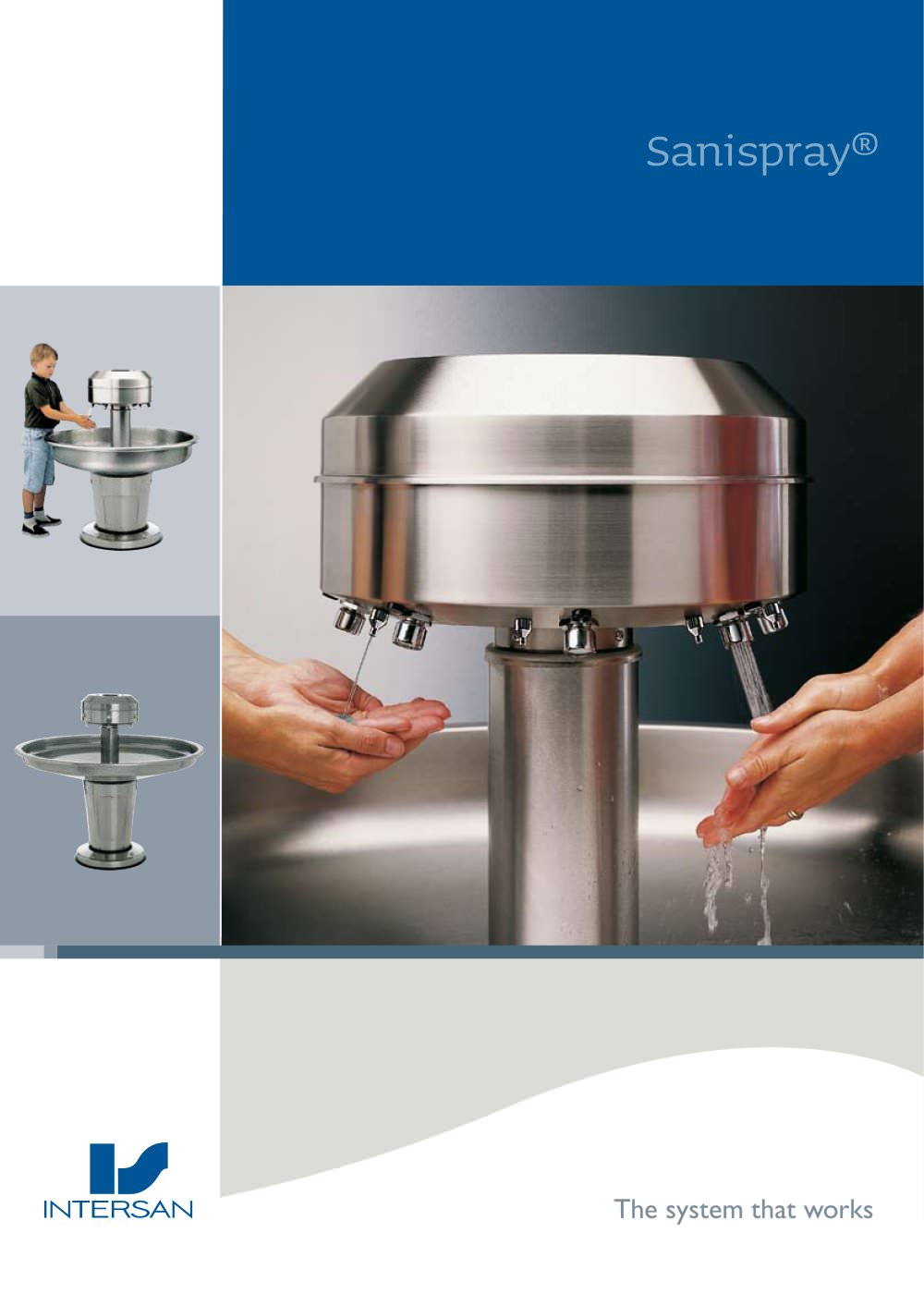

Sanispray® The system that works

flexible Ø pl 1370 mm 3 Ø pl 1370 mm 995 mm 5 4 Flexible lay-out - Flexibles Design Sanispray® Hygienic and Aesthetic The Intersan Sanispray® is a stainless steel (AISI 304) washfountain. The fixture consists of a pre-assembled pedestal, bowl, sprayhead and an optional soap dispenser. The one piece deep-drawn stainless steel bowl is polished to a shining finish making it extremely appropriate for hygienic applications. The parabolic shape of the bowl combined with the center set drain makes for a self-cleaning and self-draining unit and avoids standing, dirty water in the bowl. The...

SANISPRAY® washfountains and anthropometry Choose your most comfortable height Junior Height (JH) for our youngest customers The junior height Sanispray® has a rim height between 650 mm and 680 mm. Anthropometric data suggest that an ideal rim height for children between 6 and 9 years is less than 710 mm. The junior height Sanispray® is available with an electronic activation in which water runs as of hands are detected in the detection field and the water stops running as soon as hands leave the detection area. As an alternate the unit is also available with self-closing taps or piezo...

CNF Model Collective foot control with spray nozzles Water distribution head made of stainless steel AISI 304, equipped with 8, 6, 5, 4 or 3 vandalproof spray nozzles which have integrated automatic flow controls (flow rate : 1,9 l/min.). The collective foot control directly activates a pneumatic valve concealed in the pedestal. As long as the foot control is depressed, water will flow out of all spray nozzles simultaneously. Option L*. CFF Model Collective foot control with sprayhead Riser column with sprayhead (sectional for semicircular and corner models) made of stainless steel AISI...

INH Model Individual control with hand push buttons Water distribution head made of stainless steel type AISI 304 with individual hand control through 8, 6, 5, 4 or 3 robust hand push buttons that activate an equal number of pneumatic metering valves (adjustable cycle : 5 to 120 seconds). Each vandal-resistant nozzle has a built-in automatic flow control limiting the flow rate to 1,9 L/min. Option L*. INF Model Individual foot control with floor push buttons Water distribution head made of stainless steel type AISI 304 with individual foot control through 8, 6, 5, 4 or 3 robust floor push...

Individual Controls IMH Model Distribution ring with mixers The column is made of stainless steel AISI 304 with chromed distribution head composed of 2 separate chambers for hot and cold water, fitted with individual mixers (8 or 6 for circular, 5 or 4 for semi-circular and 3 for corner models). With soap tray (T) made of AISI 304 or liquid soap dispenser (L*) for bags. IRH Model Distribution ring with cw taps The column is made of stainless steel AISI 304 with chromed distribution head composed of a single chamber for single taps for cold or tempered water (8 or 6 for circular, 5 or 4 for...

Water-conserving nozzles with automatic flow controls 1,9 l/min Wassersparende Sprühdüsen mit automatischen Durchflußbegrenzern 1,9 l/min Passive heat sensor Passiver Wärmesensor Nothing is more obvious than using human warmth to obtain water and soap from a plumbing fixture. After all, why send out signals to try and register the presence of a hand when you can detect the hand itself ? Nichts liegt doch näher, als die natürliche Körperwärme zur Steuerung von Wasser und Seife in einem sanitären System zu verwenden. The Master Control Unit registers pulses from the heatsensors and monitors...

Foodindustry Nahrungsmittelindustrie A unique patented system The no-touch operation of Sanispray® Electronics is based on passive detection technology, in contrast to active systems that emit signals continuously. The INTERSAN system does not emit anything at all, but remains in a quiescent state until a user is being detected. The sensor only reacts to the temperature of hands within a three-dimensional detection field to control the operation of a solenoid valve. This prevents influences from external sources that might cause unwanted activation, such as from light sources, noise,...

Passive detection technology - passives Detektionssystem Hands-off water and soap operation Through the hands-free operation of water and soap, users no longer have to worry about the risk of infections and/or the spread of germs that may arise from contact with the fixtures. Maximum water-savings Electronic hands-free water supply systems are water-conserving in design and function. Through precise micro-processor control, and through the use of accurate flow regulators, both the duration and the volume of water spent are controlled, thus offering maximum water-savings without sacrificing...

10 maxi ISX Model - Individual - Maxi-spray Operation When a user places his or her hands underneath one of the individual nozzles, the water flows for at least 8 seconds and for as long as required. Only when the sensor detects the withdrawal of the hands for a period of time, the Master Control Unit will initiate a signal to cease the water flow. As each individual nozzle has its own sensor, solenoid valve and timing device system, it functions independently from all the other sensors, valves and timers connected to the Master Control Unit. Characteristics - Maximum water savings : flow...

11 ISN Model - Individual - Mini-spray Operation As soon as a user presents his or her hands underneath one of the individual nozzles, the water starts flowing from it. Water flows 5 seconds minimum and maximum for 30 seconds. An interval of 2 seconds is programmed between 2 cycles. Each individual nozzle has its own sensor, solenoid valve and timing device system and thus functions independently from all other sensors, valves and timers connected to the Master Control Unit. Characteristics Important water conserving features - Maximal water-savings: water only flows when required. Flow...
