Self-supporting Curved System

Product catalog summary

System Description: The Curved Self-Supporting Roofing system is designed to cover wide spans up to 13 meters using a single piece. It is suitable for various applications such as sports facilities, agricultural buildings, industrial premises, warehouses, parking, and logistics centers.

Components: The system comprises several key components:

Inner Profile: Options include INCO 44.4, INCO 44.6, and INCO 70.4.
Insulation: Typically rock wool felt laid continuously over the roof.
Spacer System: Metal framing with omega-shaped profiles for a double skin roof.
Outer Profile: Upper corrugated sheet, which may be free-standing.
Support Beams and Tension Bar: Structural elements for spans larger than 7 meters.

Calculations and Tests: The system's effective characteristics have been calculated in collaboration with the Valencia Polytechnic University. Tests based on EUROCODE-3 validate the theoretical results. Personalized calculation reports are available upon request.

Advantages: The system offers reduced weight, rapid assembly, improved aesthetics, high durability (up to 25 years), efficient transport, and versatility in using metal or concrete structures.

Products:

INCO 44.4 and INCO 44.6 Curved: Suitable for spans up to 7 meters, with thicknesses ranging from 0.6 to 1.0 mm.
INCO 70.4 Curved: Suitable for spans up to 13.3 meters, with similar thickness options.

All products are made from high-quality materials such as S250GD, galvanized, pre-lacquered, PVDF, and HDX.

Installation and Assembly: The installation involves placing the inner self-supporting profile, installing the spacer system, adding insulation, and fixing the outer profile. The profiles can be installed on both metal and concrete structures.

Fixation: Various fixation methods are available, including self-tapping screws for sheet-to-sheet and concrete screw anchors for sheet-to-concrete structures.

Projects: The system has been implemented in various locations, including the Highway V-31 in Valencia and Alicante.

Catalog excerpts

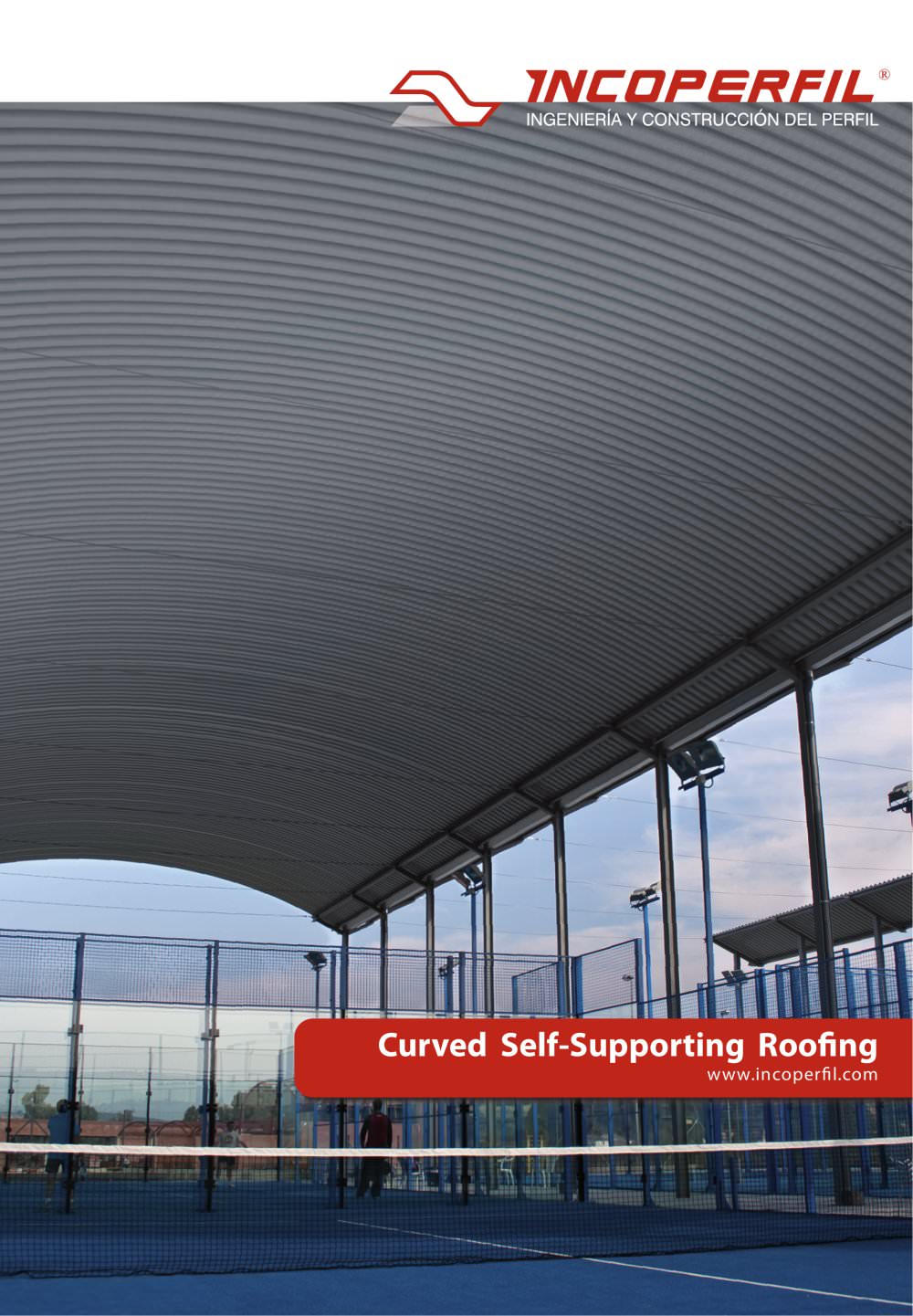

Curved Self-Supporting Roofing www.incoperfil.com

Open the catalog to page 1

INGENIERÍA Y CONSTRUCCIÓN DEL PERFIL Ingeniería y Construction del Perfil S.A. has developed the Self-Supporting Curved Roofing system, where the curved profile is able to support the loads and transmit them to the supports without intermediate structure. Self-Supporting Curved System allows covering a wide span (up to 13 meters) with only This system is broad in scope: sports facilities, agricultural buildings, industrial premises, warehouses, parking and logistics Centre. Inner profile. Free-standing covering element, any of the following products could be used- INCO 44.4, INCO 44.6, INCO 70.4-....

Open the catalog to page 2

INGENIERÍA Y CONSTRUCCIÓN DEL PERFIL Self-supporting curved roof. Spans up to 7 meters. Base Material Quality S250GD / Galvanized / Pre-lacquered / PVDF/HDX, etc. Perforated for Acoustic Applications, Arched Skylights, etc. Self-supporting curved roof. Spans up to 7 meters. Base Material Quality S250GD / Galvanized / Pre-lacquered / PVDF/HDX, etc. Perforated for Acoustic Applications, Arched Skylights, etc. Self-supporting curved roof. Spans up to 13,30 meters. Base Material Quality S250GD / Galvanized / Pre-lacquered / PVDF/HDX, etc. Perforated for Acoustic Applications, Arched Skylights, etc....

Open the catalog to page 3

Intermediate Beam Self-tapping Screw/Cast Steel Sheet- Concrete Structure* Concrete Screw Anchor / Cast Steel 1. Inner Self-Supporting Profile * Please contact with the structure and fixation manufacturer - Place the inner self-supporting profile with the spacer trim - Install the spacer system (omega shaped profiles) over the inner self-supporting profile. - Place the insulation, usually consisting of rock wool felt, to form a double skin roof. - Fixation of the outter profile on the spacer system. The Self-Supporting Profiles could be installed in metal and concrete structures Intermediate...

Open the catalog to page 4

PROJECTS INCO 44.4 / 44.6 Curved INCO 70.4 Curved

Open the catalog to page 5

* , • DESARROLLO REGIONAL UNA MANERA DE HACER EUROPA INGENIERIA Y CONSTRUCCION DEL PERFIL Ingeniería y Construcción del Perfil S.A. Carrer Nou, n° 16-27 | Pol. Industrial Mas del Pollo 146469 Beniparrell | Valencia |T+34 961 211 778 F+34 961 211 504 | [email protected] I www.incoperfil.com I ngeniería y Construcción del Perfil S.A. All rights reserved.

Open the catalog to page 6
