P09FNE3

Product catalog summary
Colour Range: The appliance offers a variety of color options including Blue Grey, Antique White, White, Blue, Stainless Steel, Matt Graphite, Glossy Black Glass, Burgundy Red, Emerald Green, and RAL Classic as an optional choice.
Finishes: Optional finishes for knobs, handles, and frames are available in Brass, Copper, Chrome, and Burnished.
Configuration: The appliance is equipped with 6 burners and a fry top, featuring a primary oven model OV 80 E3 with an energy class of A+. The oven operates between 30-300°C, includes electronic temperature control, double internal lighting, automatic light switch-on, a full glass oven door with soft-closing, and triple glass for safety.
General Features: The oven has a muffle with easy clean enamel, internal dimensions of 64.5×36.5×41 cm, and a capacity of 97 liters. It offers steam discharge with dry or moist cooking options, a folding grill heating element, a rotisserie spit, and a thermostat with an electronic probe.
Cavity Features: The oven's maximum input is 3.4 kW, with a top electrical heating element of 1200 W, a bottom element of 1350 W, an electric grill of 2150 W, and a circular heating element of 2100 W.
Functions: The appliance supports various cooking functions such as pizza, quick start, multiple fan cooking, intensive cooking, fan grill cooking, and ECO cooking. It also features different burner configurations, including a double ring burner and a fry top plate double burner.
Technical Drawing & Dimensions: Technical drawings and dimensions are provided for installation and fitting purposes.
Cooking Functions: The appliance offers cooking functions like cooking from above and below, wet cooking, normal static cooking, and ECO cooking for versatile cooking methods.
Induction Zones: The appliance includes multiple induction zones with varying diameters and power outputs, such as a bridge induction zone, and zones with specific power ratings.
Technical Specifications: The document includes technical drawings and dimensions for installation, energy class details, operating temperature range, and features like electronic temperature control and a soft-closing door.
Oven Features: The primary oven has a 97-liter capacity, a full glass door, high-density insulation, a child safety mechanism, steam discharge options, and a rotisserie spit.
Design and Finishes: The appliance is available in various colors and optional finishes for knobs, handles, and frames.
See more

Catalog excerpts

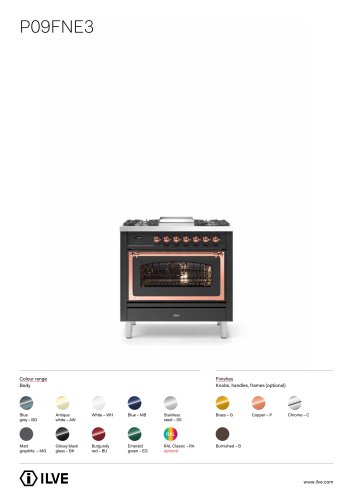

P09FNE3-1

Colour range Body Finishes Knobs, handles, frames (optional) Glossy black glass – BK

 Open the catalog to page 1
P09FNE3-2

Double ring burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top electrical heating...

 Open the catalog to page 2
P09FNE3-3

Colour range FinishesKnobs, handles, frames (optional) Blue Glossy black glass - BK Brass - G Copper - P Chrome - C Optional solid door version Noblesse frames optional Order code: add letter “Q” before the “N” letter optional

 Open the catalog to page 3
P09FNE3-4

Double ring burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top electrical heating...

 Open the catalog to page 4
P09FNE3-5

Colour range Body Finishes Knobs, handles, frames (optional) Glossy black glass – BK

 Open the catalog to page 5
P09FNE3-6

Double ring burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top electrical heating...

 Open the catalog to page 6
P09FNE3-7

Colour range FinishesKnobs, handles, frames (optional) Blue Glossy black glass - BK Brass - G Copper - P Chrome - C Optional solid door version Noblesse frames optional Order code: add letter “Q” before the “N” letter optional

 Open the catalog to page 7
P09FNE3-8

Double ring burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top electrical heating...

 Open the catalog to page 8
P09FNE3-9

Colour range Body Finishes Knobs, handles, frames (optional) Glossy black glass – BK

 Open the catalog to page 9
P09FNE3-10

Double ring burner Fish burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top...

 Open the catalog to page 10
P09FNE3-11

Colour range FinishesKnobs, handles, frames (optional) Brass - G Copper - P Glossy black glass - BK Optional solid door version Noblesse frames optional Order code: add letter “Q” before the “N” letter optional

 Open the catalog to page 11
P09FNE3-12

Double ring burner Fish burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top...

 Open the catalog to page 12
P09FNE3-13

Colour range Body Finishes Knobs, handles, frames (optional) Glossy black glass – BK

 Open the catalog to page 13
P09FNE3-14

Double ring burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top electrical heating...

 Open the catalog to page 14
P09FNE3-15

Colour range FinishesKnobs, handles, frames (optional) Brass - G Copper - P Glossy black glass - BK Optional solid door version Noblesse frames optional Order code: add letter “Q” before the “N” letter optional

 Open the catalog to page 15
P09FNE3-16

Double ring burner Double ring Dual burner General features Cavity features • Electronic temperature control • Lighting double internal light • Automatic light switch-on when door opens • Full glass oven door • Soft-closing door • Door glass with triple glass (EN60335-2-6-11.101) • High density insulation • Ventilation cooling tangential • Child safety • Muffle with easy clean enamel • Internal dimensions (WxHxD) 64,5x36,5x41 cm • Steam discharge controlled with dry or moist cooking option Folding grill heating element Rotisserie spit diagonal Thermostat with electronic probe Top electrical heating...

 Open the catalog to page 16

All ILVE catalogs and technical brochures

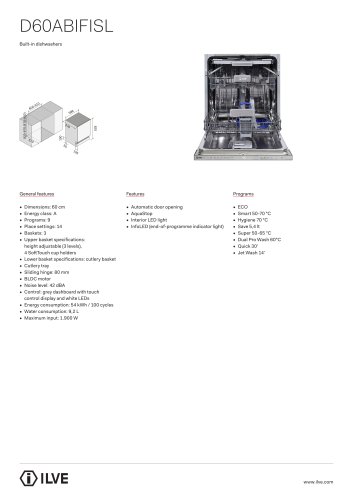

  1. D60ABIFISL
    D60ABIFISL

    1  Page

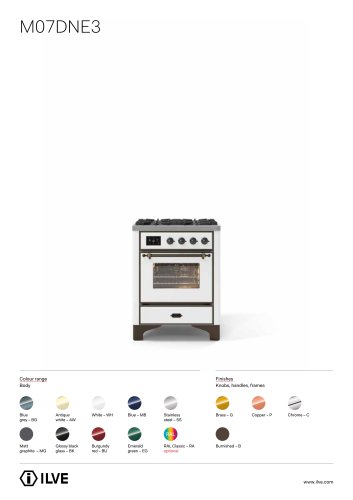

  2. M07DNE3
