LumaView SWX75

LumaView SWX75
2Pages

Catalog excerpts

When you require tough, mission critical monitoring in low lightor completely dark conditions, LumaView outperforms all other illuminators. LumaView enables IR-sensitive CCTV cameras to produce high quality images under night time conditions without imposing intensive, obtrusive, and visible light illumination.Designed for efficiency from top to bottom, LumaView employsIR-enhanced output 50 mm diameter reflectors offering maximum output, reliability, and bulb life. The large area heatsink causes excess heat to be quickly conducted away from thebase of the bulbs, prolonging bulb life to greater than 4000 hours. A required external power supply comes with a built-in photocell that detects changes in ambient light level. When conditions grow dark, it switches on the IR illuminator,offering longer bulb life. Choose from three types of filters to suit your specificapplication: overt illumination produces a distinct red glow that warns of the presence of IR light (715 nm), semi covert illumination produces a faint red glow that can be detected with atrained eye (850 nm) and full covert illumination avoids any red glow, making it impossible to detect the presence of IR light (950 nm)Modular and versatile, LumaView is available with bulbs in threedistinct configurations and filters for three illumination settings. Since the filter and bulbs areindependent of one another, should one fail, then only one needs to be replaced without total loss of illumination (SWX200 only).Use LumaView anywherenight time surveillance is required andnormal lighting is too expensive or prohibited. Applications include: military, law enforcement, perimeter security, prisons, airports, traffic monitoring, customs agencies, facility monitoring and schools.ΕEnables IR sensitive cameras toproduce quality images under nighttime conditionsBulbs available in three distinctconfigurations: spot, medium flood and flood beamՕExcess heat is conducted away fromthe bulbs, prolonging bulb life Filters available for three illuminationsettings, from overtՖvisible light to covertinvisible light ֕Replace bulbs and filters without anyloss of illumination (SWX200 only)Push-on rubber molds ease filterreplacementՕStandard filters are interchangeablebetween illuminatorsCombine different bulbs and filters(SWX200) for beam flexibilityՕWeather sealed for indoor or outdoor usePower supply (ordered separately)has built-in photocell that detectschanges in ambient light level >

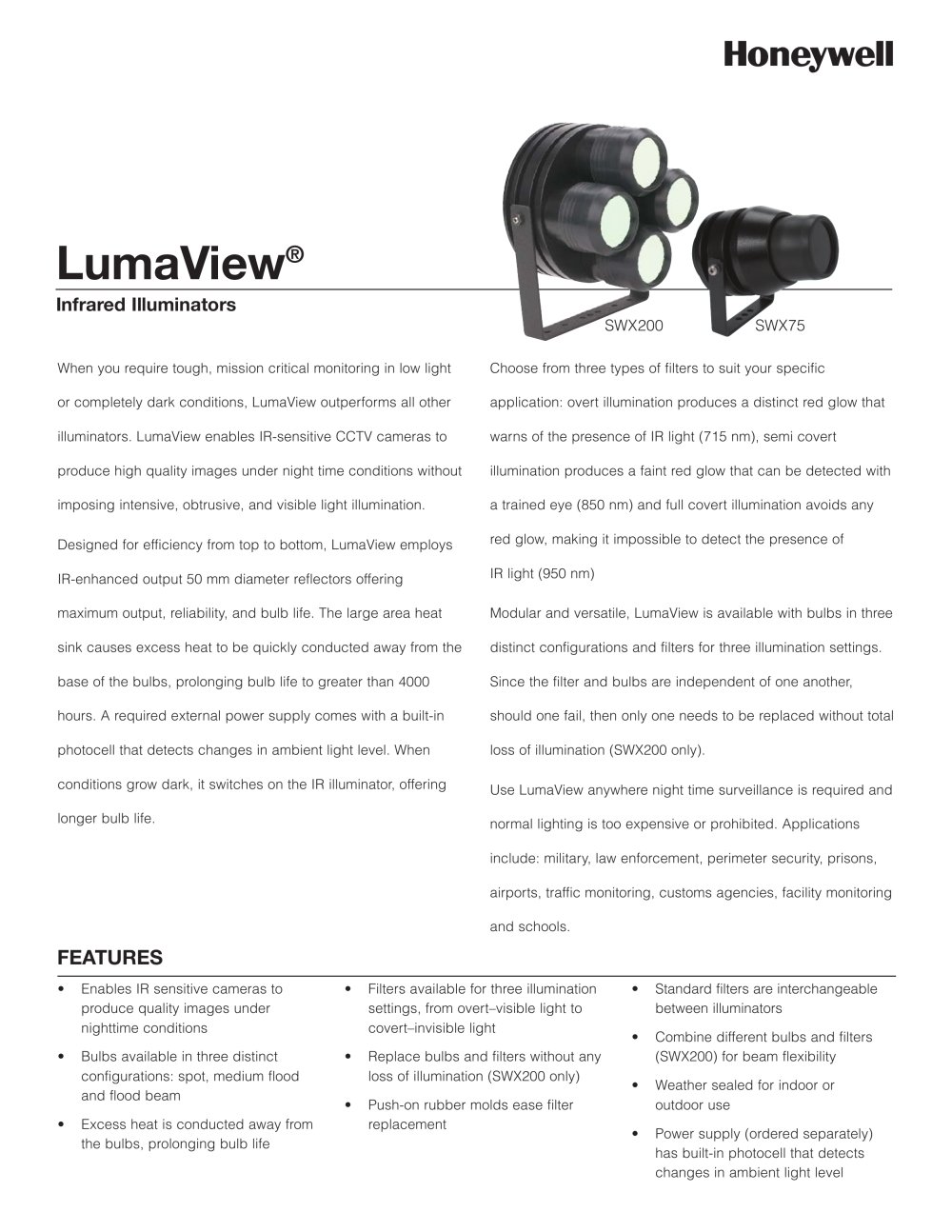

Open the catalog to page 1

Machined Aluminum/Black 12 VAC (nominal 6 amps) 12 VAC (nominal 18 amps) Via 3 pin waterproof connector at rear 715 nm, 850 nm and 950 nm Η A heat barrier glass is fitted between the bulb and filter 50 mm diameter,75 watt IREnhanced integral reflector bulbs in spot (15),medium (25а) or flood (40) configuration 4x50 mm diameter,50 watt IREnhanced integral reflector bulbs in spot (10а),medium (24) or flood (60а) configuration Dusk/dawn auto switching NOTE: Distances that you can expect to achieve using the SWX75 and SWX200 depend on the performance of the camera's spectral response andlenses...

Open the catalog to page 2
