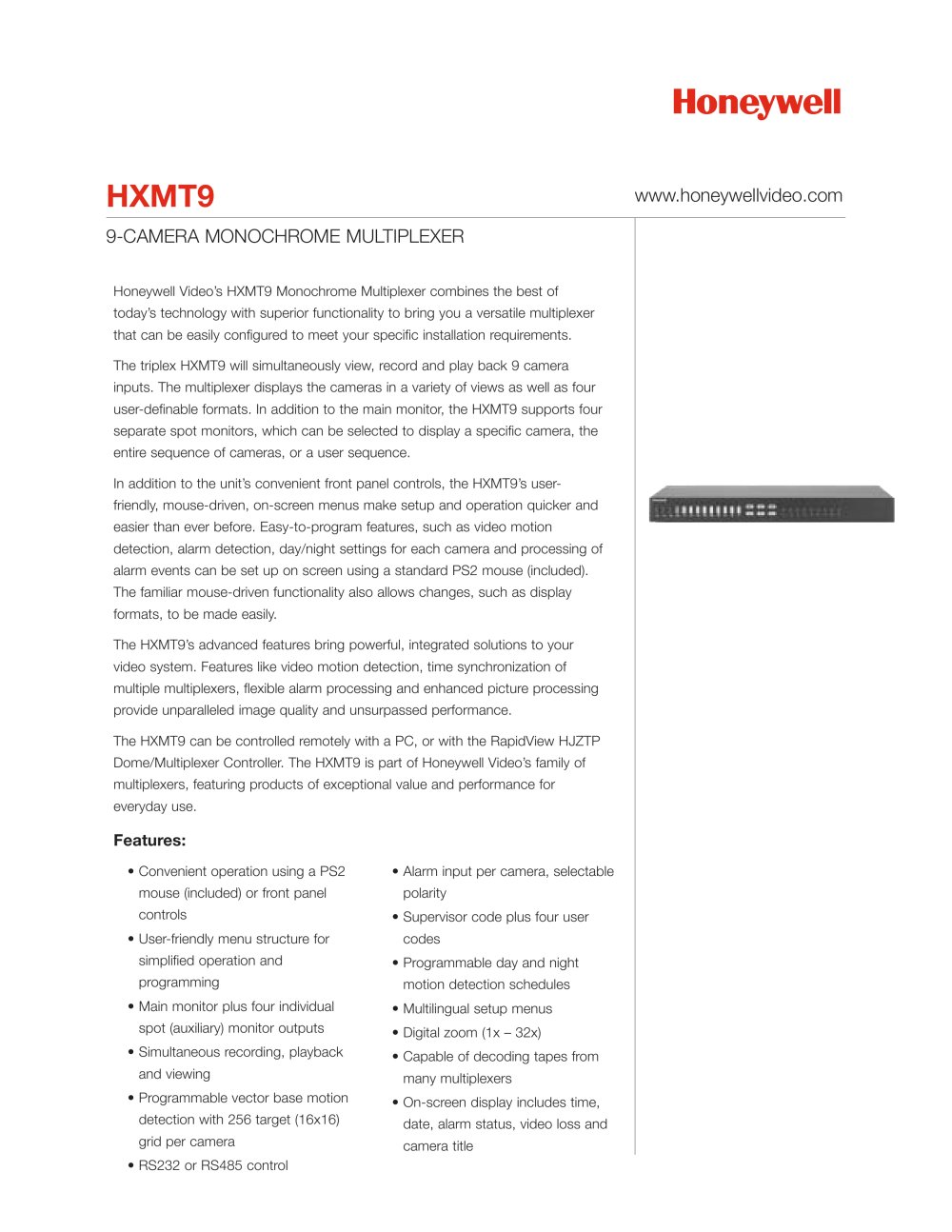

Honeywell Videos HXMT9 Monochrome Multiplexer combines the best oftodayҒs technology with superior functionality to bring you a versatile multiplexerthat can be easily configured to meet your specific installation requirements. The triplex HXMT9 will simultaneously view, record and play back 9 camerainputs. The multiplexer displays the cameras in a variety of views as well as fouruser-definable formats. In addition to the main monitor, the HXMT9 supports fourseparate spot monitors, which can be selected to display a specific camera, the entire sequence of cameras, or a user sequence.In addition to the units convenient front panel controls, the HXMT9Ғs user-friendly, mouse-driven, on-screen menus make setup and operation quicker andeasier than ever before. Easy-to-program features, such as video motiondetection, alarm detection, day/night settings for each camera and processing of alarm events can be set up on screen using a standard PS2 mouse (included).The familiar mouse-driven functionality also allows changes, such as displayformats, to be made easily.The HXMT9s advanced features bring powerful, integrated solutions to yourvideo system. Features like video motion detection, time synchronization of multiple multiplexers, flexible alarm processing and enhanced picture processingprovide unparalleled image quality and unsurpassed performance. The HXMT9 can be controlled remotely with a PC, or with the RapidView HJZTPDome/Multiplexer Controller. The HXMT9 is part of Honeywell VideoҒs family ofmultiplexers, featuring products of exceptional value and performance for everyday use. > Convenient operation using a PS2mouse (included) or front panelcontrolsՕ User-friendly menu structure forsimplified operation andprogramming Main monitor plus four individualspot (auxiliary) monitor outputsՕ Simultaneous recording, playbackand viewing Programmable vector base motiondetection with 256 target (16x16)grid per cameraՕ RS232 or RS485 control Alarm input per camera, selectablepolarityՕ Supervisor code plus four usercodes Programmable day and nightmotion detection schedulesՕ Multilingual setup menus Digital zoom (1x Ֆ 32x) Capable of decoding tapes frommany multiplexers Օ On-screen display includes time,date, alarm status, video loss andcamera title >

Open the catalog to page 1

In addition to the front panel controls, the HXMT9can beoperated using a mouse (included with unit). Everydayfunctions are greatly simplified through use of familiarcomputer-type functions, such as pop-up screens, easy-to-understand menu screens and toggle options.Simply point and click and you can perform all multiplexeroperations using this extremely user-friendly interface. The Multiplexer contains an alarm input camera as wellas two programmable alarm outputs. The systemprovides customized alarm response for specific security areas. Up to nine HXMT9 multiplexers can belinked together. >...

Open the catalog to page 2

Simply move the mouse to the topof the screen and you arepresented with the operationalmodes for the Multiplexer. Select between Live Mode, Playback,Preview or System Setup. Optionalpassword protection exists for certain functions. Its easy to change the contents of any of the four spot monitors. Simplyselect the desired spot monitor andselect a specific camera, the entire sequence, or a user sequence. Simply move the mouse to the bottom of the main monitor screenand the various display options areshown. Choose between a full screen view, PIP (Picture in Picture), 2x2,3x3, 4x4, or any of...

Open the catalog to page 3

Password Protection: 1 supervisor, 4 users Daylight Savings Time: Selectable Sequence Dwell Time 1 to 99 seconds. OFF Time Lapse VCR Setup Delay: 2 hr. real time to 960 hr. time lapse Unit ID Selection: 1 to 255 Camera Number Offset: 1 to 256 Language Selections: English, German, French, Italian, Spanish Upgradable Flash Memory: Yes RS232 Control: 1200 19200 baud RX/TX RS485 Control: 1200 ֖ 19200 baud RX/TX Mouse: Two-button PS2 mouse > Power Requirements: 12VDC, 2.5 Amps Power Adapter: 120/230VAC Universal Adapter > Unit Size: (W x H x D): 17"W x 1.73"H x 12.2"D (432mm x 44mm x 310mm) Unit...

Open the catalog to page 4

Video Standard: NTSC (525 lines, 60 fields/second) (Model HXMT9) or PAL (625 lines 50fields/second) (Model HXMT9X) Digital Memory: 720 x 480 pixels full screen to VCR, 648 x 448 full active screen, 256 shades of grayscale > Camera Inputs (9): 1.0 Vp-p, 75 Ohms Camera Looping Outputs (9): 1.0 Vp-p, 75 Ohms Loop Through Outputs (9): 1.0 Vp-p, 75 Ohms > Composite: 1.0 Vp-p, 75 Ohms S-Video: Luma 1.0 Vp-p, 75 Ohms Chroma (burst) .286 Vp-p, 75 Ohms > Composite: 1.0 Vp-p, 75 Ohms S-Video: Luma 1.0 Vp-p, 75 Ohms Chroma (burst) .286 Vp-p, 75 Ohms Spot Monitor Output: 1.0 Vp-p, 75 Ohms (4 outputs) >...

Open the catalog to page 5

HXMT9 9 Camera Monochrome Multiplexer, Triplex Operation NOTE: > Honeywell reserves the right, without notification, to make changes in product design or specifications. Honeywell Video Systems2700 Blankenbaker Pkwy, Suite 150Louisville, KY 402991.800.796 CCTVwww.honeywell.com > AV05031L/HXMT9/D September 20052005 Honeywell International Inc. size="-2">
