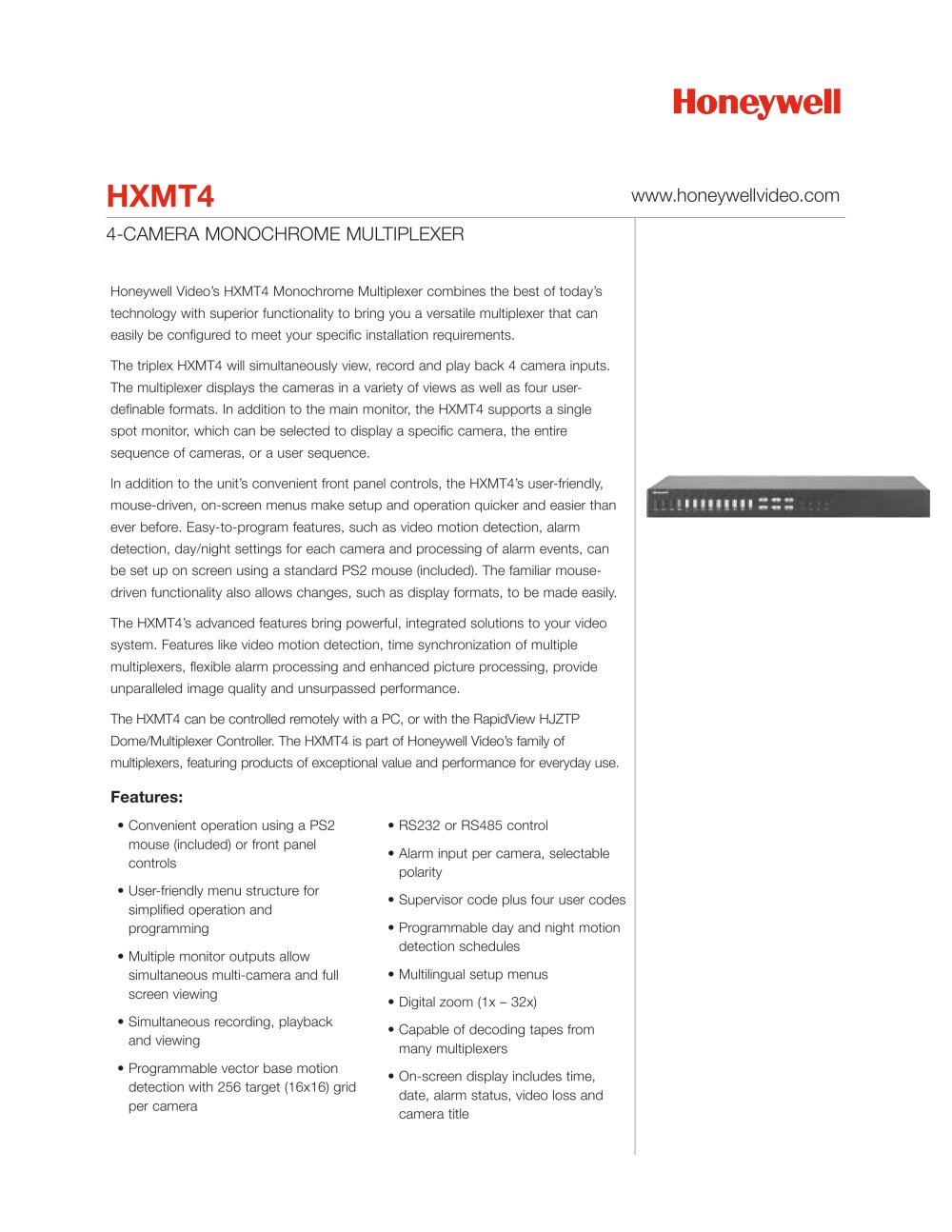

Honeywell Videos HXMT4 Monochrome Multiplexer combines the best of todayҒstechnology with superior functionality to bring you a versatile multiplexer that caneasily be configured to meet your specific installation requirements. The triplex HXMT4 will simultaneously view, record and play back 4 camera inputs.The multiplexer displays the cameras in a variety of views as well as four user- definable formats. In addition to the main monitor, the HXMT4 supports a singlespot monitor, which can be selected to display a specific camera, the entiresequence of cameras, or a user sequence.In addition to the units convenient front panel controls, the HXMT4Ғs user-friendly,mouse-driven, on-screen menus make setup and operation quicker and easier than ever before. Easy-to-program features, such as video motion detection, alarmdetection, day/night settings for each camera and processing of alarm events, canbe set up on screen using a standard PS2 mouse (included). The familiar mouse-driven functionality also allows changes, such as display formats, to be made easily.The HXMT4s advanced features bring powerful, integrated solutions to your videosystem. Features like video motion detection, time synchronization of multiplemultiplexers, flexible alarm processing and enhanced picture processing, provideunparalleled image quality and unsurpassed performance. The HXMT4 can be controlled remotely with a PC, or with the RapidView HJZTPDome/Multiplexer Controller. The HXMT4 is part of Honeywell VideoҒs family of multiplexers, featuring products of exceptional value and performance for everyday use. > Convenient operation using a PS2mouse (included) or front panelcontrolsՕ User-friendly menu structure forsimplified operation andprogramming Multiple monitor outputs allowsimultaneous multi-camera and full screen viewingՕ Simultaneous recording, playbackand viewing Programmable vector base motiondetection with 256 target (16x16) grid per camera Օ RS232 or RS485 control Alarm input per camera, selectablepolarityՕ Supervisor code plus four user codes Programmable day and night motiondetection schedulesՕ Multilingual setup menus Digital zoom (1x Ֆ 32x) Capable of decoding tapes frommany multiplexers Օ On-screen display includes time,date, alarm status, video loss and camera title >

Open the catalog to page 1

In addition to the front panel controls, the HXMT4can beoperated using a mouse (included with unit). Everyday functions are greatly simplified through use of familiarcomputer-type functions, such as pop-up screens, easy-to-understand menu screens and toggle options. Simplypoint and click and you can perform all multiplexeroperations using this extremely user-friendly interface. The Multiplexer contains an alarm input camera as well as two programmable alarm outputs. The system provides customized alarm response for specific security areas.Up to four HXMT4 multiplexers can be linked...

Open the catalog to page 2

Simply move the mouse to the top ofthe screen and you are presented with the operational modes for the Multiplexer. Select between Live Mode, Playback, Preview or System Setup. Optional password protection exists for certain functions. Upon selecting a camera image, azoom screen will appear. An inset area allows you to select the portion of the image to zoom (up and down arrows), and the in/out buttons control the zoom factor. The HXMT4 provides an electronic zoom up to 32 times normal. Its easy to change the contents of the single spot monitor. Simply select the spot monitor and select a...

Open the catalog to page 3

Password Protection: 1 supervisor, 4 users Daylight Savings Time: Selectable Sequence Dwell Time: 1 to 99 seconds. OFF Time Lapse VCR Setup Display: 2 hr. real time to 960 hr. time lapse Unit ID Selection: 1 to 255 Camera Number Offset: 1 to 256 Language Selections: English, German, French, Italian, Spanish Upgradable Flash Memory: Yes RS232 Control: 1200 19200 baud RX/TX RS485 Control: 1200 ֖ 19200 baud RX/TX Mouse: Two-button PS2 mouse > Power Requirements: 12VDC, 2.5 Amps Power Adapter: 120/230VAC Universal Adapter > Unit Size (W x H x D): 17"W x 1.73"H x12.2"D (432mm x 44mm x 310mm)...

Open the catalog to page 4

Digital Memory: 720 x 480 pixels full screen to VCR, 648 x 448 full active screen, 256 shades of grayscale Video Standard: NTSC (525 lines, 60 fields/second) (Model HXMT9) or PAL (625 lines 50fields/second) (Model HXMT9X) > Camera Inputs (4): 1.0 Vp-p, 75 Ohms Camera Looping Outputs (4): 1.0 Vp-p, 75 Ohms Loop Through Outputs (4): 1.0 Vp-p, 75 Ohms > Composite: 1.0 Vp-p, 75 Ohms S-Video: Luma 1.0 Vp-p, 75 Ohms Chroma (burst) .286 Vp-p, 75 Ohms > Composite: 1.0 Vp-p, 75 Ohms S-Video: Luma 1.0 Vp-p, 75 Ohms Chroma (burst) .286 Vp-p, 75 Ohms Spot Monitor Output: 1.0 Vp-p, 75 Ohms (4 outputs) >...
