HXCT16
6Pages

Catalog excerpts

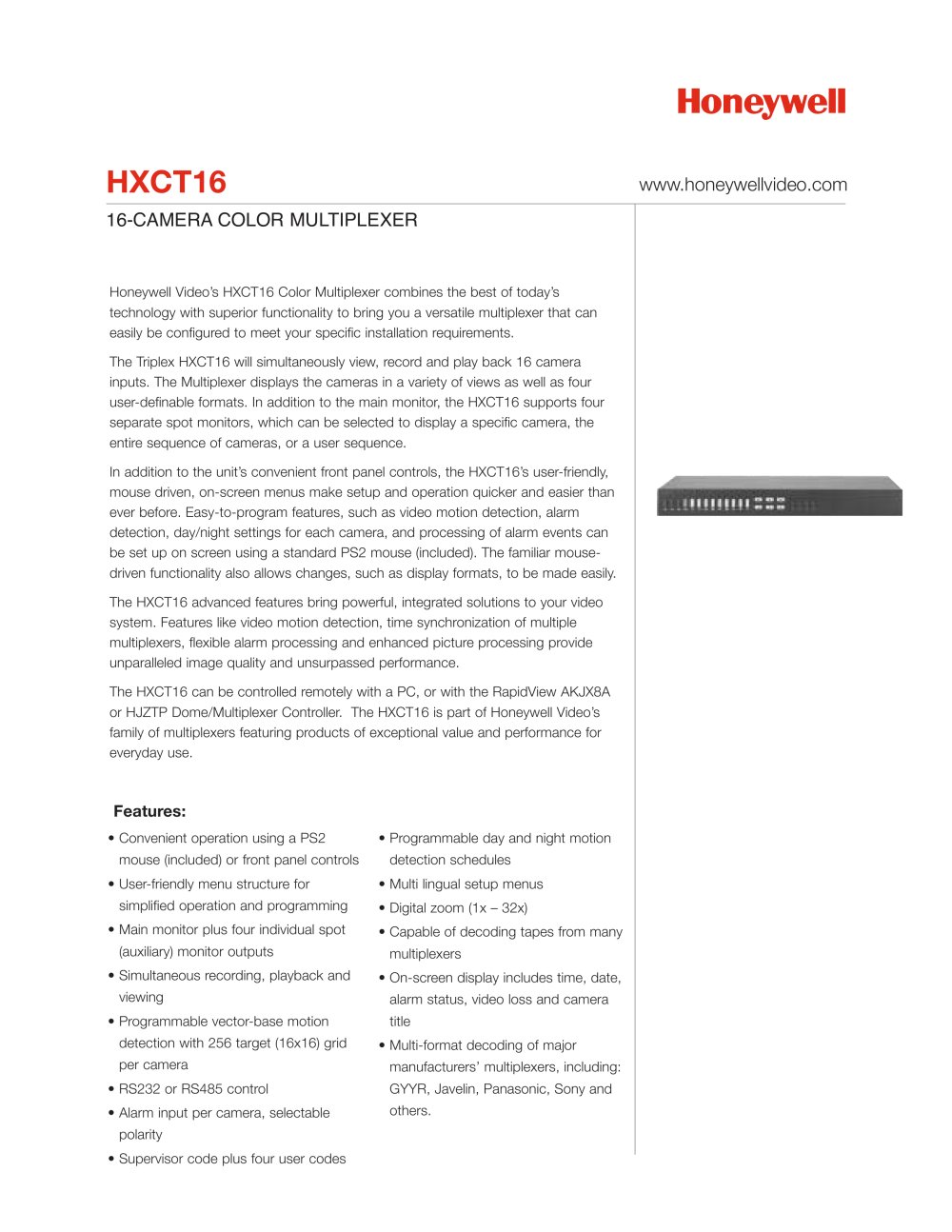

Honeywell Videos HXCT16 Color Multiplexer combines the best of todayҒstechnology with superior functionality to bring you a versatile multiplexer that caneasily be configured to meet your specific installation requirements. The Triplex HXCT16 will simultaneously view, record and play back 16 camerainputs. The Multiplexer displays the cameras in a variety of views as well as fouruser-definable formats. In addition to the main monitor, the HXCT16 supports fourseparate spot monitors, which can be selected to display a specific camera, theentire sequence of cameras, or a user sequence.In addition to the units convenient front panel controls, the HXCT16Ғs user-friendly,mouse driven, on-screen menus make setup and operation quicker and easier thanever before. Easy-to-program features, such as video motion detection, alarmdetection, day/night settings for each camera, and processing of alarm events canbe set up on screen using a standard PS2 mouse (included). The familiar mouse-driven functionality also allows changes, such as display formats, to be made easily.The HXCT16 advanced features bring powerful, integrated solutions to your videosystem. Features like video motion detection, time synchronization of multiplemultiplexers, flexible alarm processing and enhanced picture processing provideunparalleled image quality and unsurpassed performance. The HXCT16 can be controlled remotely with a PC, or with the RapidView AKJX8Aor HJZTP Dome/Multiplexer Controller. The HXCT16 is part of Honeywell Videosfamily of multiplexers featuring products of exceptional value and performance foreveryday use. > ҕ Convenient operation using a PS2mouse (included) or front panel controls User-friendly menu structure forsimplified operation and programmingՕ Main monitor plus four individual spot(auxiliary) monitor outputs Simultaneous recording, playback andviewingՕ Programmable vector-base motiondetection with 256 target (16x16) grid per camera RS232 or RS485 controlՕ Alarm input per camera, selectablepolarity Supervisor code plus four user codes Օ Programmable day and night motiondetection schedules Multi lingual setup menusՕ Digital zoom (1x 32x) ֕ Capable of decoding tapes from manymultiplexers On-screen display includes time, date,alarm status, video loss and cameratitleՕ Multi-format decoding of majormanufacturers multiplexers, including:GYYR, Javelin, Panasonic, Sony andothers. >

Open the catalog to page 1

In addition to the front panel controls, the Multiplexer canbe operated using a mouse (included with unit). Everydayfunctions are greatly simplified through use of familiarcomputer-type functions, such as pop up screens, easy-to-understand menu screens and toggle options. Simply pointand click and you can perform all Multiplexer operationsusing this extremely user-friendly user interface. Camera images can be electronically enlarged up to azoom factor of 32. In the zoom mode a screen appearsdisplaying the area of the screen impacted. Simply selectthe portion of the image to be enhanced,...

Open the catalog to page 2

The powerful features of the HXCT16 Multiplexer are only a point and click away. Here are some of the most commonlyused functions: Simply move the mouse to the top ofthe screen and you are presented with the operational modes for the Multiplexer. Select between Live Mode, Playback, Preview or System Setup. Optional password protection exists for certain functions. Upon selecting a camera image, azoom screen will appear. An inset area allows you to select the portion of the image to zoom (up and down arrows), and the in/out buttons control the zoom factor. The HXCT16 provides an electronic...

Open the catalog to page 3

Password Protection: 1 supervisor, 4 users Daylight Savings Time: Selectable Sequence Dwell Time: 1 to 99 seconds. OFF Time Lapse VCR Setup Display: 2 hr. real time to 960 hr. time lapse Unit ID Selection: 1 to 255 Camera Number Offset: 1 to 256 Language Selections: English, German, French, Italian, Spanish Upgradable Flash Memory: Yes RS-232 Control: 1200 19200 baud RX/TX RS-485 Control: 1200 ֖ 19200 baud RX/TX Mouse: Two-button PS2 mouse > Power Requirements: 12VDC, 2.5 Amps Power Adapter: 120/230VAC Universal Adapter > Unit Size (W x H x D): 17" W x 1.73" H x12.2"D (432mm x 44mm x 310mm)...

Open the catalog to page 4

Video Standard: NTSC (525 lines, 60 fields/second) or PAL (625 lines, 50 fields/second) Digital Memory: 720 x 480 pixels full screen to VCR, 648 x 448 full active screen, 256 shades ofgrayscale, 16 million colors > Camera Inputs (16): 1.0 Vp-p, 75 Ohms Camera Looping Outputs (16): 1.0 Vp-p, 75 Ohms Loop Through Outputs (16): 1.0 Vp-p, 75 Ohms > Composite: 1.0 Vp-p, 75 Ohms S-Video: Luma 1.0 Vp-p, 75 Ohms Chroma (burst) .286 Vp-p, 75 Ohms > Composite: 1.0 Vp-p, 75 Ohms S-Video: Luma 1.0 Vp-p, 75 Ohms Chroma (burst) .286 Vp-p, 75 Ohms Spot Monitor Output: 1.0 Vp-p, 75 Ohms (4 outputs) >...
