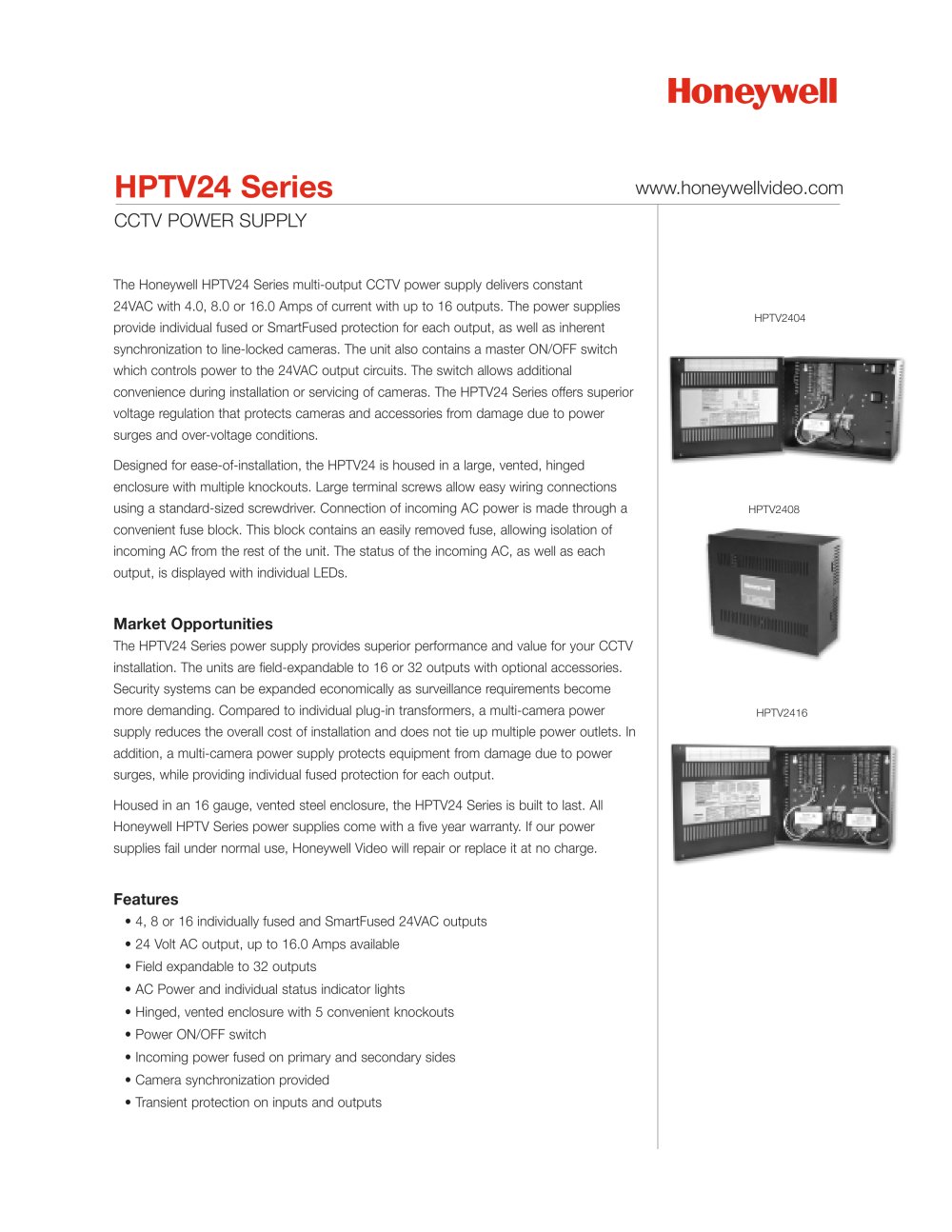

The Honeywell HPTV24 Series multi-output CCTV power supply delivers constant 24VAC with 4.0, 8.0 or 16.0 Amps of current with up to 16 outputs. The power supplies provide individual fused or SmartFused protection for each output, as well as inherentsynchronization to line-locked cameras. The unit also contains a master ON/OFF switchwhich controls power to the 24VAC output circuits. The switch allows additional convenience during installation or servicing of cameras. The HPTV24 Series offers superiorvoltage regulation that protects cameras and accessories from damage due to powersurges and over-voltage conditions. Designed for ease-of-installation, the HPTV24 is housed in a large, vented, hingedenclosure with multiple knockouts. Large terminal screws allow easy wiring connectionsusing a standard-sized screwdriver. Connection of incoming AC power is made through a convenient fuse block. This block contains an easily removed fuse, allowing isolation of incoming AC from the rest of the unit. The status of the incoming AC, as well as eachoutput, is displayed with individual LEDs. > HPTV2404 HPTV2408 The HPTV24 Series power supply provides superior performance and value for your CCTVinstallation. The units are field-expandable to 16 or 32 outputs with optional accessories.Security systems can be expanded economically as surveillance requirements becomemore demanding. Compared to individual plug-in transformers, a multi-camera power supply reduces the overall cost of installation and does not tie up multiple power outlets. In addition, a multi-camera power supply protects equipment from damage due to powersurges, while providing individual fused protection for each output. Housed in an 16 gauge, vented steel enclosure, the HPTV24 Series is built to last. AllHoneywell HPTV Series power supplies come with a five year warranty. If our powersupplies fail under normal use, Honeywell Video will repair or replace it at no charge. > HPTV2416 4, 8 or 16 individually fused and SmartFused 24VAC outputsՕ 24 Volt AC output, up to 16.0 Amps available Field expandable to 32 outputs Օ AC Power and individual status indicator lights Hinged, vented enclosure with 5 convenient knockoutsՕ Power ON/OFF switch Incoming power fused on primary and secondary sides Օ Camera synchronization provided Transient protection on inputs and outputs >

Open the catalog to page 1

HPTVD4 4 output fused power distribution board HPTVD8 8 output fused power distribution board HPT24200 24VAC 200VA open frame transformer with thermal cutout HPT24100 24VAC 100VA Class 2 open frame transformer with thermal cutout HP407EB Expansion Bracket for HPTV power supplies >

Open the catalog to page 3

ModelOutputs Example: > 24VAC Power Supply04 4 Outputs08 ֖8 Outputs 08-1 8 Outputs8A Total per Unit16 ֖16 Outputs 16-116 Outputs16A Total per UnitCB ֖PTC Circuit BreakerBlank Fused (automotive fuses) Fusing HPTV2404CB =24VAC Power Supply/4 Output/Circuit Breaker Honeywell Security Honeywell Video Systems2700 Blankenbaker ParkwayLouisville, KY 40299 1.800.796.CCTVwww.honeywell.com > AVA05003L/HPTV24/D October 2005 ֩2005 Honeywell International, Inc. size="-2">
