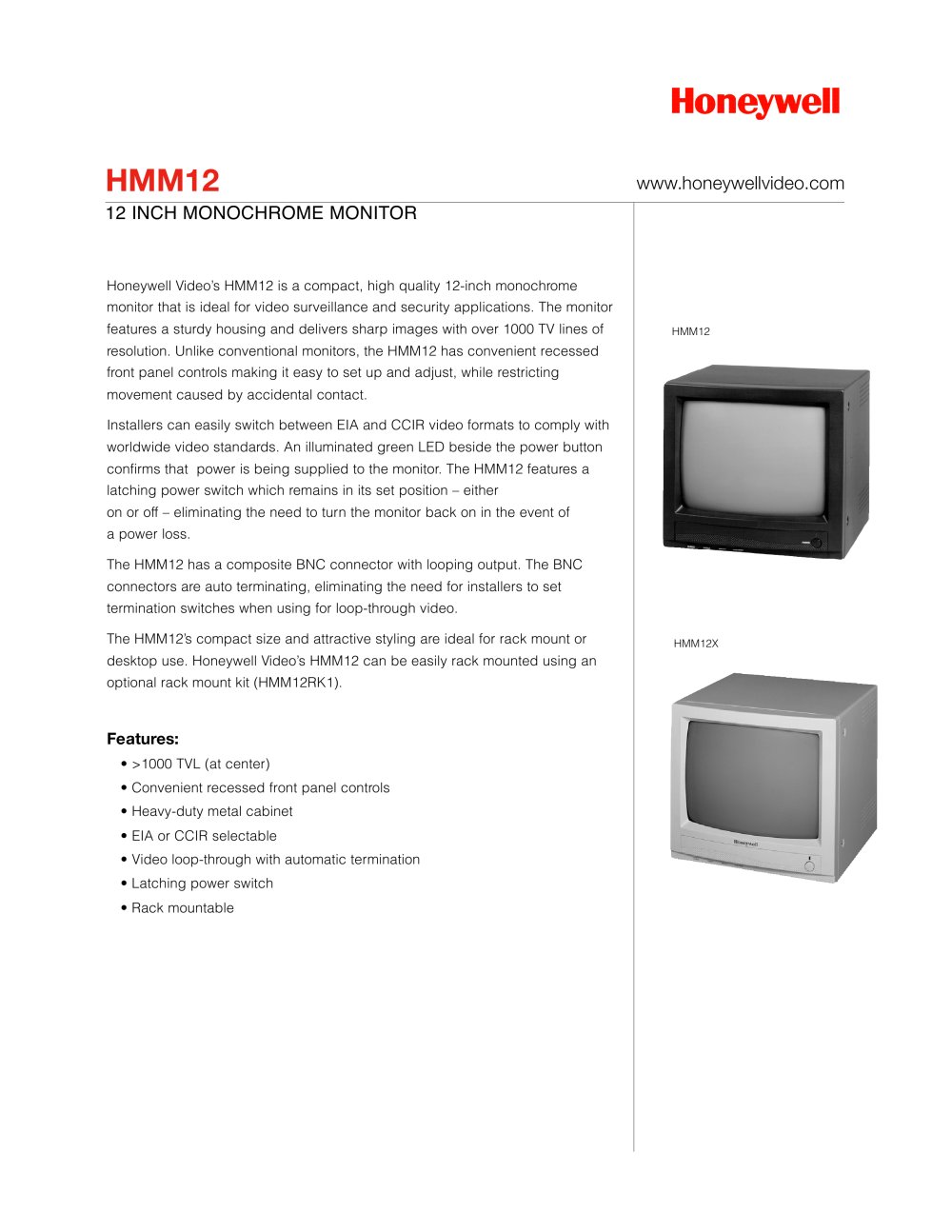

HMM12
1 /2Pages
HMM12
1 /2Pages
Catalog excerpts
Picture Tube: 12-inch (30 cm) diagonal Resolution: >1000 TV lines (at center) Video Standard: EIA/CCIR Deflection: 90 angle > Power Source: 90 to 264 VAC, 60 Hz/50 Hz AC Input Connector: IEC 320 Power Cable: NEMA 5-15P, UL Power Consumption: 18 Watts Video Input: One pair of BNC connectors for loop-through operation, auto terminating; Level: 1 Vp-p Linearity: Horizontal: 10% maximum; Vertical: 10% maximum Active Area Display Horizontal:10% overscanning; Vertical: 13% overscanning > Front: H-Hold ЕV-Hold Bright ՕContrast Power Switch Back: V-linearity ՕV-height EIA/CCIRselector switch > Operating...
Open the catalog to page 2All Honeywell Security catalogs and technical brochures
