HD6 Series
4Pages

{{requestButtons}}

Catalog excerpts

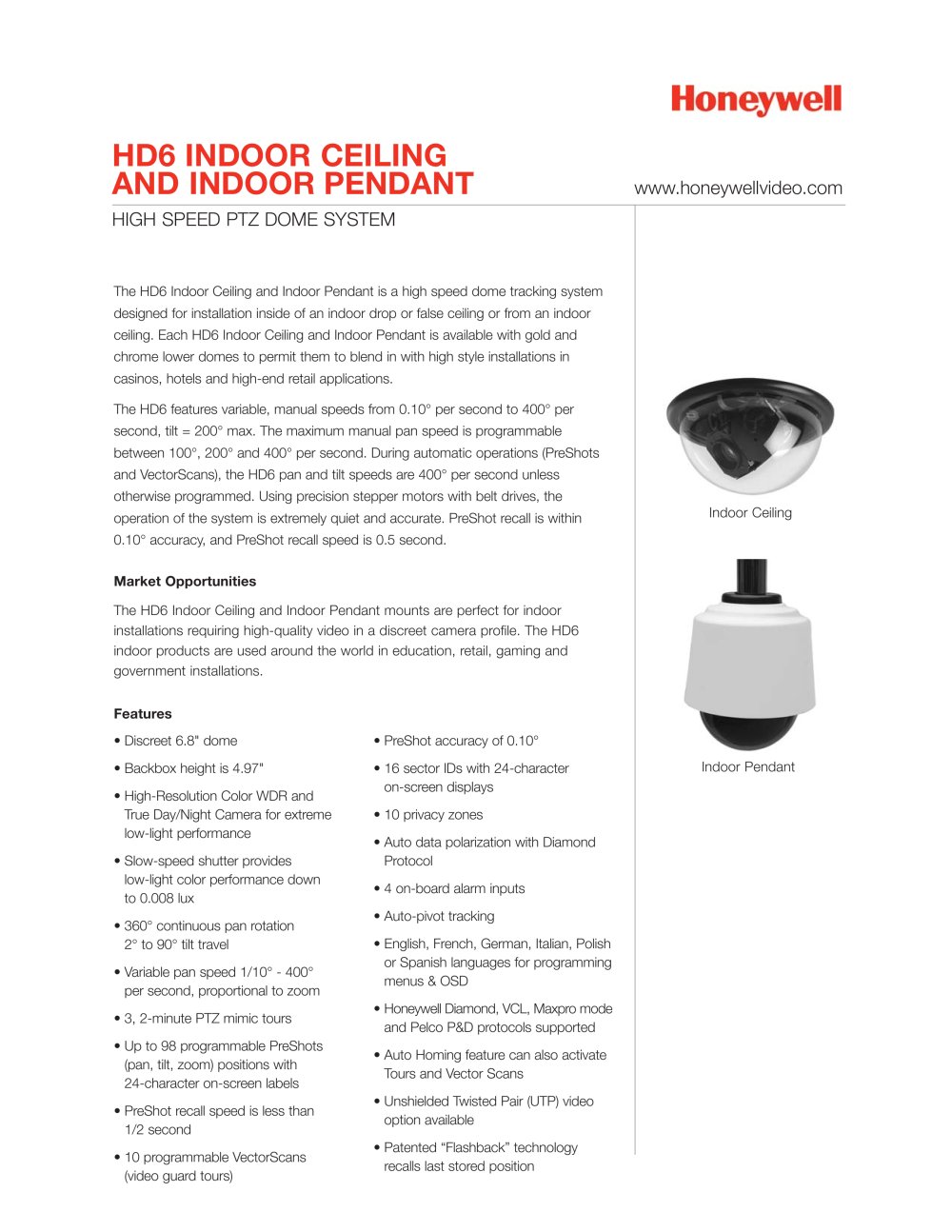

HD6 Series - 1

The HD6 Indoor Ceiling and Indoor Pendant is a high speed dome tracking systemdesigned for installation inside of an indoor drop or false ceiling or from an indoorceiling. Each HD6 Indoor Ceiling and Indoor Pendant is available with gold and chrome lower domes to permit them to blend in with high style installations incasinos, hotels and high-end retail applications.The HD6 features variable, manual speeds from 0.10per second to 400аpersecond, tilt = 200max. The maximum manual pan speed is programmablebetween 100а, 200and 400аper second. During automatic operations (PreShots and VectorScans), the HD6 pan and tilt speeds are 400per second unlessotherwise programmed. Using precision stepper motors with belt drives, theoperation of the system is extremely quiet and accurate. PreShot recall is within0.10аaccuracy, and PreShot recall speed is 0.5 second. Market Opportunities Indoor Ceiling The HD6 Indoor Ceiling and Indoor Pendant mounts are perfect for indoorinstallations requiring high-quality video in a discreet camera profile. The HD6 indoor products are used around the world in education, retail, gaming andgovernment installations. Features Discreet 6.8" domeՕ Backbox height is 4.97" High-Resolution Color WDR and True Day/Night Camera for extreme low-light performanceՕ Slow-speed shutter provides low-light color performance down to 0.008 lux 360հcontinuous pan rotation 2to 90аtilt travel Variable pan speed 1/10հ- 400per second, proportional to zoomЕ 3, 2-minute PTZ mimic tours Up to 98 programmable PreShots (pan, tilt, zoom) positions with 24-character on-screen labelsՕ PreShot recall speed is less than 1/2 second 10 programmable VectorScans (video guard tours) Օ PreShot accuracy of 0.10Е 16 sector IDs with 24-character on-screen displays 10 privacy zones Օ Auto data polarization with DiamondProtocol 4 on-board alarm inputs Օ Auto-pivot tracking English, French, German, Italian, Polishor Spanish languages for programmingmenus & OSDՕ Honeywell Diamond, VCL, Maxpro modeand Pelco P&D protocols supported Auto Homing feature can also activateTours and Vector ScansՕ Unshielded Twisted Pair (UTP) videooption available Patented ՓFlashback technologyrecalls last stored position Indoor Pendant >

Open the catalog to page 1
HD6 Series - 2

CAMERA HD6A HD6B HD6C HD6D HD6E Image Sensor 1/4" type EXview HAD CCD 1/4" type EXview HAD CCD 1/4" Progressive CCD 1/4" EXview CCD 1/4" EXview CCD 18X optical zoom, f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0 18X optical zoom, f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0 23X optical zoom, f=3.6 mm (wide) to 82.8 mm (tele), F1.6 to F3.7 23X optical zoom, f=3.8 (wide) to 87.4mm (tele), F1.6 to F3.8 25X optical zoom, f=3.8 (wide) to 95mm (tele), F1.6 to F3.7 Aspherical Lens Horizontal Resolution > 470 TVL (NTSC) > 460 TVL (PAL) > 470 TVL (NTSC) > 460 TVL (PAL) > 470 TVL (NTSC) > 460...

Open the catalog to page 2
HD6 Series - 3

Operational Electrical Angular Travel Horizontal: 360continuousTilt: 2аabove horizontal to 90down Input Voltage 24 VAC б20%, 50/60Hz Power Consumption 22 W @ 24 VAC Speed (Manual Mode) Pan: variable from 0.10to 400а/ sec. Tilt: variable from 0.10to 200а/sec. Mechanical Indoor Ceiling:Housing: 4.81" H x 6.80" Dia Lower Dome: 6.75" Dia Trim Ring: 6.875" Dia Indoor Pendant: Housing: 7.25" H x 8.98" Dia Lower Dome: 6.75" Dia Trim Ring: 6.875" Dia Speed to Preshot 400/sec. (<0.5 sec.) PreShot Accuracy <0.10аaccuracy Dimensions PreShots Per Dome Pan/tilt/zoom = 98 Video Tours (VectorScans) 10 per...

Open the catalog to page 3
