HD3VC4SHR / HD3VC4SA

HD3VC4SHR / HD3VC4SA
2Pages

Catalog excerpts

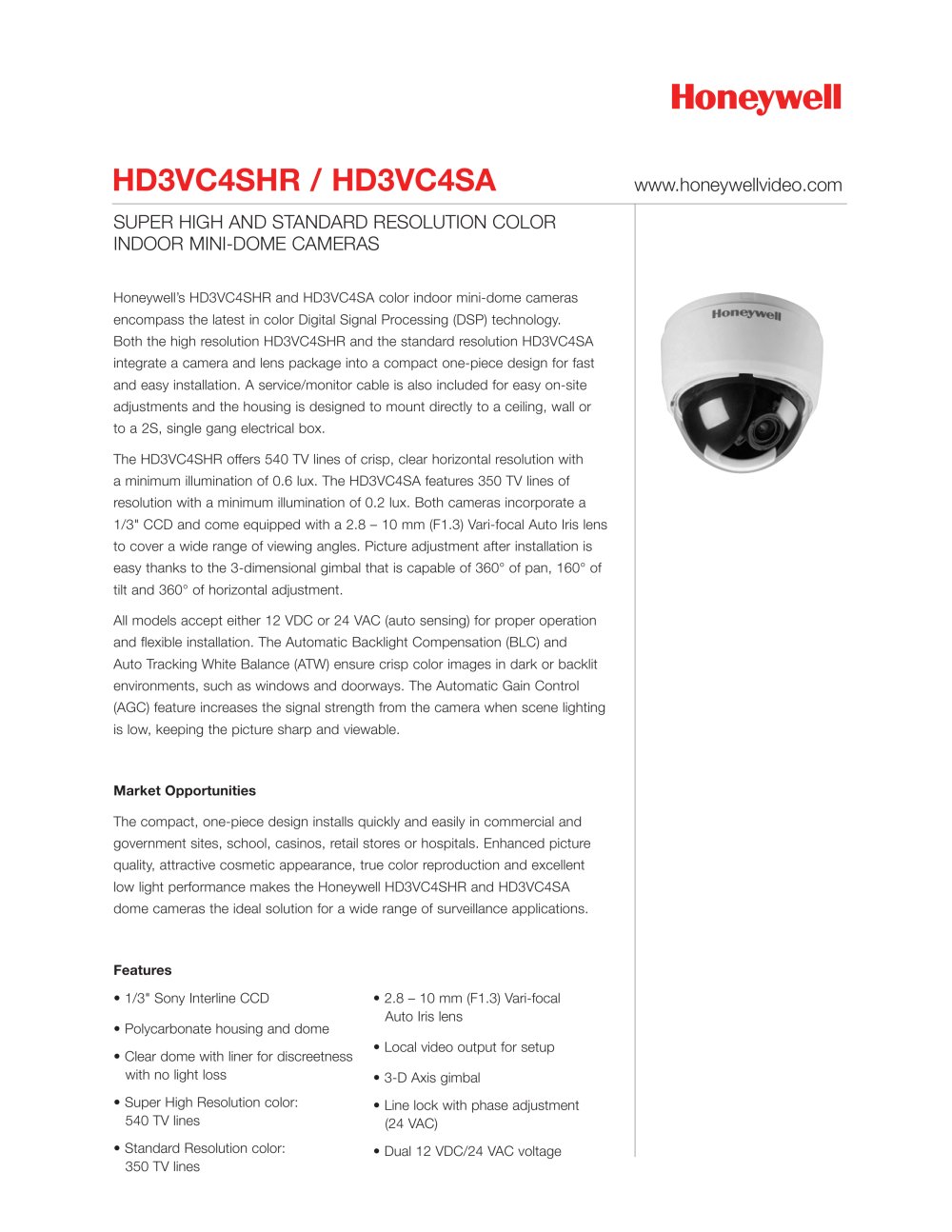

Honeywells HD3VC4SHR and HD3VC4SA color indoor mini-dome camerasencompass the latest in color Digital Signal Processing (DSP) technology. Both the high resolution HD3VC4SHR and the standard resolution HD3VC4SAintegrate a camera and lens package into a compact one-piece design for fastand easy installation. A service/monitor cable is also included for easy on-siteadjustments and the housing is designed to mount directly to a ceiling, wall or to a 2S, single gang electrical box. The HD3VC4SHR offers 540 TV lines of crisp, clear horizontal resolution with a minimum illumination of 0.6 lux. The HD3VC4SA features 350 TV lines ofresolution with a minimum illumination of 0.2 lux. Both cameras incorporate a1/3"CCD and come equipped with a 2.8 Җ 10 mm (F1.3) Vari-focal Auto Iris lens to cover a wide range of viewing angles. Picture adjustment after installation iseasy thanks to the 3-dimensional gimbal that is capable of 360of pan, 160аoftilt and 360of horizontal adjustment. All models accept either 12 VDC or 24 VAC (auto sensing) for proper operationand flexible installation. The Automatic Backlight Compensation (BLC) and Auto Tracking White Balance (ATW) ensure crisp color images in dark or backlitenvironments, such as windows and doorways. The Automatic Gain Control(AGC) feature increases the signal strength from the camera when scene lightingis low, keeping the picture sharp and viewable. Market Opportunities The compact, one-piece design installs quickly and easily in commercial andgovernment sites, school, casinos, retail stores or hospitals. Enhanced picturequality, attractive cosmetic appearance, true color reproduction and excellent low light performance makes the Honeywell HD3VC4SHR and HD3VC4SA dome cameras the ideal solution for a wide range of surveillance applications. Features Е 1/3"Sony Interline CCD Polycarbonate housing and domeՕ Clear dome with liner for discreetnesswith no light loss Super High Resolution color: 540 TV linesՕ Standard Resolution color: 350 TV lines 2.8 Ֆ 10 mm (F1.3) Vari-focal Auto Iris lens Local video output for setupՕ 3-D Axis gimbal Line lock with phase adjustment (24 VAC)Օ Dual 12 VDC/24 VAC voltage >

Open the catalog to page 1

Operational High Resolution Standard Resolution Environmental Video Standard NTSC, PAL Temperature Operating: 14F to +122аF (-10C to +50аC)Storage: -4F to +140аF (-20C to +60аC) 525/60 lines (NTSC)625/50 lines (PAL) Relative Humidity Scanning System 0% to 90% RH non-condensing Image Sensor 1/3" Sony CCD color image sensor Regulatory Number of Pixels (H x V) 768 x 494 (NTSC) 752 x 582 (PAL) 510 x 492 (NTSC) 500 x 582 (PAL) Emissions FCC, CE (EN55022) Immunity CE (EN50130-4) Minimum Illumination 0.6 lux @ F1.3 (AGC on, 50 IRE) 0.2 lux @ F1.3 (AGC on, 50 IRE) Safety EU: 73/23/EEC LVD, UL 2044...

Open the catalog to page 2
