HCCM474M
2Pages

Catalog excerpts

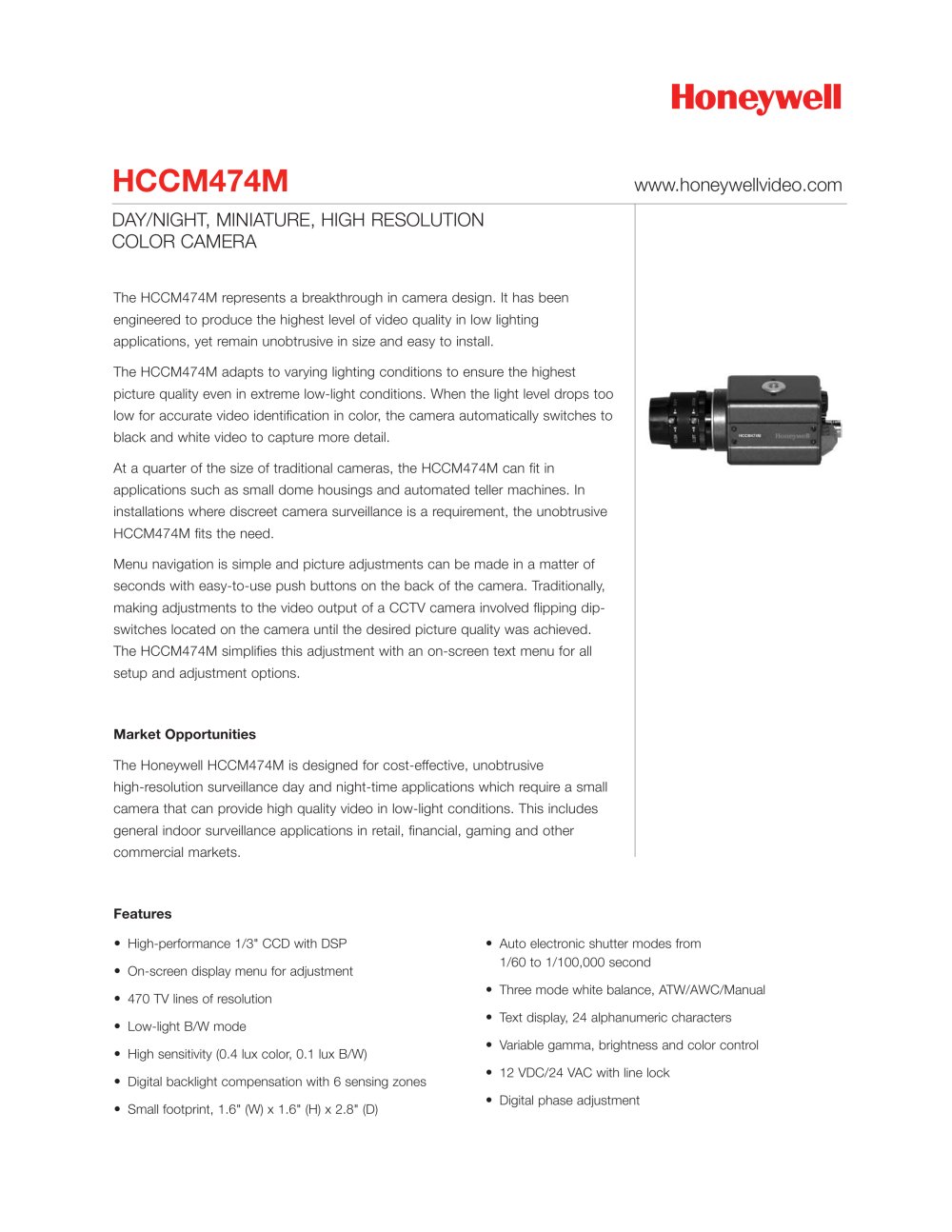

The HCCM474M represents a breakthrough in camera design. It has beenengineered to produce the highest level of video quality in low lightingapplications, yet remain unobtrusive in size and easy to install.The HCCM474M adapts to varying lighting conditions to ensure the highestpicture quality even in extreme low-light conditions. When the light level drops toolow for accurate video identification in color, the camera automatically switches to black and white video to capture more detail.At a quarter of the size of traditional cameras, the HCCM474M can fit inapplications such as small dome housings and automated teller machines. Ininstallations where discreet camera surveillance is a requirement, the unobtrusiveHCCM474M fits the need.Menu navigation is simple and picture adjustments can be made in a matter ofseconds with easy-to-use push buttons on the back of the camera. Traditionally,making adjustments to the video output of a CCTV camera involved flipping dip-switches located on the camera until the desired picture quality was achieved.The HCCM474M simplifies this adjustment with an on-screen text menu for all setup and adjustment options. Market Opportunities The Honeywell HCCM474M is designed for cost-effective, unobtrusive high-resolution surveillance day and night-time applications which require a smallcamera that can provide high quality video in low-light conditions. This includesgeneral indoor surveillance applications in retail, financial, gaming and other commercial markets. Features > High-performance 1/3" CCD with DSP Օ > Auto electronic shutter modes from 1/60 to 1/100,000 second > On-screen display menu for adjustment Օ > 470 TV lines of resolution > Three mode white balance, ATW/AWC/Manual Օ > Low-light B/W mode > Text display, 24 alphanumeric characters Օ > High sensitivity (0.4 lux color, 0.1 lux B/W) > Variable gamma, brightness and color control Օ > Digital backlight compensation with 6 sensing zones > 12 VDC/24 VAC with line lock Օ > Small footprint, 1.6" (W) x 1.6" (H) x 2.8" (D) > Digital phase adjustment size="-1">

Open the catalog to page 1

Operational Environmental Video Standard NTSC Temperature Operating: 14F to 122аF (-10C to 50аC)Storage:-4F to 140аF (-20C to 60аC) Scanning System 525/60 lines Relative Humidity < 85%, non-condensing Image Sensor 1/3" Interline Transfer CCD SonyExView Regulatory Number of Pixels (H x V) Emissions FCC, CE (EN 55013) 768 x 494 Immunity CE (EN50130-4) Minimum Illumination 0.4 lux Color/0.1 lux (BW) @ F1.2 (50 IRE) Safety EU: 73/23/EEC LVD Accessories: Horizontal Resolution 470 TVL Recommended Lens Options HLD25V6F12L 2.5 6 mm, F1.2, DC Auto Iris lens Video Output 1.0 Vp-p @ 75 Ohms...
