HCC484L
2Pages

Catalog excerpts

The Honeywell HCC484L color camera is ideally suited for use in day-to-daysurveillance applications. Designed for value, the HCC484L saves time andmoney with easy installation and reliable performance. Its off-the-shelf feature setis developed for high-picture quality in standard applications and requires little tono adjustment once installed.The HCC484L supports direct-drive and drive-style Auto Iris lenses to ensurequality video even in fluctuating light conditions. Regardless of lens type,attaching a lens to the camera is simple with a built-in C/CS mounting ring and four-pin Auto Iris connector standard. A screw terminal block provides reliable power connection, saving installation and maintenance time.The HCC484L includes an automatic electronic shutter for changes in light level,and an automatic backlight compensation option for viewing objects in theforeground with bright light in the background. A manual exposure mode can beused for applications, such as machine vision, that require a constant shutter speed at all times. The HCC484L produces 480 TV lines of resolution to providereliable video quality even in low-light conditions down to 0.40 lux. Market Opportunities The Honeywell HCC484L is designed for general cost-effective, high-resolutionsurveillance applications where a color image and object identification andrecognition are required. This includes general indoor surveillance applications in retail, educational, financial, and other commercial markets. Combined with the HHC12 environmental housing, the HCC484L can be used as a solution for outdoor applications, such as parking lots, building entranceways, and driveways. Features 1/3" color CCD with DSPՕ480 TV lines of resolution Low-light performance 0.40 lux (F1.2) ՕAutomatic Electronic Shutter (AES)Manual Exposure Mode for settingshutter speedՕAutomatic Backlight Compensation(BLC)12 VDC/24 VAC with line lockՕC/CS lens mount DC, Video and Manual Iris lens support >

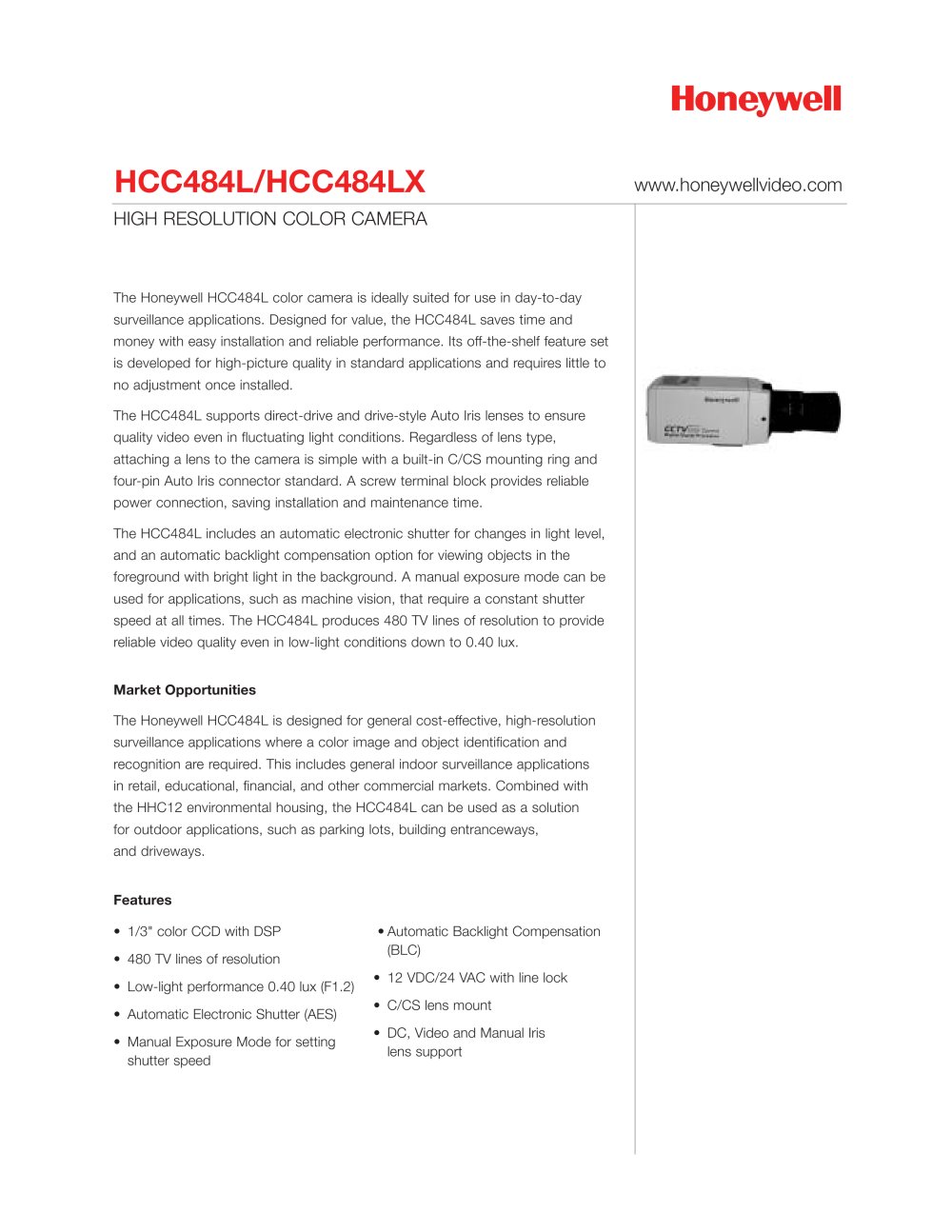

Open the catalog to page 1

Operational Environmental Video Standard NTSC, PAL Temperature Operating: 14F to 122аF (-10C to 50аC)Storage: -4F to 158аF (-20C to 70аC) Scanning System 525/60 lines (NTSC)625/50 lines (PAL) Relative Humidity 20% to 80%, non-condensing Image Sensor 1/3" Interline Transfer CCD Regulatory Number of Pixels (H x V) 768 x 494 (NTSC) 752 x 582 (PAL) Emissions FCC, CE (EN55013) Immunity CE (EN50130-4) Minimum Illumination 0.40 lux @ F1.2 Safety EV: 73/23/EEC LVD Horizontal Resolution 480 TVL Accessories: Video Output 1.0 Vp-p @ 75 Ohms Recommended Lens Options Sync System 12 VDC: Internal 24 VAC:...

Open the catalog to page 2
