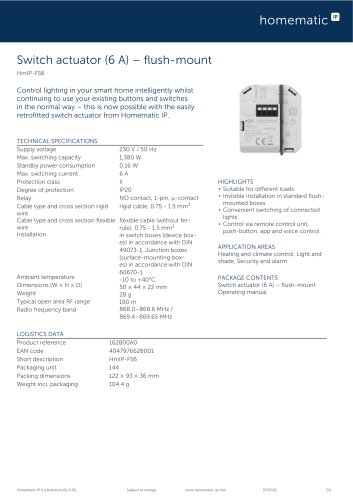

Switch actuator (6 A) - flush-mount HmIP-FS6 Control lighting in your smart home intelligently whilst continuing to use your existing buttons and switches in the normal way - this is now possible with the easily retrofitted switch actuator from Homematic IP. NO contact, 1-pin, p-contact rigid cable, 0.75 - 1.5 mm2 flexible cable (without ferrule), 0.75 - 1.5 mm2 in switch boxes (device boxes) in accordance with DIN 49073-1, Junction boxes (surface-mounting boxes) in accordance with DIN 60670-1 -10 to +40°C 50 x 44 x 22 mm 28 g 190 m TECHNICAL SPECIFICATIONS Supply voltage Standby power consumption Protection class Cable type and cross section rigid wire Cable type and cross section flexible wire Ambient temperature Dimensions (W x H x D) Weight Typical open area RF range Radio frequency band • Suitable for different loads • Invisible installation in standard flush-mounted boxes • Convenient switching of connected lights • Control via remote control unit, push-button, app and voice control. APPLICATION AREAS Heating and climate control, Light and shade, Security and alarm PACKAGE CONTENTS Switch actuator (6 A) - flush-mount Operating manual LOGISTICS DATA Product reference EAN code Short description Packaging unit Packing dimensions Weight incl. packaging Homematic IP is a brand of eQ-3 AG Subject to change. www.homematic-ip.com 07/2026 EN

SUITABLE FOR A WIDE RANGE OF LOADS The flush-mount switch actuator is suitable for a wide range of electrical loads. It switches resistive loads up to 6 A as well as incandescent and high-voltage halogen lamps up to 1,380 W. LED and compact fluorescent lamps with a ballast are suitable up to 200 W. Lowvoltage halogen lamps with electronic or conventional transformers as well as fluorescent lamps up to 1,380 W can also be switched. For radiators and heating sys-tems, a load capacity of 4.35 A (200,000 switching cycles) is possible. SMART LIGHT SWITCHING A connected light can be conveniently switched...
