Product catalog summary

Introduction
The Hadley Group is a prominent European manufacturer specializing in cold rolled sections, particularly lightweight steel framing for construction. Their mission focuses on exceeding customer expectations through quality and innovation.

Product Profile
The Structural Sections Framing (SSF) provides a pre-galvanized steel framing solution for load-bearing applications, ideal for external wall support and structural frameworks, especially in weight-saving designs.

Design and Detailing Software
The Hadley Group offers UltraPRO and UltraCAM software to aid in design and detailing, promoting efficient material use and cost reduction.

Manufacture and Quality Assurance
Manufactured in the West Midlands, UK, the products emphasize quality and reliability, adhering to ISO 9001:2000 standards and supported by the Steel Construction Institute.

Technical Support
Comprehensive technical support is available, including finite analysis software. UltraPRO design software is provided free upon request.

Wall Construction Systems
SSF offers Non-Continuous Infill and Continuous External Walling Systems, supporting various cladding types. These systems are eco-friendly, cost-effective, and suitable for both low and high-rise projects.

Non-Continuous Infill Walling System
This lightweight, dry construction method reduces material weight and construction time, fixed between primary structure members, allowing for continuous external cladding.

Continuous External Walling System
Designed to maximize floor area, this system uses cleats attached to floor slabs to support vertical sections, accommodating vertical movement due to deflection, suitable for buildings over three storeys.

Section Properties and Dimensions
Detailed tables provide section properties and dimensions, including mass, area, and structural capacities, essential for design calculations.

Conclusion
The Hadley Group's SSF products offer innovative, reliable, and environmentally friendly solutions for modern construction needs, supported by advanced software and technical expertise.

Overview
The document details specifications and guidelines for the Structural Sections Framing-Continuous System, primarily designed to handle lateral wind loads, outlining components, installation procedures, and structural calculations for effective implementation.

Specifications
The system transfers lateral wind loads from outer cladding to the primary structure through cleat connections, including components like floor tracks, deflection head tracks, and various cills, lintels, and jambs for specific opening sizes and wind load conditions.

Installation Procedures
Key steps include aligning vertical rail sections using horizontal slots, which are removed after vertical slot fixings to allow for vertical deflection. Heavy-duty tracks, slip-klips, and bracing ensure structural stability.

Norms and Standards
Adherence to structural calculations for fixing quantities, spacings, and types is emphasized, with self-drilling and self-tapping flush head fixing screws recommended for secure installations.

Recommendations
Recommendations include using appropriate cill, lintel, and jamb configurations based on opening size and wind load conditions, with advice on blocking and bracing for load-bearing walls and lateral restraint importance.

Tables and Data
Span tables and load-bearing capacities for various structural sections provide maximum lateral wind load capacities and allowable spans for floor joists, ensuring safety and performance standards.

Critical Information
Highlights include removing horizontal slot fixings post-installation, ensuring proper bracing and blocking, and adhering to structural calculations for all fixings and reinforcements, with joist reinforcement to prevent web crippling and ensure load-bearing capacity.

Specifications
All cold roll-formed sections are manufactured from quality steel to S390GD+Z275-N-A-C with a minimum yield strength of 390 N/mm², pre-hot dipped galvanized with a Z275 coating. Structural calculations follow BS5950 pt5 1988, with loadings determined by BS6399.

Installation and Fabrication
Installers must submit construction details for approval before fabrication and installation. Components should be cut square unless an angular fit is required, with service slots positioned at least 600mm from stud ends or 300mm from joist ends. All fixings should comply with structural calculations and drawings, with temporary bracing possibly necessary for a satisfactory structural framework.

Cladding and Insulation
Internal linings and insulation should be selected and fixed according to manufacturer's recommendations to ensure specified performance for acoustic, fire, load-bearing, and thermal requirements. Masonry should be tied back to wall studs using proprietary stainless steel wall ties.

Fixing Guide
The document provides a detailed guide for selecting appropriate fasteners for various applications, including low profile fixings, plasterboard fixings, and general fixings for gusset plates and angle brackets.

Applications
SSF light gauge steel framing systems are used in various building projects, including infill systems for external and internal walls, standalone structural frames, floors, over-roofing, and industrial partitions.

Catalog excerpts

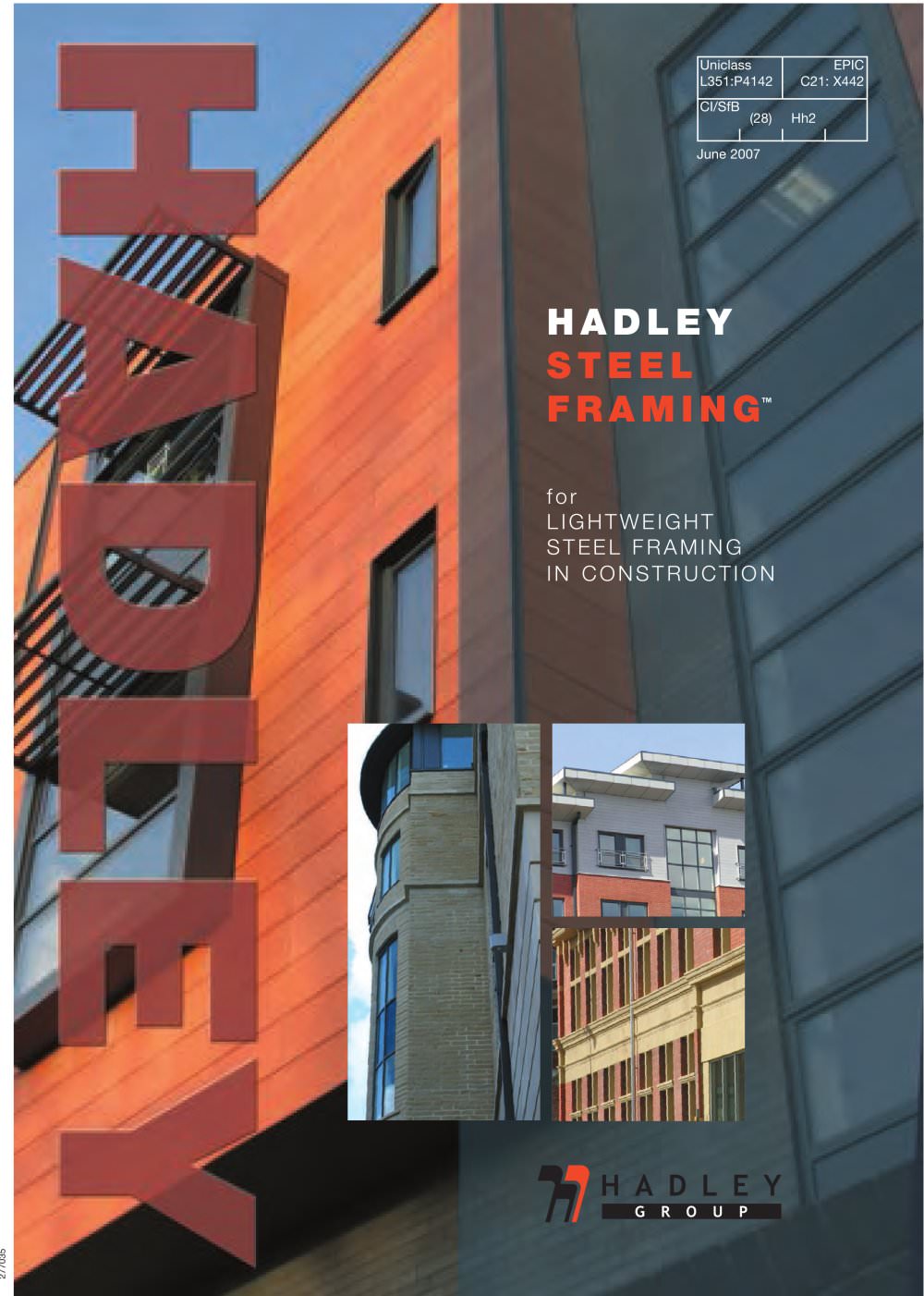

HADLEY STEEL FRAMING for L IGHTWEIGHT STEEL FRAMING IN CONSTRUCTION June 2007 CI/SfB Uniclass L351:P4142 EPIC C21: X442 (28) Hh2 !""#$% ™

Open the catalog to page 1

DESIGN SOFTWARE ® UltraPRO.. UltraCAM. DETAILING SOFTWARE ® AUTHORITY BS5950 pt 5 1987 COSTING Design and costing to clients’ specification ensures optimum use of material and reduced costs. MANUFACTURE Dedicated production machinery - manufactured and supported by The Hadley Group ensures product quality and reliability. Individual product marking to customers requirements means easy component recognition. Customer’s identification marks for sections is accommodated by ink-jet marking. SUPPLY & DESPATCH Special packaging and despatch requirements can be accommodated by arrangement. This includes...

Open the catalog to page 2

OUR MISSION STATEMENT:- “WE WILL EXCEED OUR CUSTOMERS EXPECTATIONS BY WORKING TOGETHER PROFITABLY TO IMPROVE QUALITY AND SERVICE THROUGH INVESTMENT IN PEOPLE AND TECHNOLOGY’. SHAPING THE FUTURE IN METAL The Hadley Group is one of Europe’s leading manufacturers of cold rolled sections and allied products. Operating from purpose built premises in the heart of the industrial West Midlands in the United Kingdom, The Hadley Group of companies are dedicated to the provision of matchless standards of service, quality, innovation and technical expertise. The integration of advanced research and development...

Open the catalog to page 3

WALLCONSTRUCTION STRUCTURALSECTIONSFRAMING S T R U C T U R A L S E C T I O N S FRAMING-SSF PRODUCT PROFILE Structural Sections Framing - SSF provides a light gauge pre-galvanised steel framing solution for load bearing applications. Suitable for use as an external wall support for cladding, masonry, rendered and rain screen finishes, our structural ‘stud and track’ framing system offers significant savings over traditional methods of construction. Structural Sections Framing - SSF may also be used to create a structural framework for the roof, walls and floors of single or multistorey buildings....

Open the catalog to page 4

SOFTWARE STRUCTURALSECTIONSFRAMING STRUCTURAL SECTIONS FRAMING EXTERNAL WALLING SYSTEMS. Structural Sections Framing is available in Non-Continuous Infill or Continuous frame design options and provide support for most types of exterior cladding - including masonry and rain screen systems. Suitable for low and high rise projects, the systems offer designers a cost effective, fast and eco-friendly alternative to traditional construction methods. Unlike timber, galvanised steel is inherently resistant to moisture and will not rot or warp, however like timber the lightweight steel sections are easy...

Open the catalog to page 5

7 WALLCONSTRUCTION STRUCTURALSECTIONSFRAMING S T R U C T U R A L S E C T I O N S NONCONTINOUS INFILL WALLING SYSTEM

Open the catalog to page 8

STRUCTURAL SECTIONS FRAMING NON-CONTINUOUS INFILL WALLING SYSTEMS. Structural Sections Framing Non-Continuous Infill System creates a steel framed structural stud and track system suitable for use in construction projects where conventional blockwork might be considered. Our lightweight ‘dry’ system offers savings in material weight, construction time and labour requirements. The system is fixed between primary structure members and is generally located at the ‘slab edge’ to facilitate the fixing of insulation and external cladding materials which can run continuously outside the main structure...

Open the catalog to page 9

9 S T R U C T U R A L S E C T I O N S CONTINUOUS EXTERNAL WALLING SYSTEMS WALLCONSTRUCTION STRUCTURALSECTIONSFRAMING

Open the catalog to page 10

STRUCTURAL SECTIONS FRAMING CONTINUOUS EXTERNAL WALLING SYSTEMS. Structural Sections Framing-Continuous System is eminently suitable for buildings where the floor area needs to be maximised. Cleats are attached to the outer faces of the floor slabs using fixings determined by structural calculations. The continuous vertical sections are in turn attached to the FC Series cleats using appropriate screw fixings located through slotted holes to facilitate deflection within the floor slabs. Vertical movement due to deflection within the floor slabs is catered for by slotted holes in the cleats, therefore...

Open the catalog to page 11

FLOOR TRACK DETAIL DEFLECTION HEAD TRACK DETAIL BLOCKING & BRACING DEFLECTION HEAD TRACK DETAIL Slip-Klip (Subject of UK patent app. No.0421108.2-foreign rights reserved) LATERAL RESTRAINT BLOCKING & BRACING Heavy duty track 70mm deep Standard track 70mm deep Slip-Klip Stud Deflection gap 25 - 35mm 25mm Deflection Gap B38 Bracing Where required 100 x 35 mm Service Slot, 600 mm from ends, to order only 70 - 150 series stud Floor Track section (40mm deep) screw fixed to slab. Fixing quantity/spacings/type as determined by structural calculations. Self drilling/ self tapping Flush Head Fixing Screws....

Open the catalog to page 12

CILL TYPES LINTEL TYPES JAMB TYPES CT1 Shallow track Cill. Basic Cill configuration. Suitable for small/medium sized openings. CT2 Deep track Cill. Suitable for medium sized openings. LT1 Shallow track Lintel. Base configuration. Suitable for small/medium sized openings. LT2 Deep track Lintel. Suitable for medium sized openings LT3 Deep track Lintel with stud and shallow track on back of stud. Suitable for medium/large openings and /or medium/high wind load conditions. LT4 Shallow track Lintel with two stud sections inserted vertically and capped with a pair of back to back shallow track sections,...

Open the catalog to page 13

LOAD BEARING WALL OPENING (TYPICAL DETAIL) BRACING TO LOAD BEARING WALL (TYPICAL DETAIL) Lateral Bracing B38. Double studs in braced bay Blocking at ends of wall and adjacent to wall openings. Max distance between blocking 2400mm Diagonal Bracing B100 to one or both sides of wall (dependant upon structural calculations) TYPICAL WALL CONSTRUCTION USING BRICK CLADDING IN WARM FRAME CONSTRUCTION Sheathing board as specified (optional) Thermal insulation as specified Insulated sheathing board as specified Insulation as specified DPC DPC Insulation Foundation Blinding Ground floor slab Stainless steel...

Open the catalog to page 14

Floor Joists to line through with Wall Stud. NON CONTINUOUS END CONNECTION Track Section to top of stud wall or primary support. Structural Sections Framing ‘F’ Series Floor Joists screw fixed back-to-back, as determined by structural calculations. Structural Sections Framing ‘F’ Series Wall Stud (If appropriate). Track Section to top of stud wall or primary support. Structural Sections Framing ‘F’ Series Floor Joists continuous over wall or stud wall. Structural Sections Framing ‘F’ Series Wall Stud (If appropriate). Structural Sections Framing ‘F’ Series Wall Stud (If appropriate). Short length...

Open the catalog to page 15
