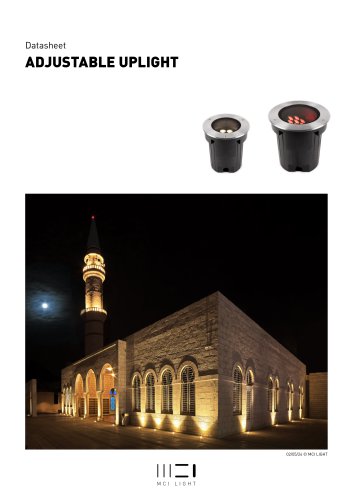

ADJUSTABLE UPLIGHT

Product catalog summary

Overview: The document is a datasheet for the Adjustable Uplight by MCI Light, detailing specifications, features, and options for various models of in-ground lighting fixtures.

Specifications: The uplight fixtures are adjustable by ±25° and are available in monocolor and RGBW models. They feature a stainless steel frame, grey aluminum body, and an ABS recessed box. The fixtures are IK10 rated due to 10mm ultra-white tempered glass and have an IP67 rating for water and dust resistance. Operating temperature ranges from -25°C to +50°C.

Control and Power: The fixtures support DALI dimming for monocolor types and DMX512 control for RGBW models. Power options include 15W, 24W, 36W for monocolor, and 40W, 60W for RGBW. Voltage requirements are 220-240V AC for monocolor and 110-240V AC for RGBW.

Light Output and Efficiency: Monocolor models offer color temperatures of 3000K and 4000K with lumens output ranging from 895 lm to 3505 lm depending on the beam angle and power. RGBW models provide a combination of red, green, blue, and white light with lumens output ranging from 222 lm to 2570 lm. Luminaire efficiency varies from 46 lm/W to 97 lm/W.

Beam Angles: Available beam angles include 5°, 10°, 25°, 40°, and 60° for monocolor, and 25°, 40°, and 60° for RGBW models.

Installation and Control: The fixtures can be controlled via DMX-RDM and DALI systems, with a maximum of 15 uplights per DMX-RDM output. The maximum distance from the controller to the last uplight is 100 meters.

Options and Accessories: Additional options include different color temperatures and beam angles upon request. Accessories such as connection cables and terminal blocks are available for installation.

Compliance and Testing: Lumen measurements comply with UNE-EN 13032 / IES LM-79-08 testing procedures. Continuous improvements may lead to specification changes without notice.

Catalog excerpts

ADJUSTABLE UPLIGHT

Open the catalog to page 1

UPLIGHT® ADJUSTABLE ±25° TILTABLE Beam directional adjustable in-ground fixture Orientación del haz de luz ±25° sin abrir la luminaria DALI dimmable monocolor types and RGBW controllable by DMX512 Modelos monocolor dimerizables DALI y RGBW controlable con DMX512 IK10 due to 10mm Ultra White Tempered Glass IK10 gracias a su cristal super transparente de 10mm RGBW models with multichip LED (4x1) Modelos RGBW con LEDs multichip (4x1) 316 Stainless steel frame and grey aluminum body Cuerpo de aluminio color gris y aro de acero inoxidable 316 ABS recessed box and wire with H20 Stop Caja de empotrar...

Open the catalog to page 2

Color temperature conform to ANSI C78.377A. Temperatura de colorsegun normativa ANSI C78.377A.

Open the catalog to page 3

UPLIGHT® ADJUSTABLE ±25° TILTABLE MEASURES MEDIDAS Uplight Adjustable Monocolor 208 mm (8,19 in) Uplight Adjustable RGBW 208 mm (8,19 in) LIGHT DISTRIBUTION CURVES FOTOMETRÍAS Uplight adjustable Monocolor Distance Distancia Beam Ángulo Diameter Diámetro Uplight adjustable RGBW Distance Distancia Beam Ángulo Diameter Diámetro Data calculated with Uplight Adjustable Lumen measurement complies with UNE-EN 13032 / IES LM-79-08 testing procedures. Light distribution curves are available at www.mcilight.com. Due to continuous improvements and innovations, specifications may change without notice. Datos...

Open the catalog to page 4

UPLIGHT® ADJUSTABLE ±25° TILTABLE DETAILS DETALLES 316 stainless steel frame. IK10 due to 10mm Glass. Aro de acero inoxidable 316. IK10 gracias a su cristal de 10mm. ABS recessed box. Cajetín empotrar de ABS. Antiglare in-ground fixture due to reccesed optic. Luminaria antideslumbrante gracias a su óptica retranqueada. Adjustable beam angle (±25°). Haz de luz orientable (±25°). RGBW. RGBW. Wire H2O stop. Cable con H20 stop.

Open the catalog to page 5

UPLIGHT® ADJUSTABLE ±25° TILTABLE DALI (MONOCOLOR) & DMX-RDM (RGBW) CONNECTIONS CONEXIONES DALI (MONOCOLOR) Y DMX-RDM (RGBW) MORE THAN 15 UPLIGHT ADJ. WITH DMX-RDM. PARA MÁS DE 15 UPLIGHT ADJ. CON DMX-RDM. UP TO 15 UPLIGHT ADJ. WITH DMX-RDM & DALI HASTA 15 UPLIGHT ADJ. CON DMX-RDM & DALI. DALI MONOCOLOR MORE THAN 15 UPLIGHT ADJ. WITH DMX-RDM. PARA MÁS DE 15 UPLIGHT ADJ. CON DMX-RDM. UP TO 15 UPLIGHT ADJ. WITH DMX-RDM & DALI. PARA MENOS DE 15 UPLIGHT ADJ. CON DMX-RDM Y DALI. Maximum 15 Uplight adj. per DMX-RDM output. Maximum 100 m from controller to the amplifier. Maximum 100 m from amplifier...

Open the catalog to page 6

REFERENCIAS OPCIONES ANGLE ANGULO Also available on request in : Monochrome: 2700K,3500K and 5000K RGBW: White 2700K,4000K and 5000K Tambien disponible bajo demanda en: Also available on request monochrome beam angle 20°,300,100x22° and Tambien disponible bajo demanda opticas para monocolor 20°, 30°, 100x22xy 200x60x. The honeycomb must be ordered together with the lighting fixture. El panel de abeja debe pedirse junto con la luminaria. POWER POTENCIA 0 15W MonocoLor CONTROL CONTROL 3 MonocoLor DALI 5 RGBW DMX (ACCESSORIES REFERENCES REFERENCIAS ACCESORIOS For instaLLation DMX /DALI Para instaLacion...

Open the catalog to page 7

ADJUSTABLE UPLIGHT Datasheet Due to contiuous improvements and innovations, speciﬁcations may change without notice. Debido a continuas mejoras e innovaciones, las especiﬁcaciones pueden ser modiﬁcadas sin notiﬁcación. C/ dels Oficis, n° 25 Pol. Ind. el Regàs 08850 · Gavà Barcelona · SPAIN T. (+34) 93 630 28 00 F. (+34) 93 630 29 66 M. [email protected]

Open the catalog to page 8
