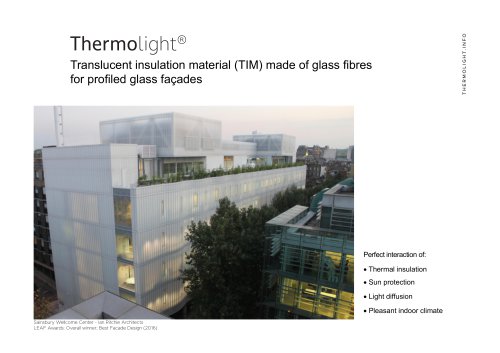

Perfect interaction of: � Thermal insulation � Sun protection � Light diffusion � Pleasant indoor climate Sainsbury Wellcome Center - Ian Ritchie Architects LEAF Awards: Overall winner; Best Facade Design (2016) Translucent insulation material (TIM) made of glass fibres for profiled glass fa

Translucent Insulation Material (TIM) Optimisation of profiled glass façades Already industrial glazing (U-profiled glass) is no longer used for business and industrial buildings only, but has also arrived in high profile and modern architectural projects. Thermolight specialises in the development and production of translucent insulation material (TIM) for profiled glass and accessories. Double or multi-layered U-profiled glass is the ideal construction element to build aesthetic sashless facades and windows. In comparison to postand-beam-constructions U-profiled glass can be used to fill window...

Why Thermolight? • Outstanding thermal insulation combined with first-class sun protection • Unique light diffusion • Pleasant feel-good room climate With the translucent thermal insulation insert made of specially developed glass fibres, planners can economically adapt Sports hall Görlinger Zentrum - Gebäudewirtschaft profiled glass façades to meet modern requirements for indoor climate, lighting Sainsbury Wellcome Center - Ian Ritchie Architects English National Ballet - Glenn Howells Architects RIBA Awards: RIBA London, Building of the Year 2021 With increased requirements for solar shading,...

Open School Cologne - Hausmann Architec-

English National Ballet - Glenn Howells Architects

Winter Visual Arts Center Long term experience Renowned architects such as Steven Holl rely on the combination of profiled glass and Facades with translucent insulation material (TIM) have been translucent thermal insulation. successfully installed for almost 20 years. Due to its material properties, Thermolight® adapts ideally and flexibly to the dimensional tolerances of the profiled glass in accordance with EN. When correctly dimensioned and installed, there are no visible joints between the glass flange and Thermolight®. Likewise, heat cracks cannot occur on the translucent thermal insulation,...

TIM Standard constructions T I M I N D O U B L E G L A Z E D L I N I TPROFILED GLASS The standard construction for simple thermally insulated LINIT glass façades The solution for LINIT façades with improved thermal insulation TWO TIMES TIM IN DOUBLE G L A Z E D L I N I T- P R O F I L E D G L A S S FLANGE ON FLANGE TWO TIMES TIM IN TRIPLE G L A Z E D L I N I T- P R O F I L E D G L A S S FLANGE ON FLANGE TWO TIMES TIM IN DOUBLE G L A Z E D L I N I T- P R O F I L E D G L A S S FLANGES OFFSET The solution for LINIT façades with highly improved thermal insulation.

LAMBERTS LINIT Outer shell a) Standard green glass melt: LINIT 60/7 standard LINIT 60/7 S (sandblasted) LINIT 60/7 TCH intensive white (color) b) Low iron glass melt: LINIT 60/7 low iron LINIT 60/7 low iron S LINIT 60/7 low iron S LINIT 60/7 low iron TCH L1 (color) LINIT 60/7 low iron TCH intensive white LAMBERTS LINIT Outer shell Thermolight 100 Thermolight 100 Thermolight 100 Thermolight 100 Thermolight 100 Thermolight 100 Thermolight 100 Thermolight 100 Thermolight 100 Thermolight 100 LINIT 60/7 standard LINIT 60/7 standard LINIT 60/7 S (sandblasted) LINIT 60/7 standard LINIT 60/7 standard...

4. TRIPLE-GLAZED INSTALLATION METHOD LAMBERTS' LINIT WITH TWO THERMOLIGHT 100 (SERIES 161) - FLANGE ON FLANGE LAMBERTS LINIT Thermolight Thermolight Outer shell Translucent Translucent insulation material Insulation material LAMBERTS LINIT Inner shell TIM TIM U-Value Visible I g-Value (tested HFB according to EN 1946-4, (tested according to a) Standard green glass melt: LINIT 60/7 standard LINIT 60/7 S (sandblasted) LINIT 60/7 TCH intensive white (color) b) Low iron glass melt: LINIT 60/7 low iron LINIT 60/7 low iron S LINIT 60/7 low iron S LINIT 60/7 low iron TCH L1 (color) LINIT 60/7 low iron...

Profiled glass meets the requirements of fire protection class A1, Thermolight®100 meets the requirements of fire protection class B1. outside Thermolight® LAMBERTS LINIT Thermolight ThermolightOuter shell Translucent Translucentinsulation material insulation material LAMBERTS LINIT Inner shell inside TIM TIM U-Value (in W/m2K) (tested HFB according to EN 1946-4, DIN EN ISO 8990 and 12567-1) Visible g-Value light transmission STC Value Rw (in dB(A)) (esti mated) Quality assurance Thermolight® products are distributed exclusively with officially tested profiled glass products certified by Thermolight...

Liability and Guarantee Our liability and guarantee are in line exclusively with the current edition of our “general terms and conditions of business. Current versions are available on our website, www.thermolight.info. It is apparent from this, that all product information transmitted in this brochure or in any other form by employees of Thermolight GmbH & Co. KG (technical specifications, product tests, specialist reports, type static calculations, application diagrams, tendering texts etc.) constitutes only voluntary detail based on our current prevalent knowledge (there is a possibility of...

Thermolight GmbH & Co. KG Mühlweg 2, 95632 Wunsiedel, Germany Telephone +49 (0) 9233 77544 0 CONTACT US www.thermolight.info [email protected] Swiss Embassy Residence - Steven Holl Architects
