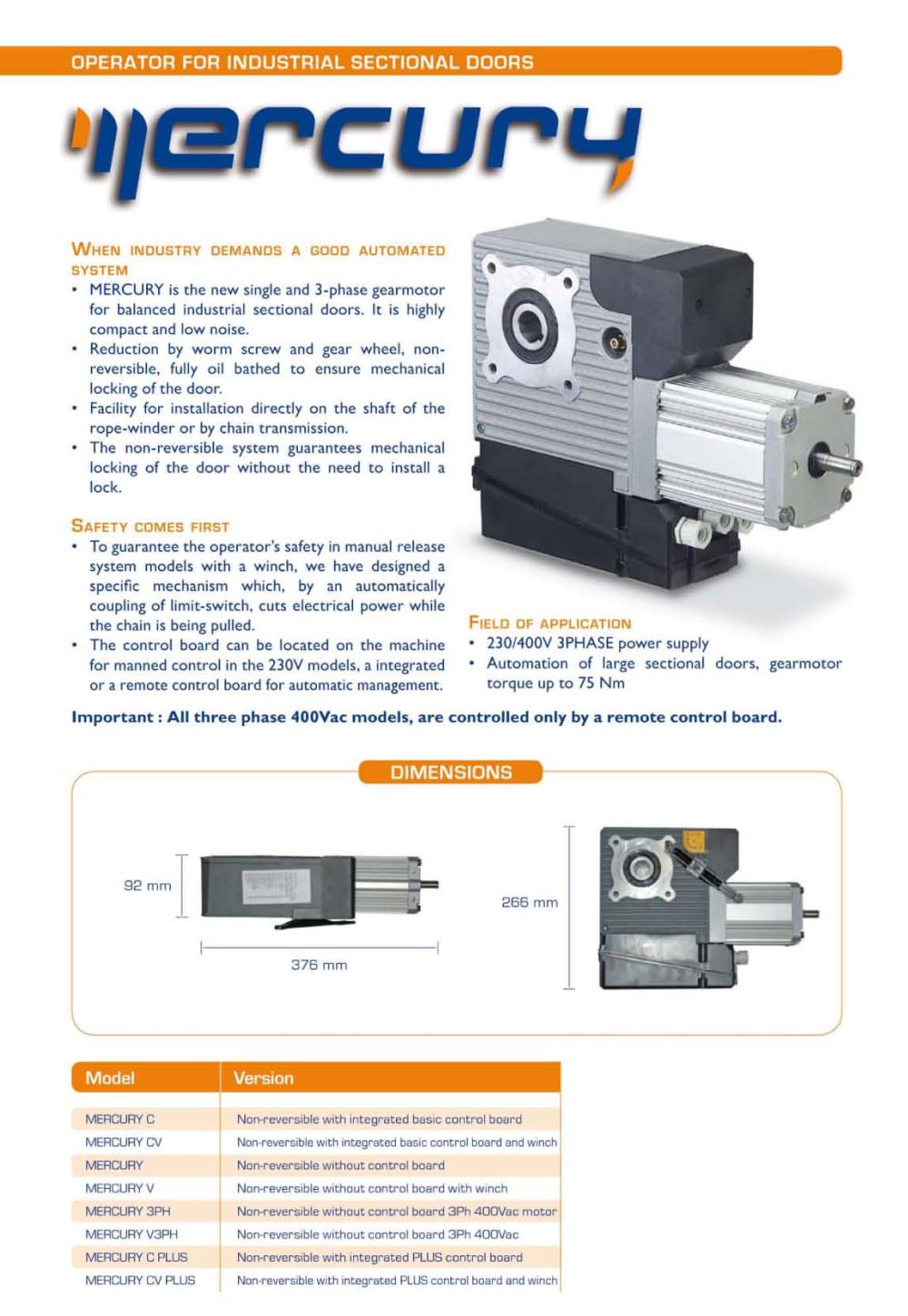

□PERATOR FOR INDUSTRIAL SECTIONAL DOORS iiercuru WHEN INDUSTRY DEMANDS A GOOD AUTOMATED SYSTEM MERCURY is the new single and 3-phase gearmotor for balanced industrial sectional doors. It is highly compact and low noise. Օ Rduction by worm screw and gear wheel, non-reversible. fully oil bathed to ensure mechanical locking of the door. Facility for installation directly on the shaft of the rope-winder or by chain transmission. 镕 The non-reversible System guarantees mechanical locking of the door without the need to install a lock. SAFETY COMES FIRST To guarantee the operator's safety in manual release System models with a winch, we have designed a spթcifie mechanism which, by an automatically coupling of limit-switch, cuts electrical power while the chain is being pulled. The control board can be located on the machine for manned control in the 230V models. a integrated or a remote control board for automatic management. FlELD OF APPLICATION Օ 230/400V 3PHASE power supply Automation of large sectional doors, gearmotor torque up to 75 Nm Important : AH three phase 400Vac models, are controlled only by a remote control board. DIMENSIONS 92 mm 266 mm 376 mm [ Model Version MERCURY C MERCURY CV Non-reversible with integrated basic control board Non-reversible with integrated basic control board and winch MERCURY Non-reversible without control board MERCURY V Non-reversible without control board with winch MERCURY 3PH Non-reversible without control board 3Ph 400Vac motor MERCURY V3PH Non-reversible without control board 3Ph 400Vac MERCURY C PLUS MERCURY CV PLUS Non-reversible with integrated PLUS control board Non-reversible with integrated PLUS control board and winch

Technical spcifications Integrated control board PLUS control board MERCURY C - MERCURY CV MERCURY C PLUS - MERCURY CV PLUS Power supply [Vac] 230 Absorbed power (W) - 4 Max. motor load (W) 800 Two protective fuses 0,25 A transf., e 6,3 A motor F1=6.3°- 250V F2=self-repairing □perating ambient temprature -20rjC +55°C Opening and closing buttons Interlocked - Low tension controls 24 Vdc - Function logics B/C, B, C, EP, AP, P Work time - Self-lerning (0-10 min steps from 2.5 sec] Pause time - Self-lerning (0-5 min steps from 1.5 sec] Terminal board inputs - Open, Close, Stop, Limit-switch,...

□RIVE TRANSMISSION DEFINITION ON MERCURY BASED ON DRUM 0 AND DOOR WEIGHT MONOPHASE 230Vac THREE PHASE 400Vac DRUM TYPE Max. drum 0 |mm] Max door weight[Kg] Necessary gross torque (Nm) Balance [%] Net torque [Nm] RECOMMENDED TRANSMISSION M-102 2400 124 241 146,4 85 22,0 Direct M-102 3125 127 340 211.6 85 31,7 Direct M-102 3965 125 500 306.3 85 45.9 Transmission ratio 1:1,5 Direct M-134 5500 152 680 506.5 85 76.0 Transmission ratio 1:2 Transmission ratio 1:1.5 M-203 9750 230 1000 1127,0 85 169.1 Net possible M-203 9750 ALB. 31.75 230 1000 1127.0 85 169,1 Not possible M-102 1375 153 250 187,4...

The dtails which make the diffrence The manual release System, in models with winch, in order to grant safety of the actuator, it has been planned a mechanism that through an automatic clutch limit-switch prohibits the power supply during the phase of chain pull. There is the possibility of having a integrated control board for manned management pr驩sent in 230V models or integrated or remote control board for an automatic management.
