Roto Eifel

Product catalog summary

Description: The Roto Eifel Wind Stop is designed for vertical sealing in the rebate area, applicable to main doors and balcony doors. Dimensions are available in the Roto Eifel catalogue (CTL_87).

Material Composition: The product is made from polypropylene (PP) with 20% fibreglass (FG) and thermoplastic elastomer (TPE).

Material Properties:

Modulus of Elasticity: 2900 MPa (ISO 178)
Density: PP: 1.04 g/cm³, TPE: 0.97 g/cm³ (ISO 1183)
Hardness: 78 Shore A (ISO 868)
Permissible Yield Stress: 33 MPa (ISO 527-2)
Tensile Strength: 16.6 MPa (ISO 37)
Temperature Range: Min: 0 °C (PP), -30 °C (TPE); Max: 100 °C (PP), 125 °C (TPE)
Compressive Load: 80 MPa (ISO 2039-1)
Thermal Conductivity: 0.25 W/mK (ISO 22007)
Halogen-Free: Yes
Resistance to Plasticisers: Yes
Toxicity in Fires: Likely formation of CO/CO₂
Fire Behaviour: HB (UL 94)
Construction Material Class: Class B 2 (DIN 4102-1)

Additional Information: The product is REACH compliant, and further documentation is available upon request. Note that specifications are subject to change.

Catalog excerpts

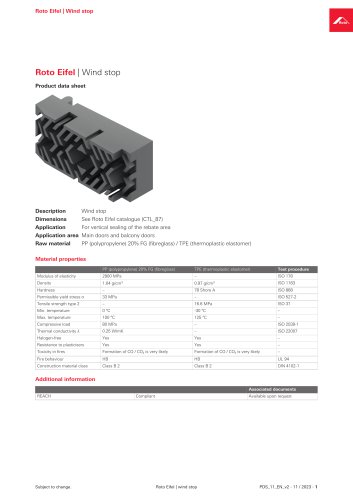

Roto Eifel | Wind stop Roto Eifel | Wind stop Product data sheet Description Wind stop Dimensions See Roto Eifel catalogue (CTL_87) Application For vertical sealing of the rebate area Application area Main doors and balcony doors Raw material PP (polypropylene) 20% FG (fibreglass) / TPE (thermoplastic elastomer) Material properties Roto Eifel | wind stop

Open the catalog to page 1

All Frank Roto DST GmbH catalogs and technical brochures

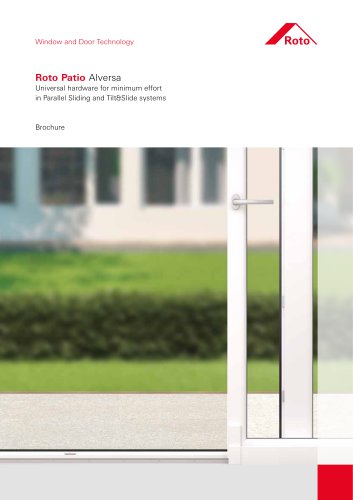

Roto Patio Alversa
8 Pages

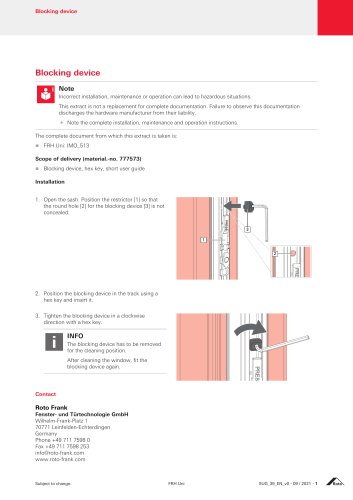

Roto FRH
1 Page

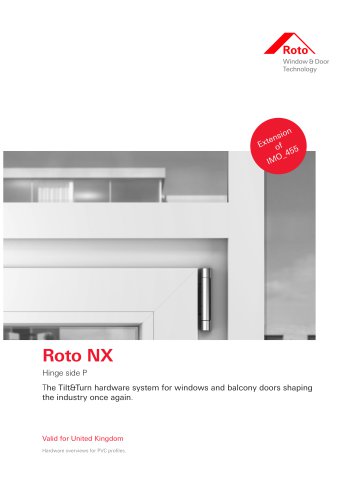

Roto NX
