Product catalog summary
Overview: The document describes a custom-made hydrotherapy pool constructed from vinylester, designed for reeducation and therapeutic purposes. It highlights the pool's flexibility in installation, hygienic properties, and unique features that enhance user comfort and safety.
Specifications: The pool is made from vinylester, a material known for its smooth, non-skid surface and resistance to chlorinated hot water. It offers thermal and electrical insulation, ensuring a comfortable touch and ease of maintenance. The pool can be embedded in the ground or raised, with a self-supporting structure that eliminates the need for concrete joints, reducing the risk of damage.
Design and Construction: The pool features a unique wall section with overflow chutes or skimmers, constructed from reinforced vinylester resin. It is designed to be independent of the building structure, preventing fissures and ensuring durability. The pool's self-supporting walls act as heat insulators, maintaining a constant water temperature and reducing energy costs.
Installation and Maintenance: The pool is installed on a special foam mattress to isolate it from ground movements, ensuring long-term stability. The design allows for easy access to internal equipment and the addition of accessories like nozzles and massage jets, making it an adaptable and evolutionary concept.
Technical Data: The pool can be custom-made up to 9 meters in length, with varying depths and configurations. It is constructed in one piece or assembled elements, depending on accessibility constraints. The pool is equipped with overflow chutes or skimmers and is designed to withstand high temperatures and chlorination levels.
Conclusion: The vinylester hydrotherapy pool by REVAL offers a reliable, hygienic, and energy-efficient solution for therapeutic applications, backed by a decennial guarantee on its composite structure.
See more

Catalog excerpts

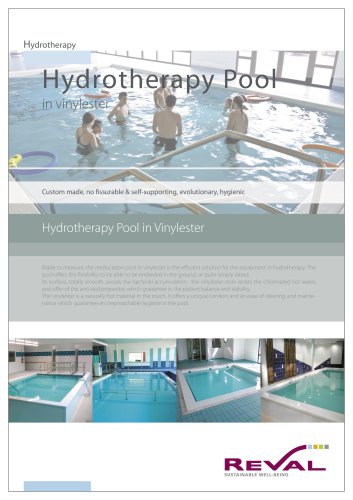

REVAL 3-1

Hydrotherapy Pool in vinylester Custom made, no fissurable & self-supporting, evolutionary, hygienic Hydrotherapy Pool in Vinylester Made to measure, the reeducation pool in vinylester is the efficient solution for the equipment in hydrotherapy. The pool offers the flexibility to be able to be embeded in the ground, or quite simply raised. Its surface, totally smooth, avoids the bacterial accumulation: the vinylester resin resists the chlorinated hot water, and offer of the anti-skid properties which guarantee in the patient balance and stability. The vinylester is a naturally hot material in the touch, it offers a unique comfort and an ease of cleaning and maintenance which guarantee an irreproachable hygiene in

 Open the catalog to page 1
REVAL 3-2

Hydrotherapy Pool in Vinylester UNIQUE FEATURES : • With an absolutly smooth surface. • Material is non-skid in water. • Surface ''hot'' with the touch. • Thermically and electrically insulationg. • Of fast installation and evolutionary. • Simplified cleaning and maintenance. SECTION OF THE WALL OF THE BASIN : • Custom made and up to 9 meters length. • With multiple levels of depth. • Made all of a piece or in assembled elements according to constraints of accessibility. • Equipped with chutes of overflow or else skimmers. • Independent of the building and no fissurable. The reeducation pool...

 Open the catalog to page 2

All France REVAL catalogs and technical brochures

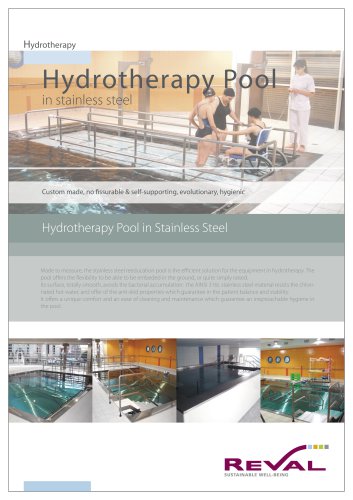

  1. REVAL 1
