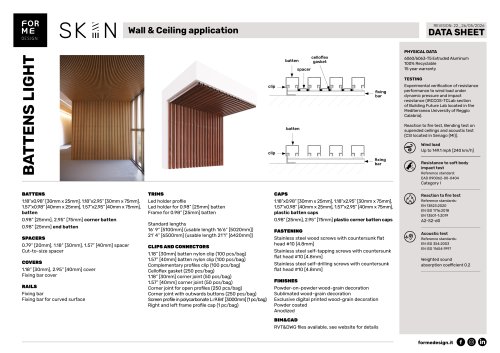

Wall & Ceiling application DATA SHEET BATTENS LIGHT PHYSICAL DATA batten celloflex gasket 6060/6063-T5 Extruded Aluminum 100% Recyclable 15 year warranty TESTING clip fixing bar Experimental verification of resistance performance to wind load under dynamic pressure and impact resistance (IRCCOS-TCLab section of Building Future Lab located in the Mediterranea University of Reggio Calabria). Reaction to fire test, Bending test on supended ceilings and acoustic test (CSI located in Senago (MI)). Resistance to soft body impact test Reference standard: EAD 090062-00-0404 BATTENS 1.18”x0.98” [30mm x 25mm], 1.18”x2.95” [30mm x 75mm], 1.57”x0.98” [40mm x 25mm], 1.57”x2.95” [40mm x 75mm], batten 0.98” [25mm], 2.95” [75mm] corner batten 0.98” [25mm] end batten SPACERS 0.79” [20mm], 1.18” [30mm], 1.57” [40mm] spacer Cut-to-size spacer COVERS 1.18” [30mm], 2.95” [40mm] cover Fixing bar cover RAILS Fixing bar Fixing bar for curved surface TRIMS Led holder profile Led holder for 0.98” [25mm] batten Frame for 0.98” [25mm] batten Standard lengths 16’ 9” [5100mm] (usable length 16’6” [5020mm]) 21’ 4” [6500mm] (usable length 21’1” [6420mm]) CLIPS AND CONNECTORS 1.18” [30mm] batten nylon clip (100 pcs/bag) 1.57” [40mm] batten nylon clip (100 pcs/bag) Complementary profiles clip (100 pcs/bag) Celloflex gasket (250 pcs/bag) 1.18” [30mm] corner joint (50 pcs/bag) 1.57” [40mm] corner joint (50 pcs/bag) Corner joint for open profiles (250 pcs/bag) Corner joint with outwards buttons (250 pcs/bag) Screen profile in polycarbonate L=9.84’ [3000mm] (1 pc/bag) Right and left frame profile cap (1 pc/bag) CAPS 1.18”x0.98” [30mm x 25mm], 1.18”x2.95” [30mm x 75mm], 1.57”x0.98” [40mm x 25mm], 1.57”x2.95” [40mm x 75mm], plastic batten caps 0.98” [25mm], 2.95” [75mm] plastic corner batten caps FASTENING Stainless steel wood screws with countersunk flat head #10 [4.8mm] Stainless steel self-tapping screws with countersunk flat head #10 [4.8mm] Stainless steel self-drilling screws with countersunk flat head #10 [4.8mm] Reaction to fire test Reference standards: EN 13823:2020 EN ISO 1716:2018 EN 13501-1:2019 A2-S2-d0 Acoustic test Reference standards: EN ISO 354:2003 EN ISO 11654:1997 Weighted sound absorption coefficient 0.2 FINISHES Powder-on-powder wood-grain decoration Sublimated wood-grain decoration Exclusive digital printed wood-grain decoration Powder coated A

DESIGN SK m N Wall & Ceiling application | Range of profile DATA SHEET BATTENS LIGHT Battens Corner battens Cut-to-size spacer

Wall & Ceiling application | Range of profile Finishing profiles BATTENS LIGHT Fixing bars DATA SHEET

BATTENS LIGHT Wall & Ceiling application | Range of profile DATA SHEET 1.18” [30 mm] batten nylon clip 1.18” [30 mm] plastic corner joint Corner joint for open profiles Corner joint with outward buttons Screen profile in polycarbonate L=9.84’ [3000 mm] Celloflex gasket

BATTENS LIGHT Wall & Ceiling application | Range of profile DATA SHEET Right and left frame profile cap 1.18” x 2.95” [30 mm x 75 mm] batten cap, EXCLUSIVE digital printed wood-grain decoration complementary profiles clip 1.18” x 0.98” [30 mm x 25 mm] batten cap, EXCLUSIVE digital printed wood-g

BATTENS LIGHT Wall & Ceiling application | Range of profile DATA SHEET Support profile for curved surfaces L=3.28‘ [1000 mm] Corner bracket kit for 1.57” x 2.95” [40 mm x 75 mm] batten 1.57” [40 mm] batten nylon clip 1.57” [40 mm] plastic corner joint Safety device for 1.18” [30 mm] batten Safety device for 1.57” [40 mm] batten

BATTENS LIGHT Wall & Ceiling application | Range of profile DATA SHEET 0.98” [25 mm] corner batten cap, RAL, EXCLUSIVE, EZY and SUBLIMATED decorations 1.57” x 0.98” [40 mm x 25 mm] batten cap, EXCLUSIVE digital printed wood-grain decoration 2.95” [75 mm] corner batten cap, RAL, EXCLUSIVE, EZY and SUBLIMATED decorations 1.57” x 2.95” [40 mm x 75 mm] batten cap, EXCLUSIVE digital printed wood-g
